Selecting the right industrial panel PC for modern smart manufacturing and enterprise automation requires balancing processing power, thermal reliability, and physical durability. Industrial environments demand hardware that can withstand continuous operation, voltage fluctuations, and harsh ambient temperatures without performance degradation.

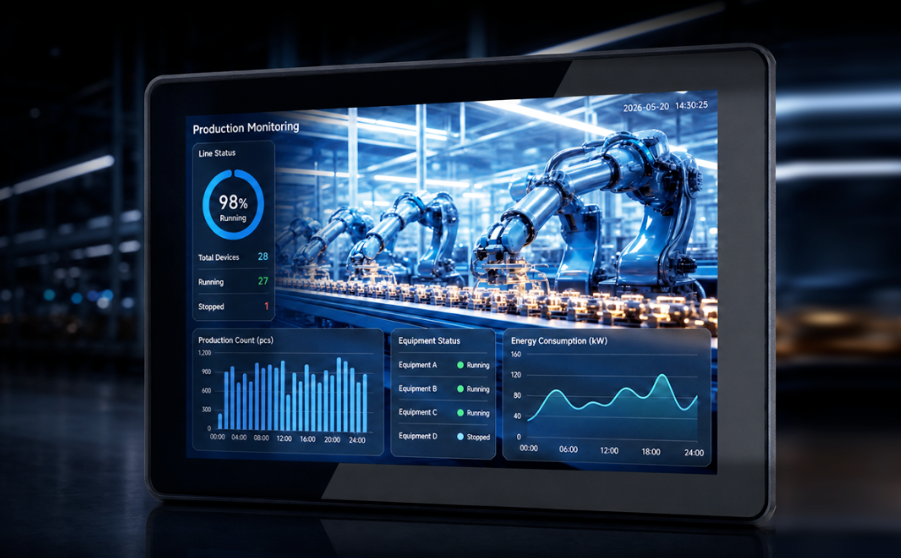

To meet these demanding deployment requirements, ONERugged has launched its next-generation P-Series industrial panel PCs, featuring three distinct models tailored for high-performance computing, balanced general use, and flexible Android environments.
The new P-Series introduces a modular approach to industrial computing, categorized into three distinct computing tiers: P10A (flagship performance), P10J (balanced general-purpose), and P10R (open Android ecosystem).

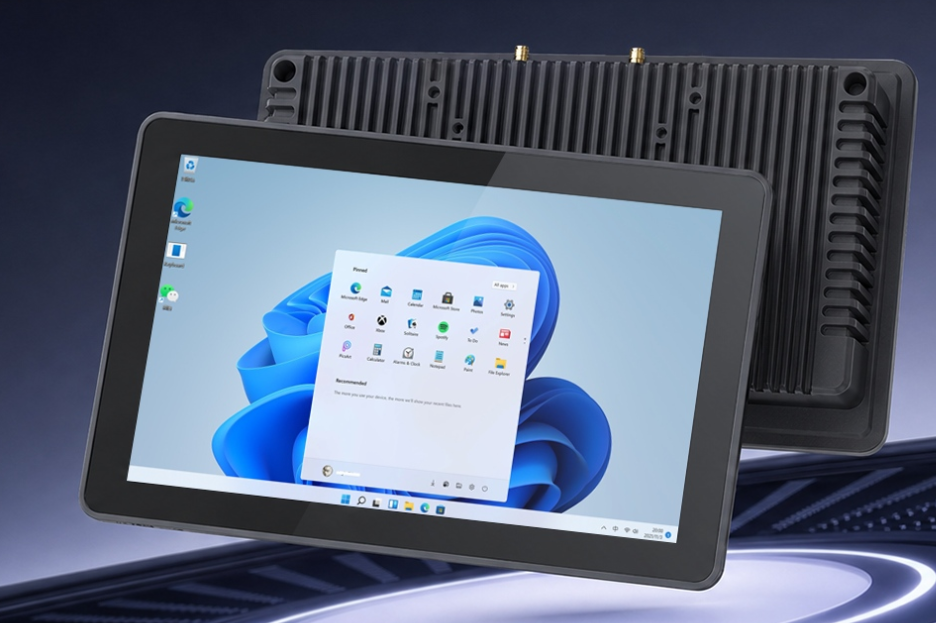

Engineered for compute-heavy workloads such as multi-tasking HMI (Human-Machine Interface) systems, high-speed machine vision, and complex production monitoring, the P10A is powered by the Intel® Alder Lake platform (Intel® Core™ i5-1235U). Featuring 10 cores, 12 threads, and a maximum turbo frequency of 4.4 GHz, it delivers desktop-grade processing capabilities in a rugged, fanless form factor.
Designed for cost-effective automation and standard industrial control panels, the P10J utilizes the Intel® Jasper Lake platform (Intel® N5100). With a quad-core, four-thread architecture reaching up to 2.8 GHz, it provides optimal power efficiency while maintaining reliable performance for everyday supervisory control and data acquisition (SCADA) tasks.
For operations standardizing on mobile or containerized software ecosystems, the P10R runs on a Rockchip RK3568 quad-core Cortex-A55 CPU. Equipped with a 1 TOPS NPU for lightweight AI acceleration, it offers an open, highly flexible Android deployment option for smart kiosks and connected facility terminals.
| Feature / Specification | ONERugged P10A | ONERugged P10J | ONERugged P10R |
| Processor (CPU) | Intel® Core™ i5-1235U (up to 4.4 GHz) | Intel® N5100 (up to 2.8 GHz) | Rockchip RK3568 Cortex-A55 (up to 2.0 GHz) |
| AI Processing Unit | N/A | N/A | 1 TOPS NPU |
| Memory (RAM) | 16 GB LPDDR4x | 8 GB LPDDR4x | 4 GB LPDDR4x |
| Storage Options | 128 GB / 256 GB / 512 GB SSD | 128 GB / 256 GB / 512 GB SSD | 64 GB eMMC (Micro SD expandable to 512 GB) |
| Display Panel | 10.1-inch LCD (800 × 1280 resolution, 700 nits, 10-point capacitive touch) | ||
| Front Panel Protection | IP65 dust-tight and water-resistant | ||
| Wireless Connectivity | Wi-Fi 6, Bluetooth 5.2 | Wi-Fi 5, Bluetooth 5.1 | Wi-Fi 5, Bluetooth 5.0 |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) | -20°C to 60°C (-4°F to 140°F) | -20°C to 60°C (-4°F to 140°F) |
Visibility in factory settings can be challenging due to overhead lighting or fluctuating sunlight. The P-Series features a 10.1-inch LCD display with an 800 × 1280 resolution and a high brightness level of 700 nits. Backed by 10-point capacitive touch, operators can easily interact with complex SCADA dashboards and precision control panels even when wearing industrial gloves.
Industrial automation hardware requires seamless communication with legacy machinery, sensors, and controllers. The P-Series provides a comprehensive array of standard ports without requiring bulky expansion cards:
COM Ports: Dual RS-232/RS-485 serial ports (COM1, COM2) for legacy device connectivity.
Network & USB: Dual Gigabit Ethernet ports (LAN1, LAN2) and four USB 3.0 ports.
Audio & Video: Standard HDMI output alongside dedicated microphone input and earphone jacks.
Factory floors expose electronics to wide temperature swings, electrical noise, and constant vibration. The P-Series is built for uninterrupted 7×24 operation featuring:
Wide Temperature Range: Operates reliably from -20°C to 60°C.
Electrical Protections: Wide voltage input (12V to 24V DC) paired with built-in ESD protection, EOS protection, and Over-Voltage Protection (OVP).
Thermal Management: Fully sealed, fanless aluminum enclosure that prevents dust ingress and dampens mechanical shock.
To simplify integration into existing plant infrastructure, the P-Series supports multiple mounting methodologies:
VESA Mounting: Standard 75x75mm and 100x100mm patterns.
Embedded & Panel Mount: Includes 4 sets of hook assemblies for secure cabinet integration.
Wall & Arm Mounting: Accommodates swivel arms and wall brackets for ergonomic operator positioning.

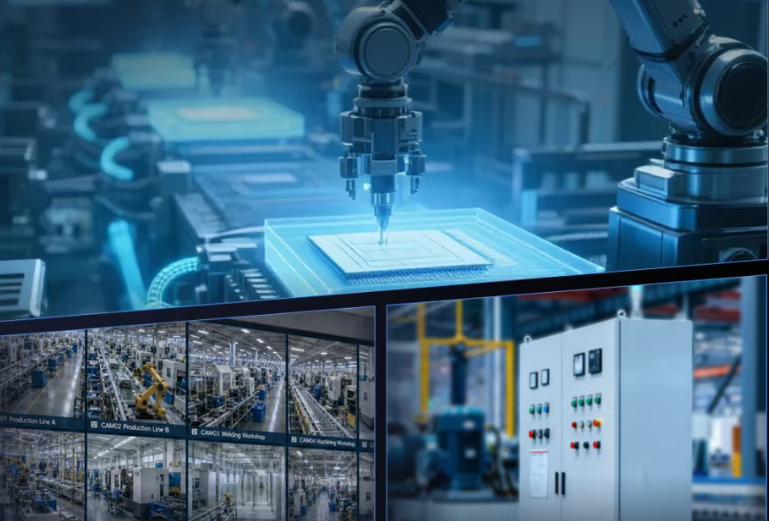

The versatility of the ONERugged P-Series allows a single hardware platform to adapt across diverse industrial verticals:
Production Line Automation: Acting as edge HMI nodes for real-time robotic cell control and assembly tracking.
Smart Security Command Centers: Serving as multi-feed monitoring displays for facility oversight.
Industrial Equipment Control: Managing heavy machinery logic and electrical cabinet parameters.
Self-Service Terminals: Powering interactive public kiosks and automated check-in points.
Fleet Dispatch Management: Providing vehicle-mounted computing for logistics and material handling equipment.
Yes. The P-Series features a high-brightness 700-nit display that ensures readability under bright indoor factory lighting or shaded outdoor shelter environments. However, for direct, unshaded outdoor sunlight, custom high-nit optical bonding configurations can be discussed with our engineering team.
The Intel-powered P10A and P10J models natively support Windows 10/11 and mainstream Linux distributions, making them ideal for standard enterprise software stacks, SCADA packages, and legacy x86 industrial applications.
By eliminating mechanical cooling fans, the P-Series removes a primary point of failure in dusty or particulate-heavy environments. Heat is passively dissipated through the ribbed aluminum housing, preventing dust, metal shavings, and moisture from entering the core electronics.
Yes. ONERugged provides flexible OEM/ODM customization services for enterprise deployments, allowing clients to modify serial port configurations, storage capacities, or mounting hardware to match specific project requirements.
Upgrade your industrial operations with reliable, high-performance computing hardware designed to thrive in the harshest environments. Contact the ONERugged team today to request a product catalog, evaluate evaluation units, or discuss custom deployment solutions for your facility.
