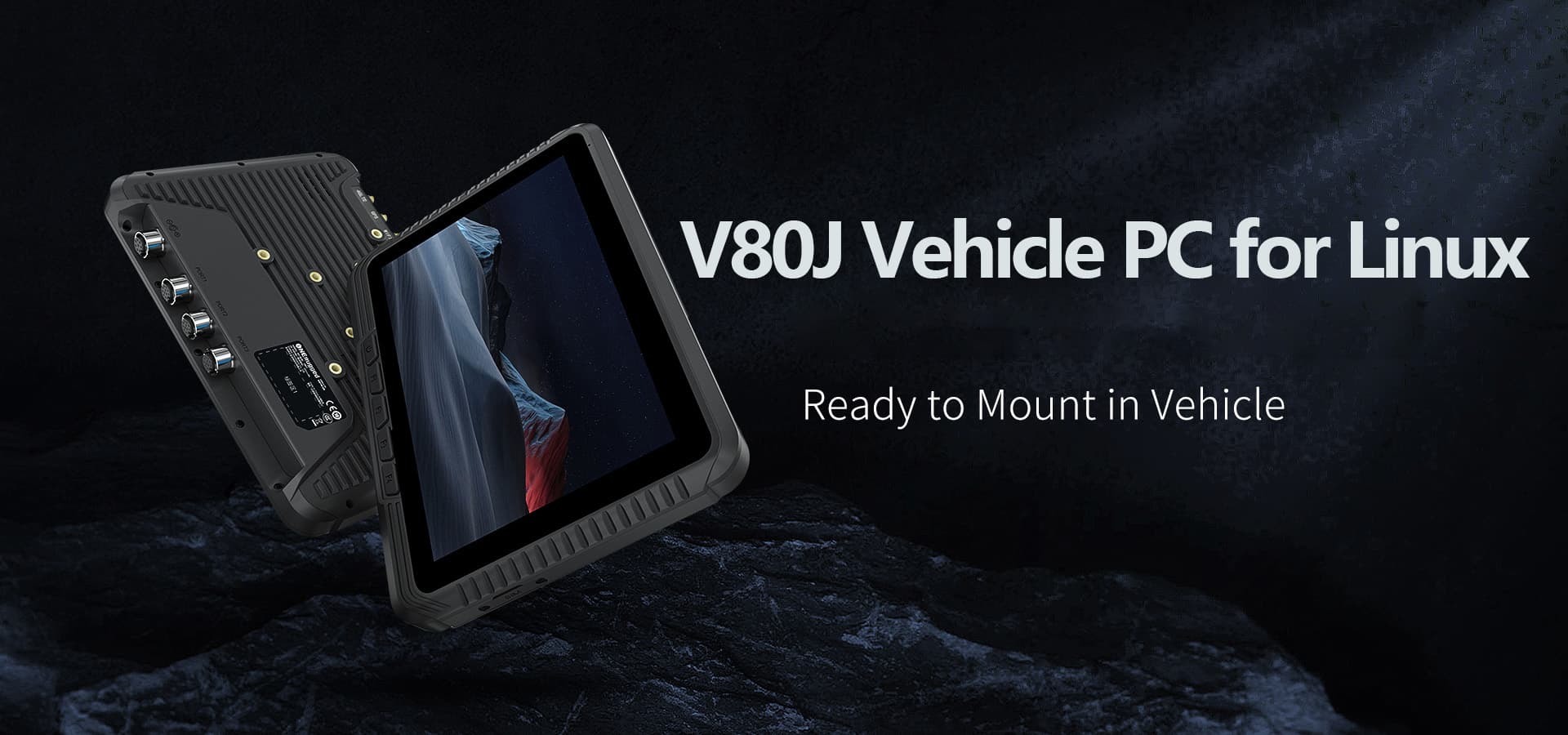

V80J is a 8-inch vehicle pc, which is specially designed for in-vehicle applications. Equipped with Intel® 11th Gen Celeron® N5100 processor, it is more powerful, and its integrated Wi-Fi-5, 4G LTE and GPS functions support available vehicle mushroom antennas, the coverage area is larger and the signal reception is better. Moreover, it has passed the dustproof, waterproof, anti-vibration and wide temperature tests, and with the M12 aviation plugs, wide voltage module, VESA and RAM mounting methods, etc., it can keep stable at all times and can meet all vehicle types, like forklifts, cranes, trucks.
Equipped with Quad-core Intel JASPER LAKE N5100 processor and Windows 10 operating system, up to 8GB+128GB high-speed capacity

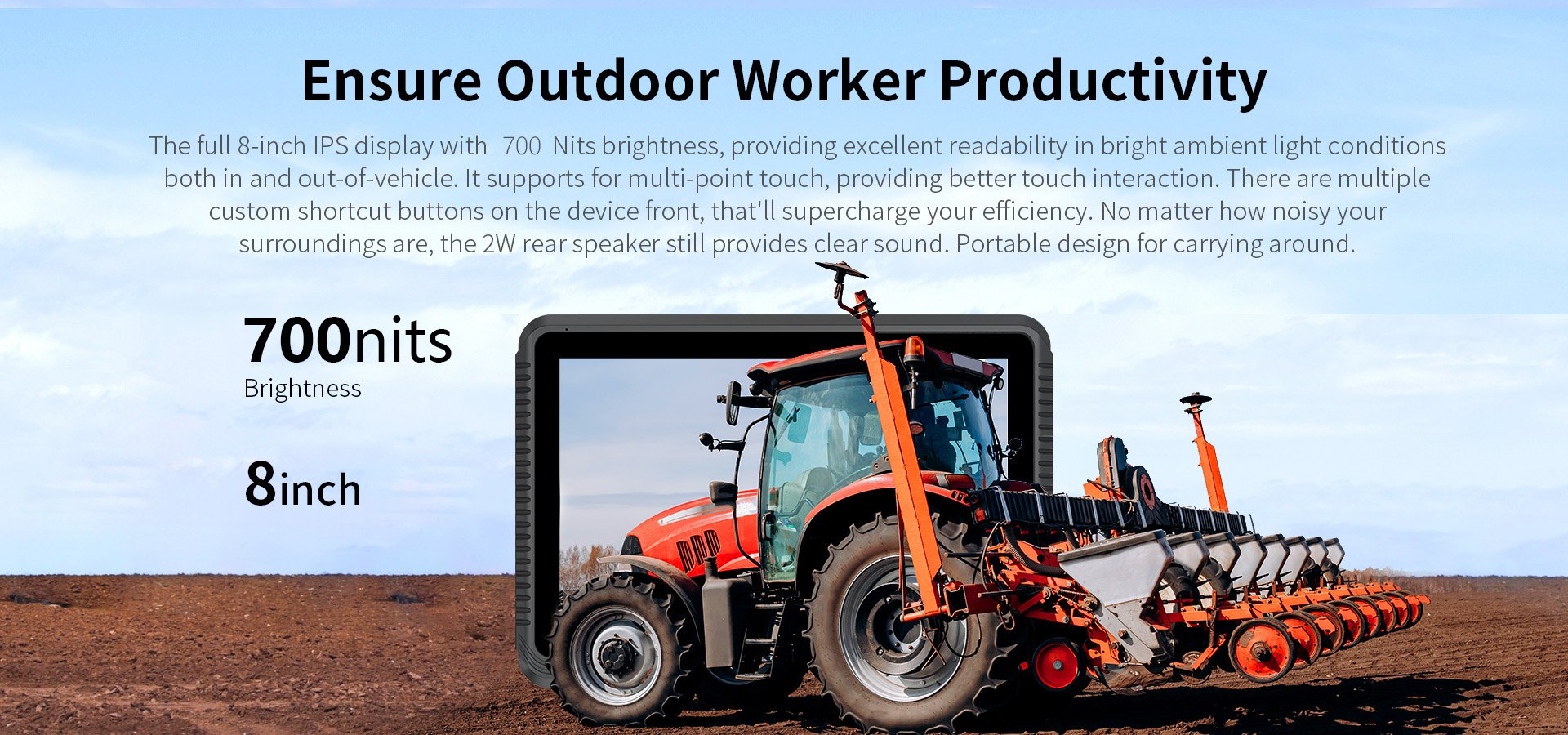

8-inch screen with 1000-Nits high brightness display, multiple-point touch panel and customized keys , ensuring outdoor worker visibility

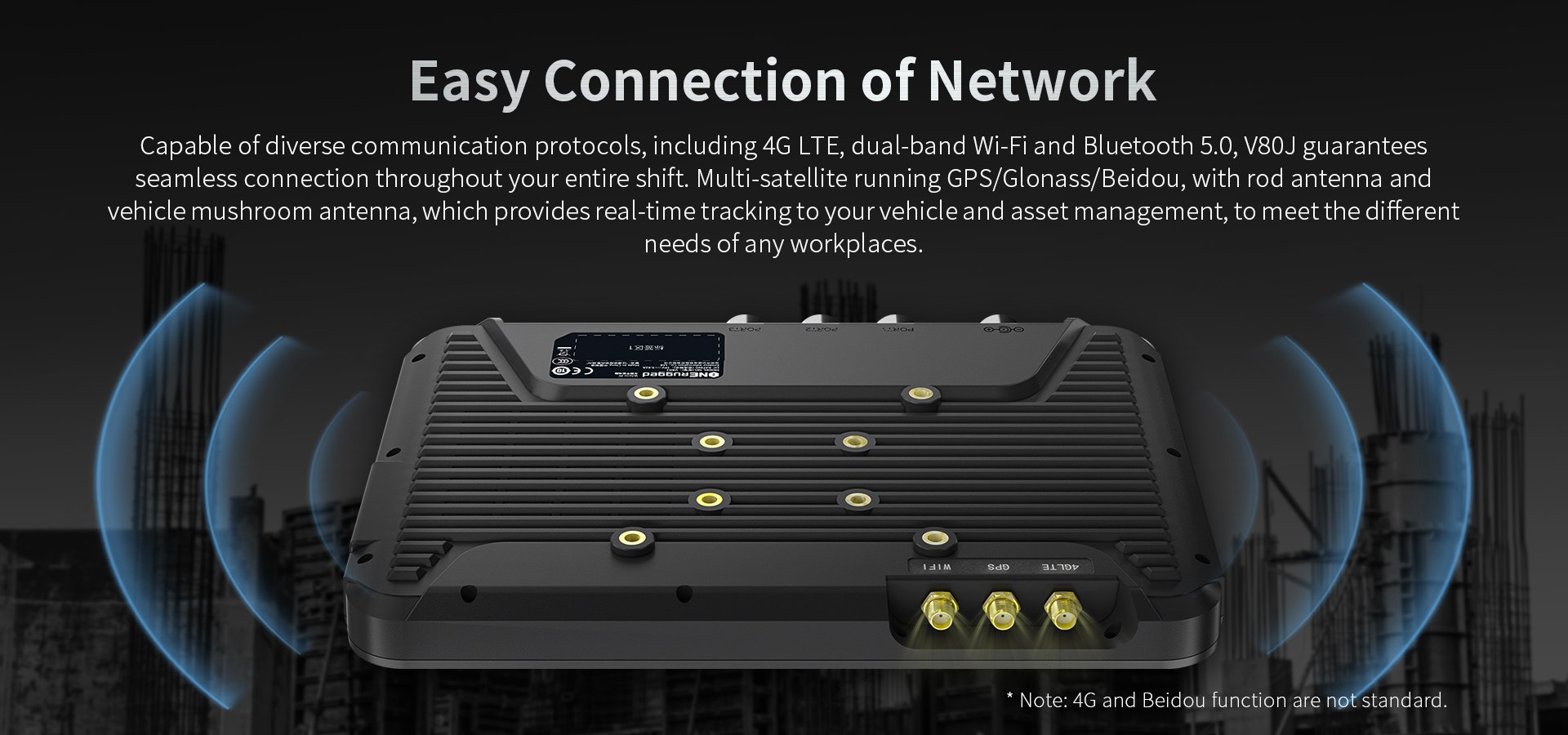

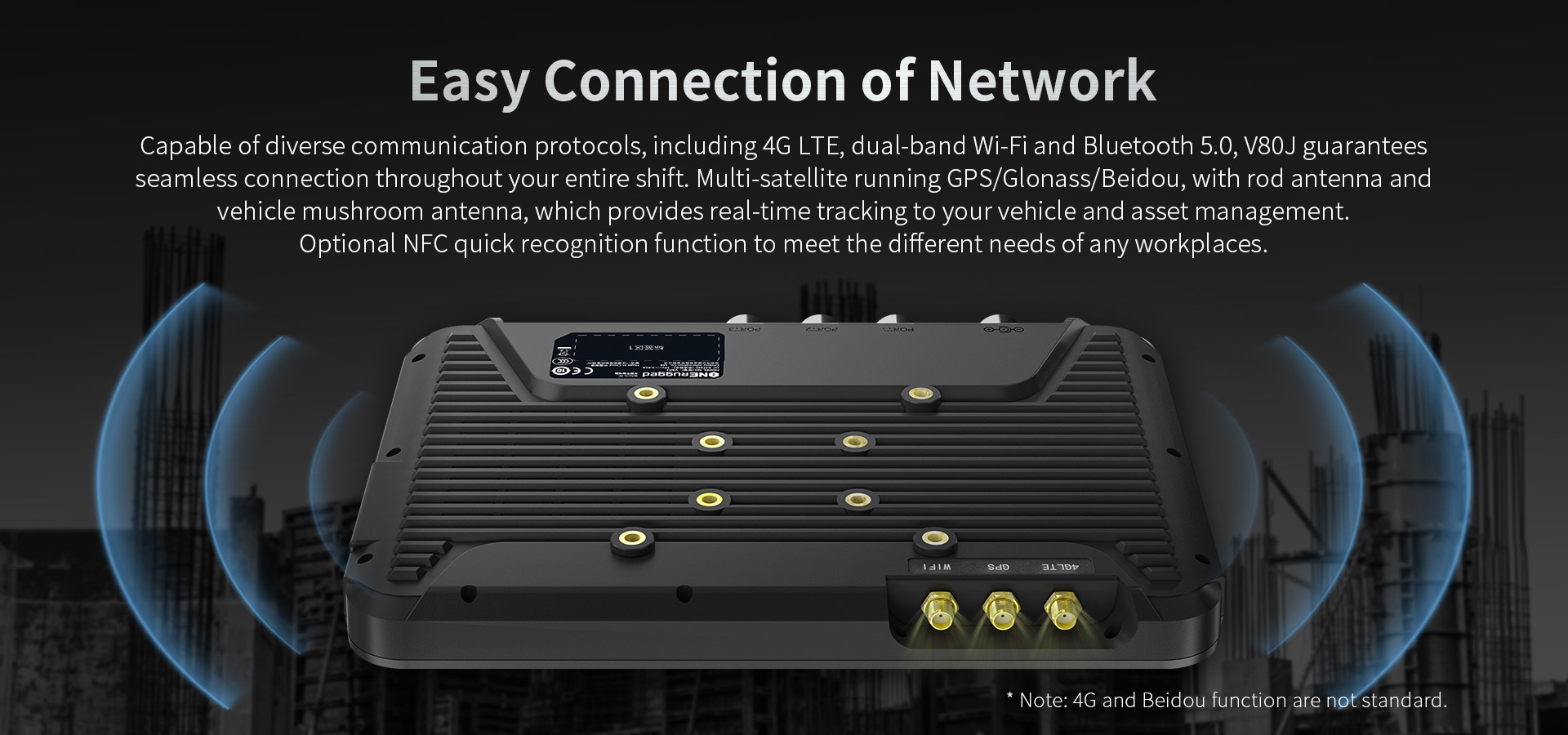

4G LTE, dual-band Wi-Fi, Bluetooth 5.0 and GPS/Glonass/Beidou functions, with available vehicle mushroom antenna

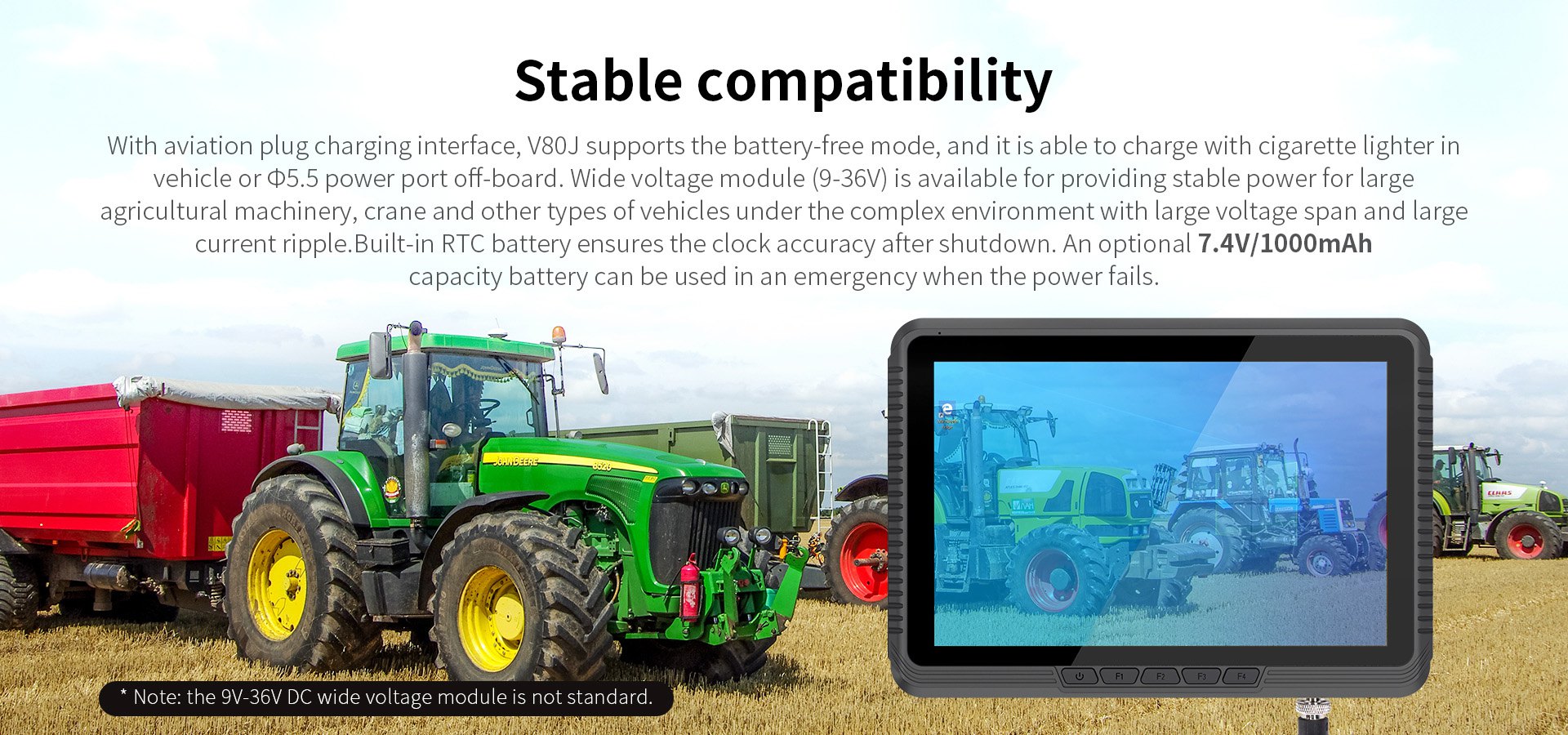

Aviation plug charging interface, switchable for cigarette lighter interface or Φ5.5 power port, and a 9V-36V DC wide voltage module is optional
Supports the battery-free mode, another optional 7.4V/1000mAh capacity battery

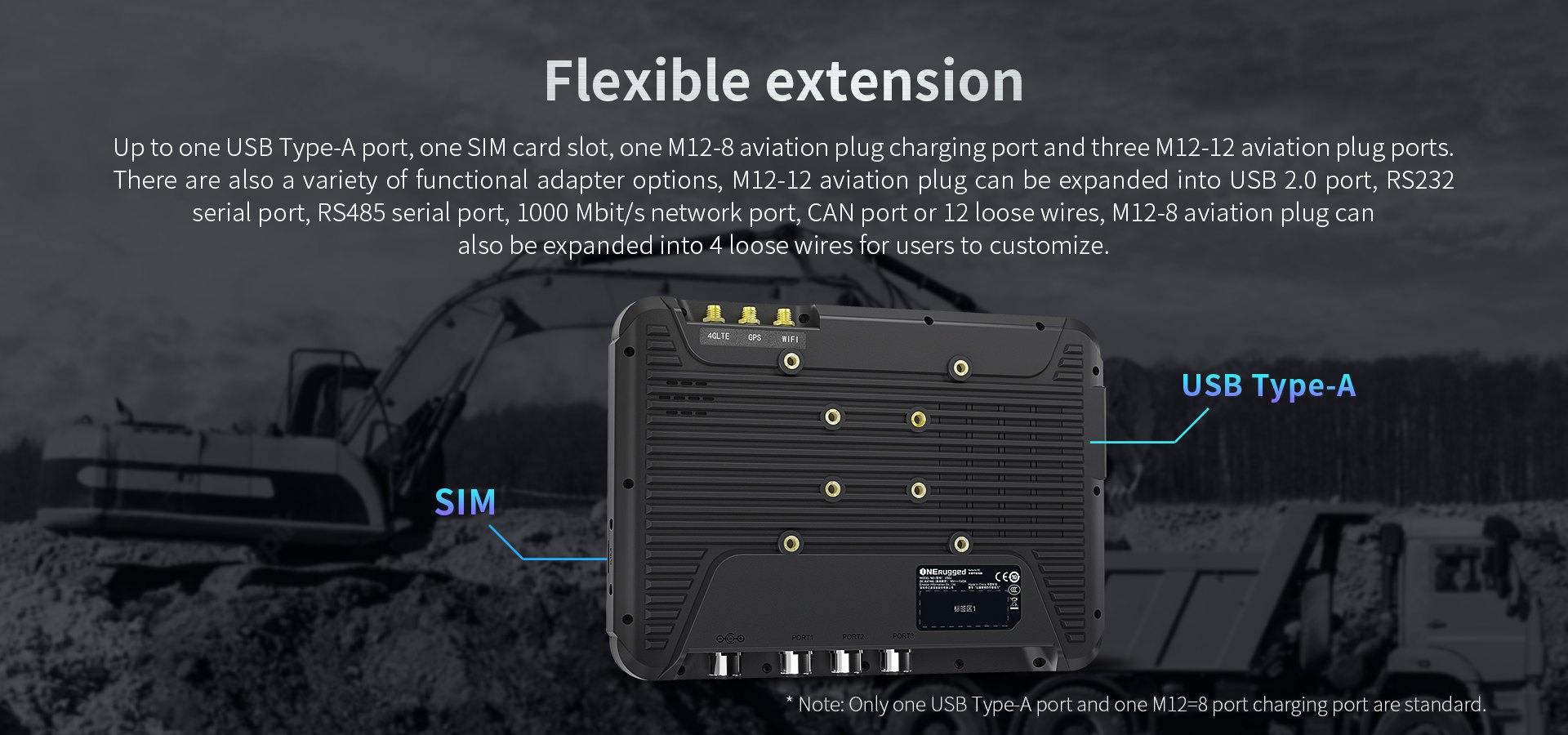

Available multiple aviation plug interfaces, and also supports USB/DB9/LAN/CAN and other interface extensions

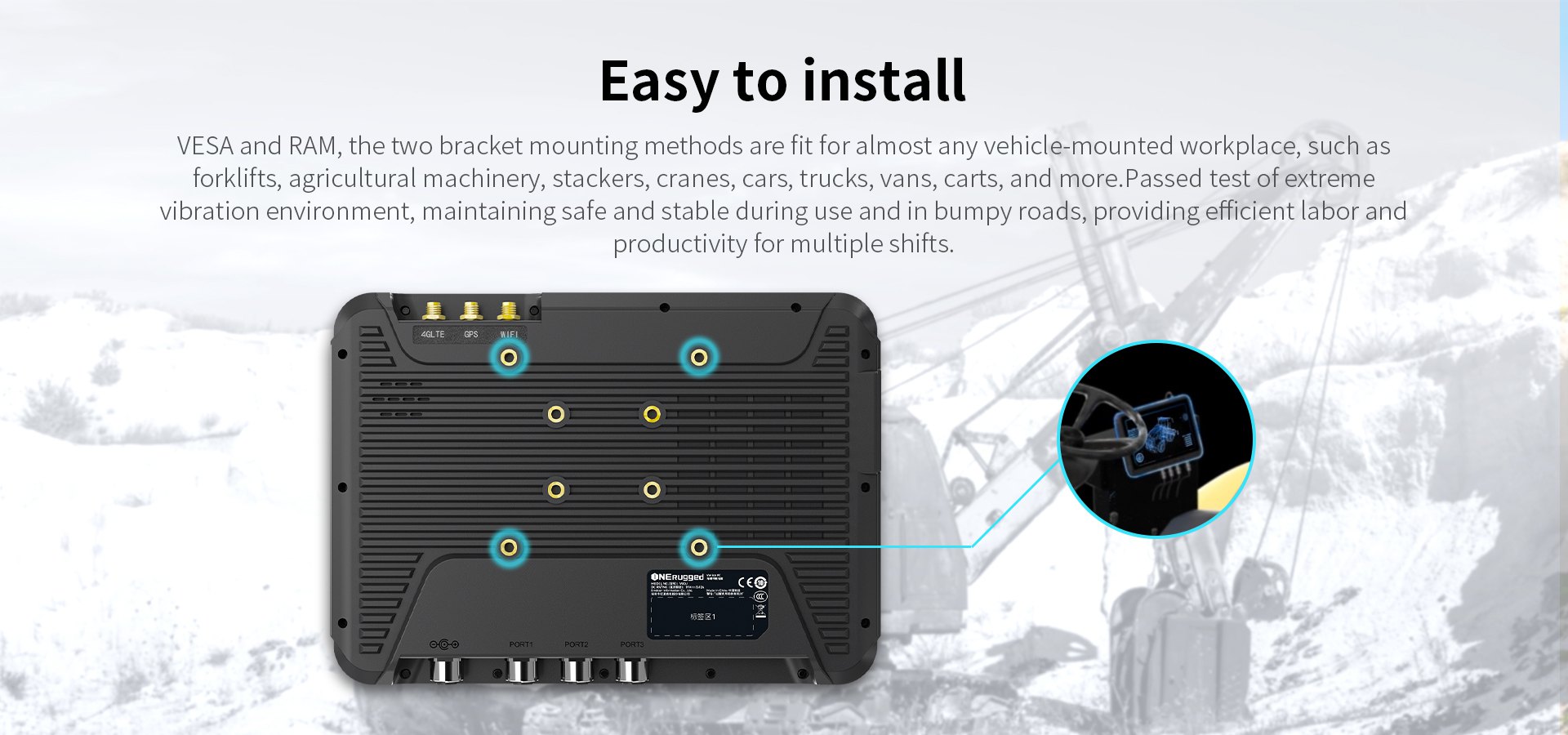

Two bracket mounting methods, VESA and RAM are suitable for almost any vehicle-mounted workplaces

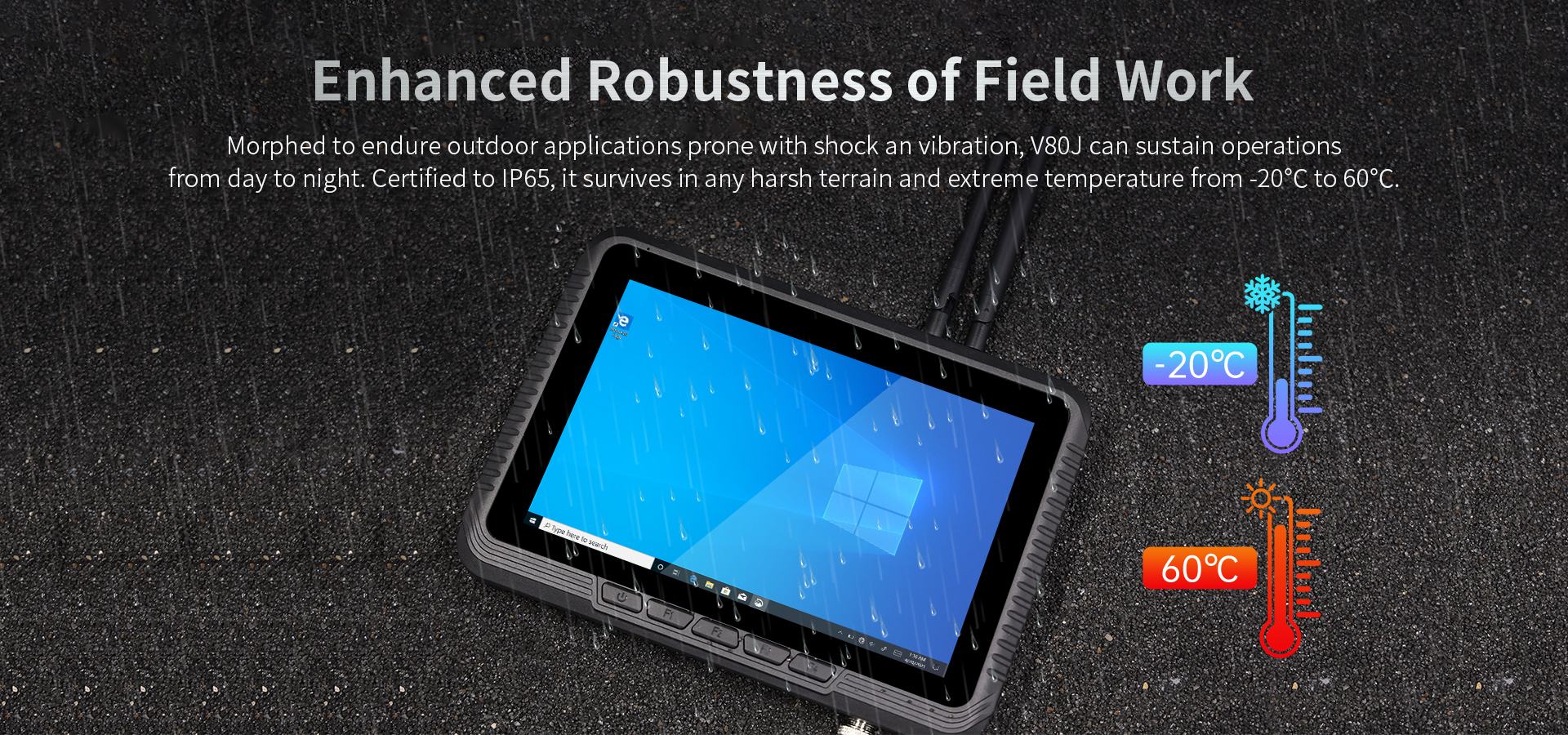

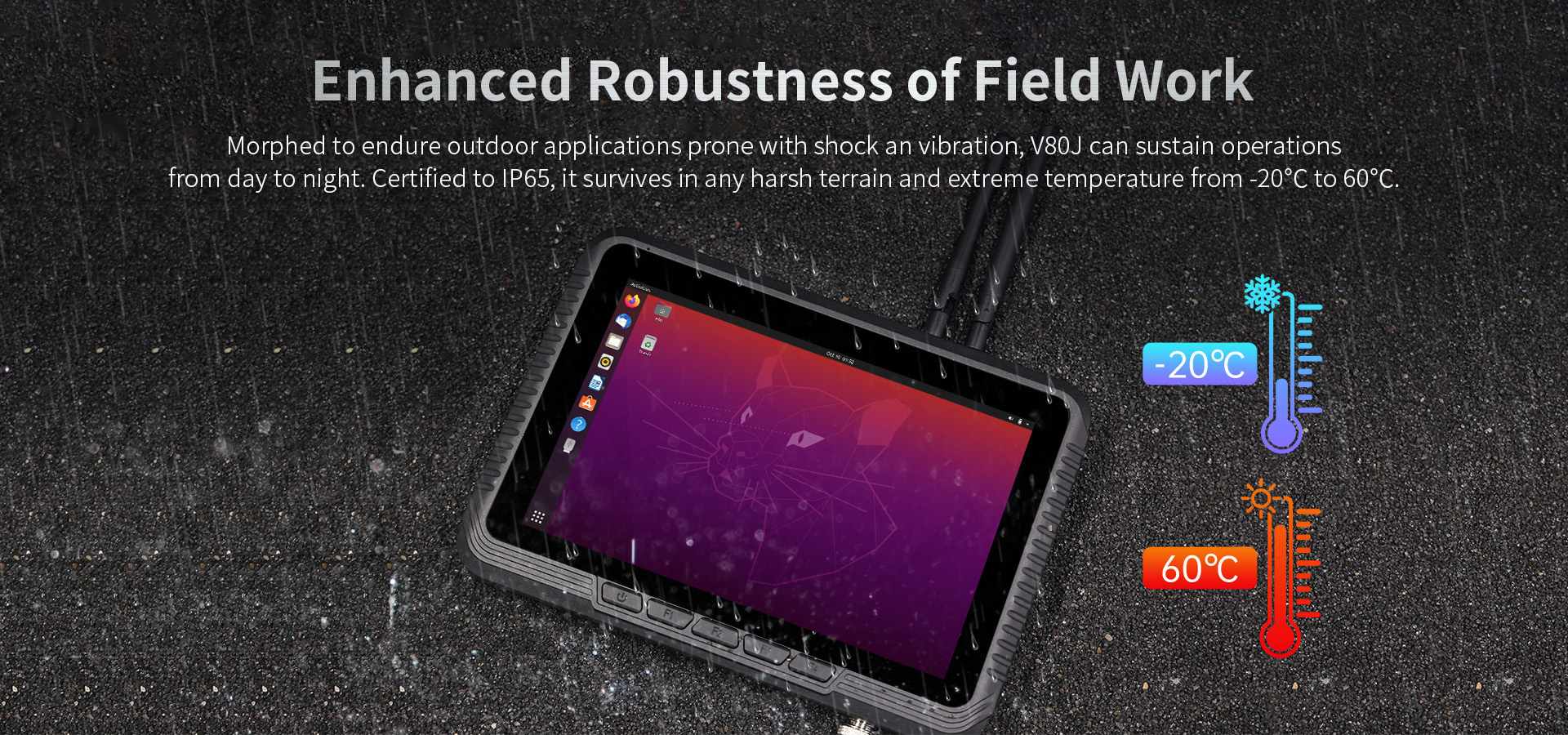

IP65 dustproof and waterproof, morphed to endure outdoor applications prone with shock, vibration and extreme temperature
218.1×154.5×23.0mm
620g
Black
Size: 8 inch 16:10, Resolution: 800*1280 IPS, Brightness: 1000cd/㎡
5-point tempered glass capacitive screen G+G, hardness 7H
Optional: SIM card slot *1
USB 3.0 *1
M12-8 Power port *1 (Compatible: DC power port, suitable for cigarette lighter)
Optional: M12-12 Aviation port 1 *1 (Compatible: 1000M Ethernet port)
Optional: M12-12 Aviation port 2 *1 (Compatible: RS232 port or RS485 port)
Optional: M12-12 Aviation port 3 *1 (Compatible: USB 2.0 port or CAN port or CVBS port)
