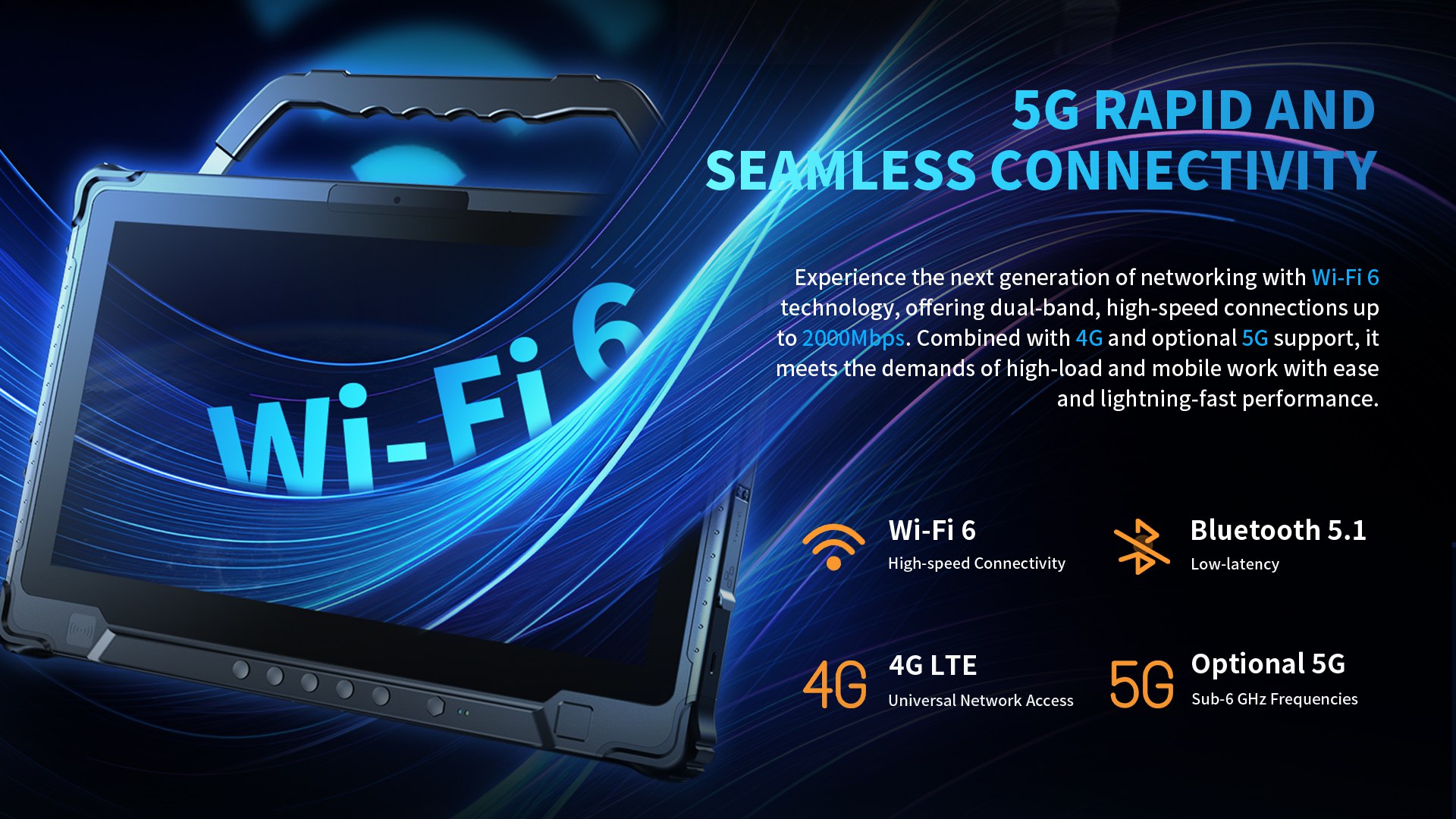

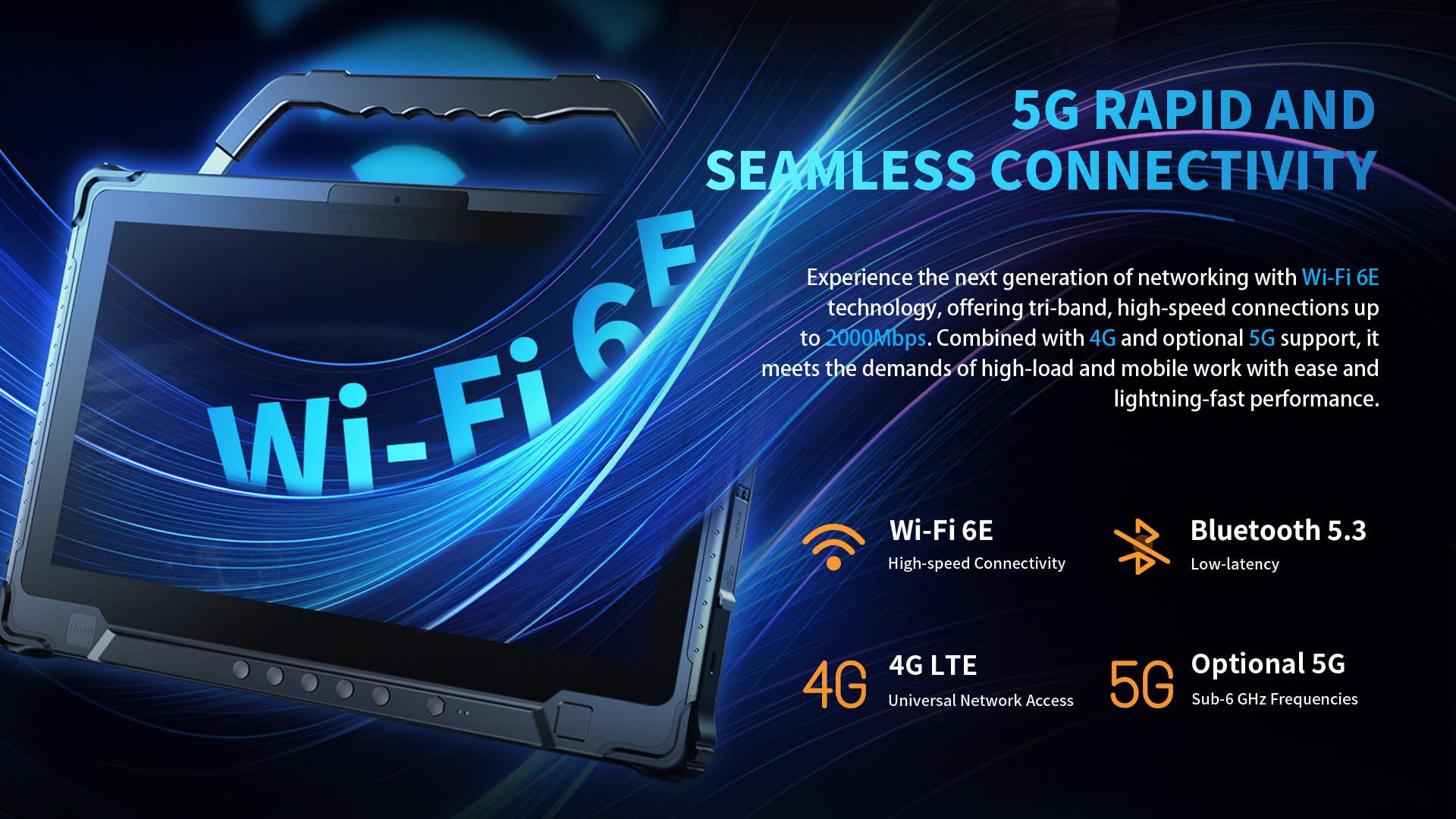

The M14A features the 12th Generation Intel® Core™ i5/i7 processors and runs on Windows 11/10 operating systems. It comes standard with 16GB RAM + 256GB SSD, and boasts a dual-memory and dual-hard drive slot design that supports free upgrades and expansions. Options for M.2 interface 5G/4G connectivity are available, along with efficient transmission via WiFi 6 and BT5.1. It includes a Thunderbolt 4 versatile interface, as well as USB, HDMI, Ethernet, and serial ports, allowing for the connection of numerous external devices. With a dual-battery setup of 53.58Wh + 14.4Wh, it offers long-lasting endurance, and the larger battery supports hot-swapping. The device has an IP65 protection rating and has undergone rigorous testing according to the MIL-STD-810H US military standards.
12th Gen® Intel® Core™ i5/i7 processor
Windows 11/10
Standard 16+256GB, dual memory and dual storage slots for expansion

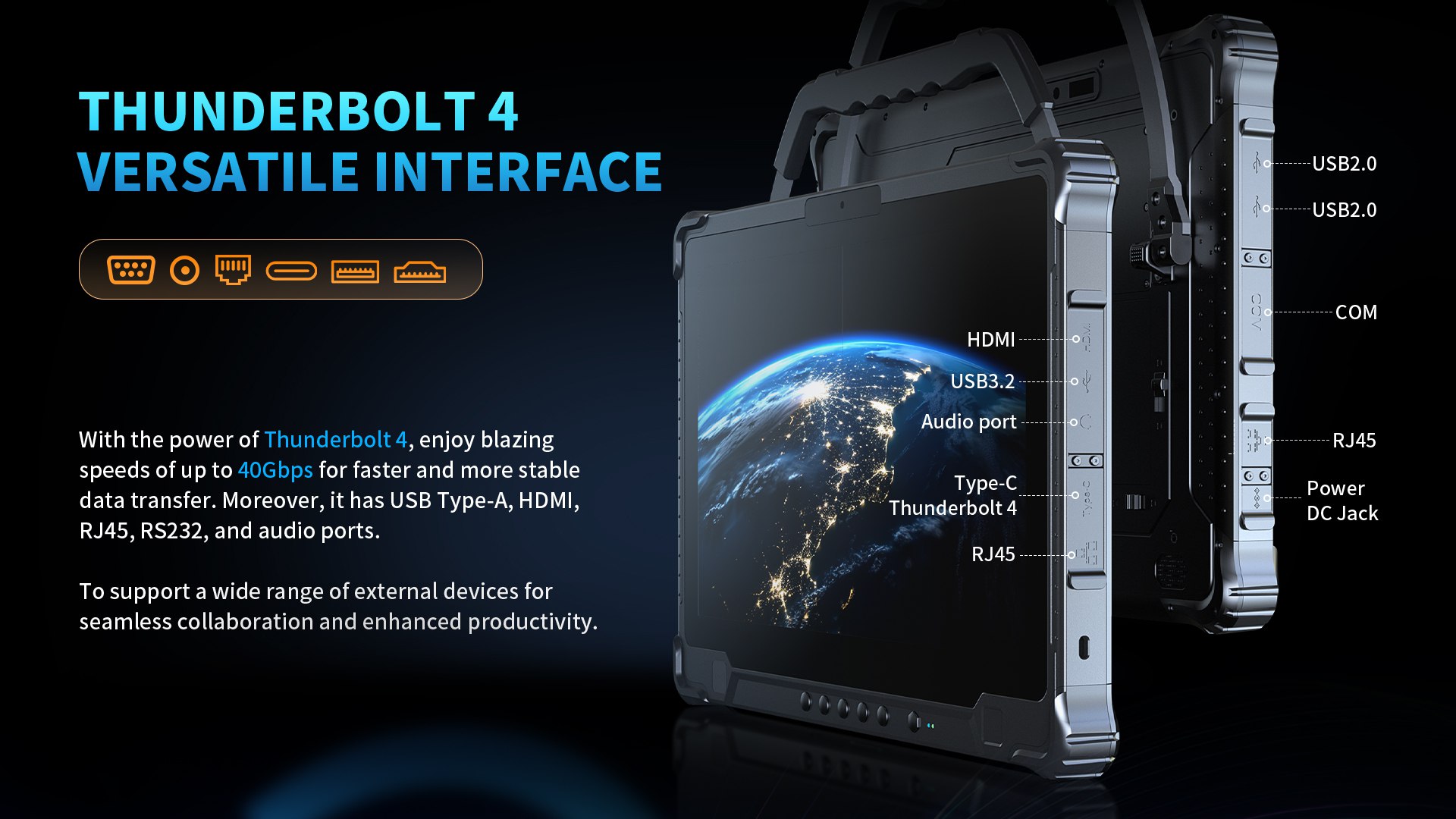

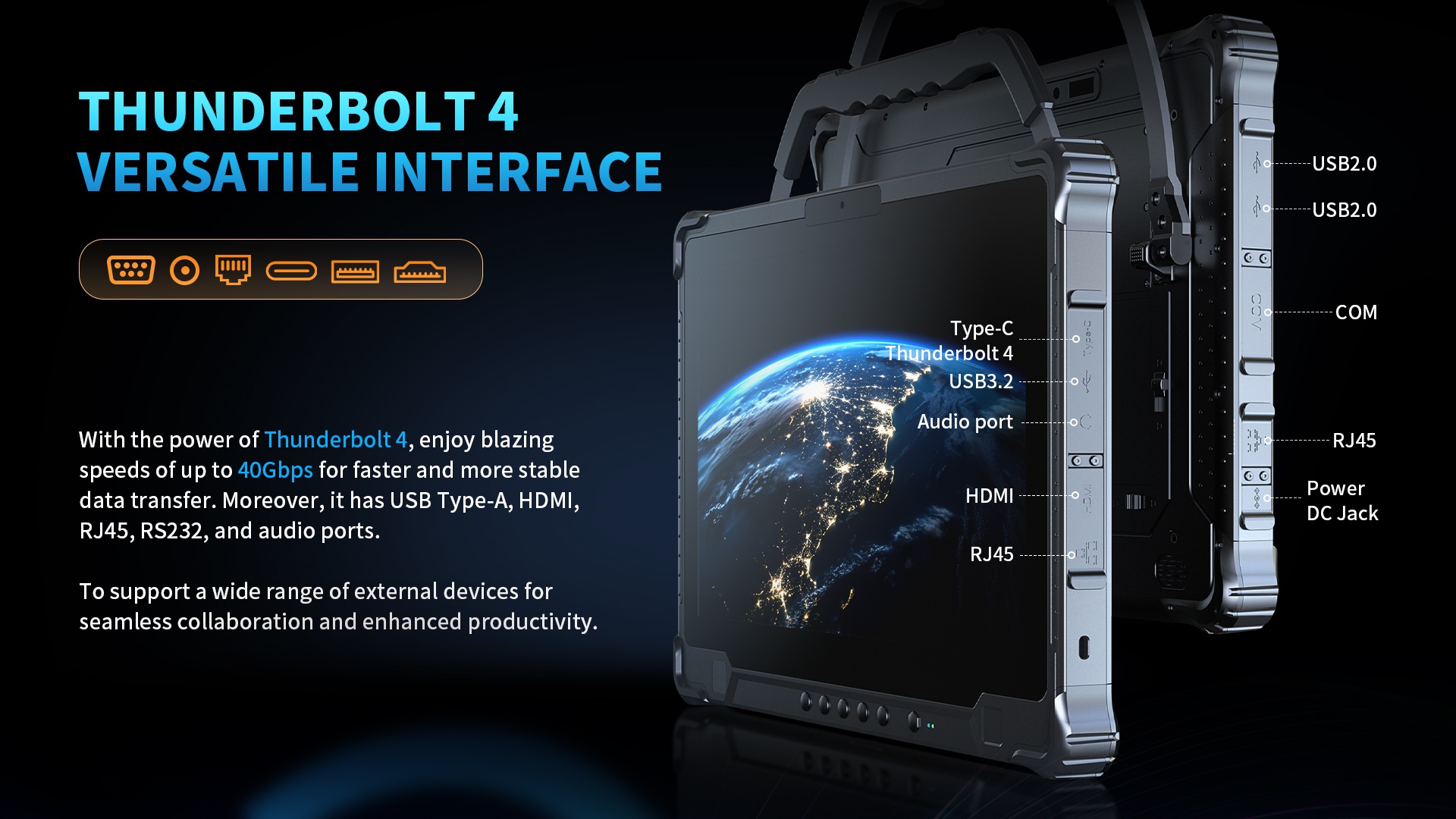

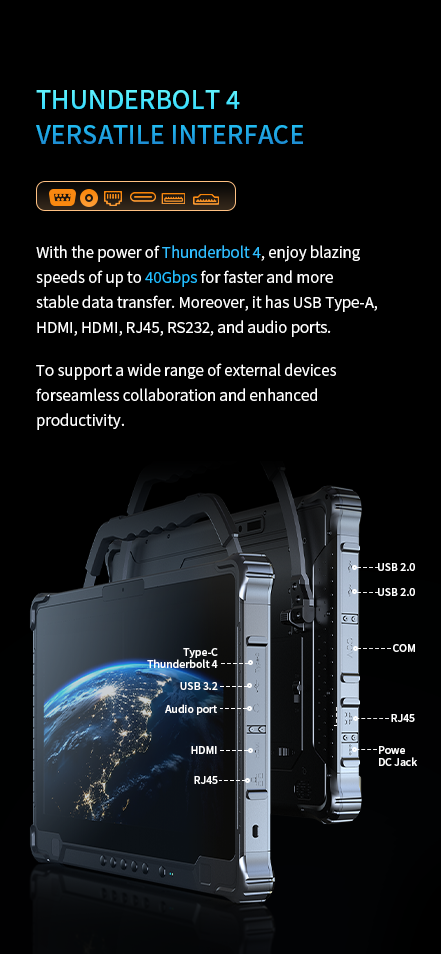

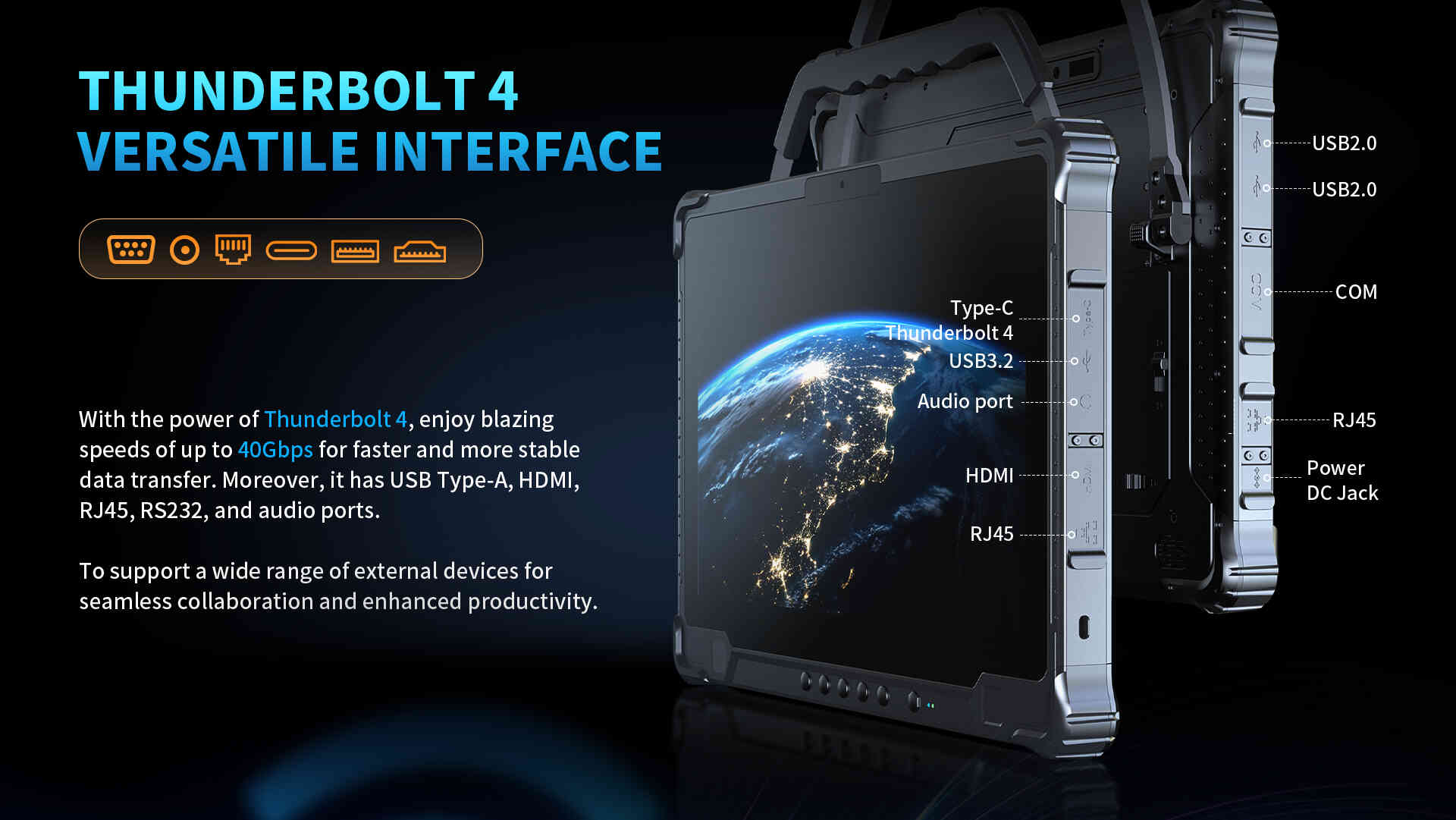

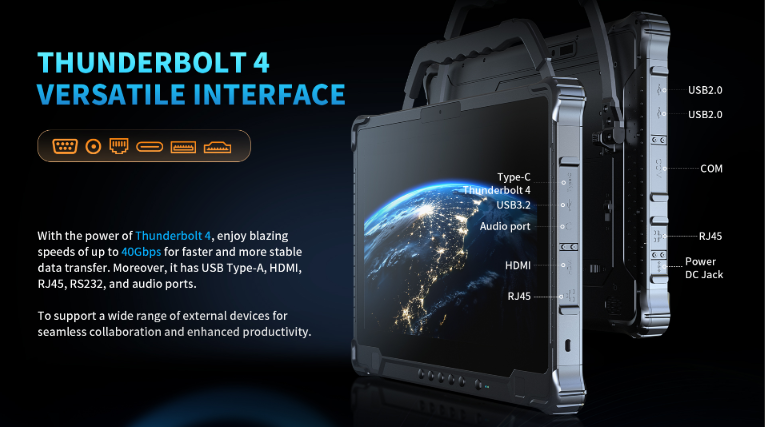

Thunderbolt 4 Versatile Interface, USB, HDMI, RJ45, RS232, etc;

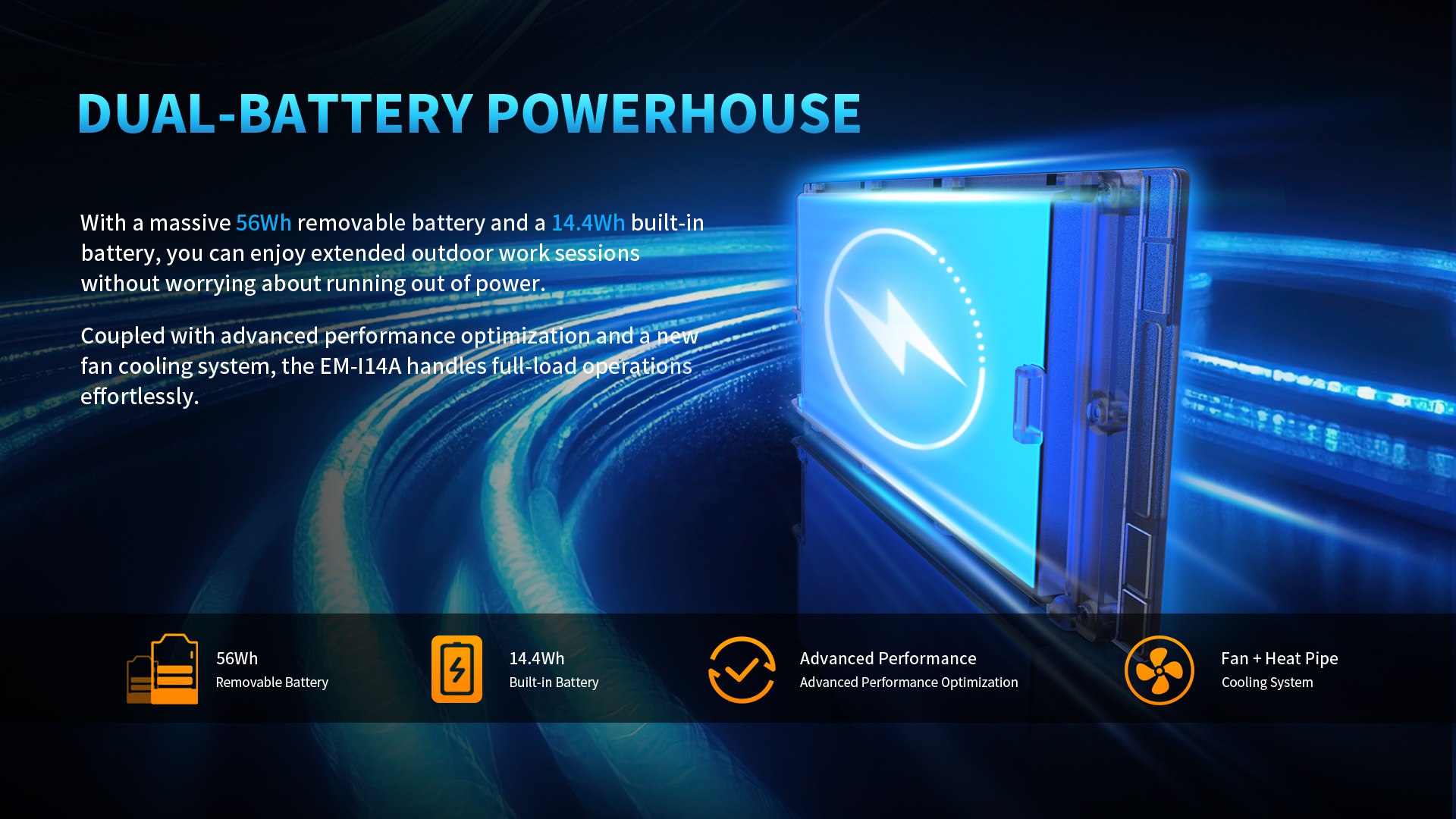

53.58Wh+14.4Wh dual battery With advanced performance optimization Handling full-load operations effortlessly
The back features a rotating handle IP65 & MIL-STD-810H Certified

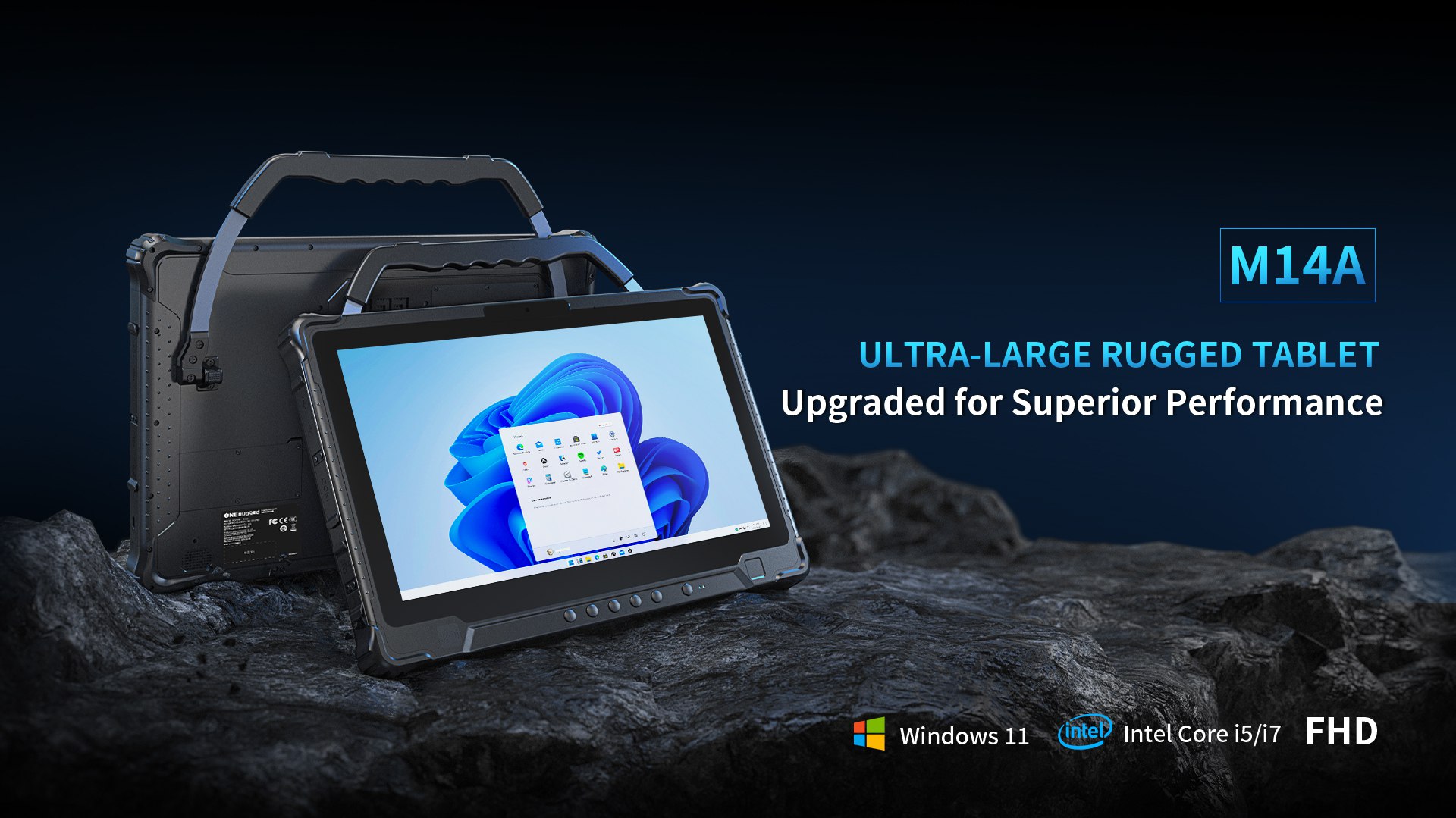

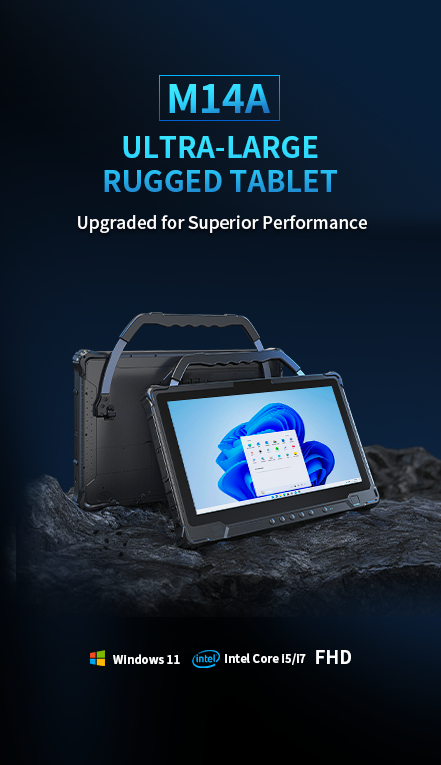

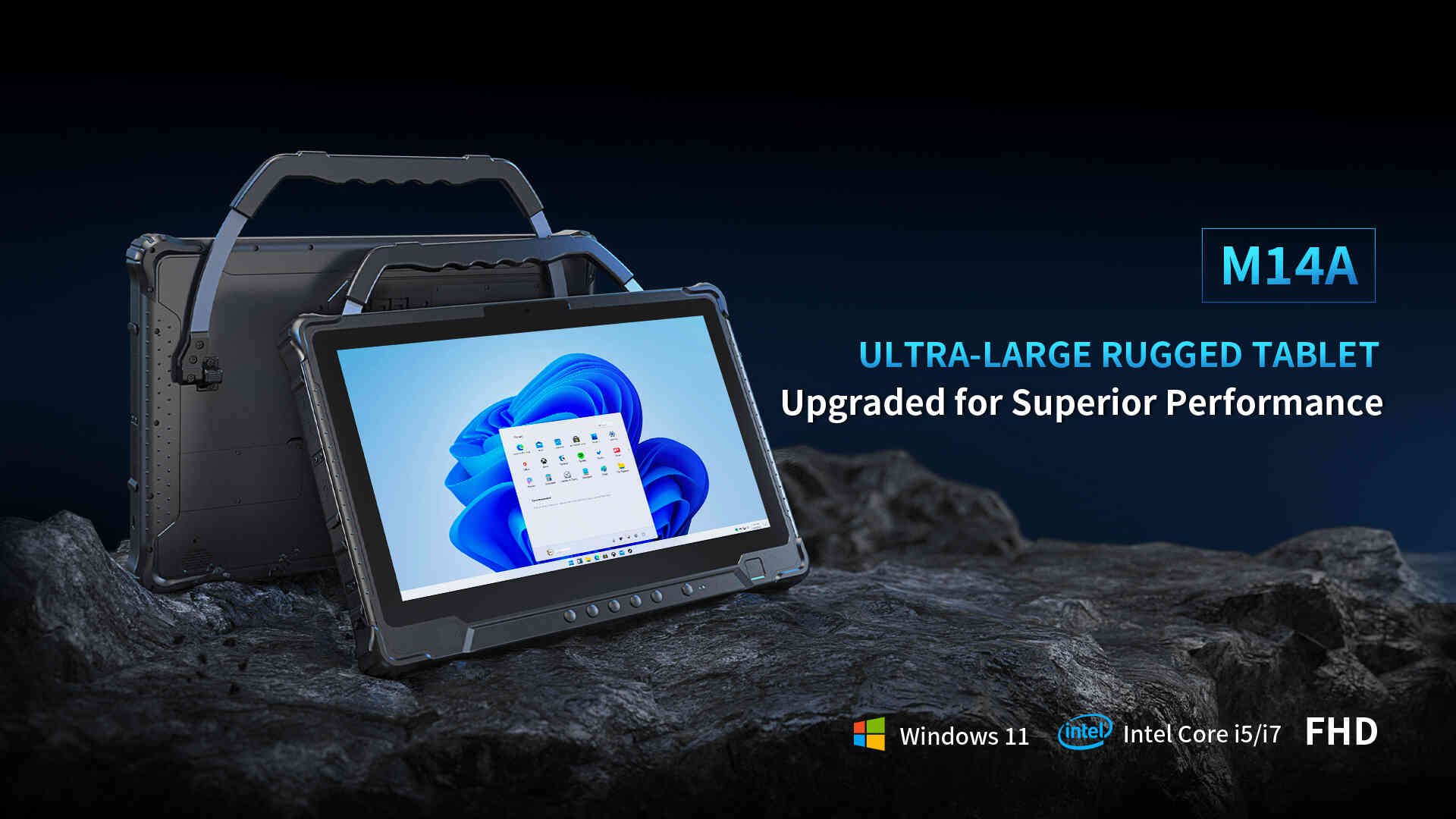

Ultra-Large Screen Upgraded for Superior Performance.
Powered by 12th-Gen Intel® Core™ i5/i7 processors, the M14A boasts a hybrid architecture of 10 cores. With a turbo frequency boost up to 4.7GHz and Intel® Iris® Xe graphics, it effortlessly handles complex industrial Windows PC tasks with GPU-level performance.
Featuring an advanced hybrid core design, the M14A is optimized for both power and efficiency. This 12-thread processing rugged tablet enables seamless multitasking with a dynamic turbo boost up to 4.7GHz, all while maintaining a smart 15W TDP for ultimate endurance.
Advanced parallel computing for complex field data.
Up to 4.7GHz peak speed for heavy workloads.
Balanced 15W TDP for performance and longevity.
Intelligent core allocation for industrial tasks.

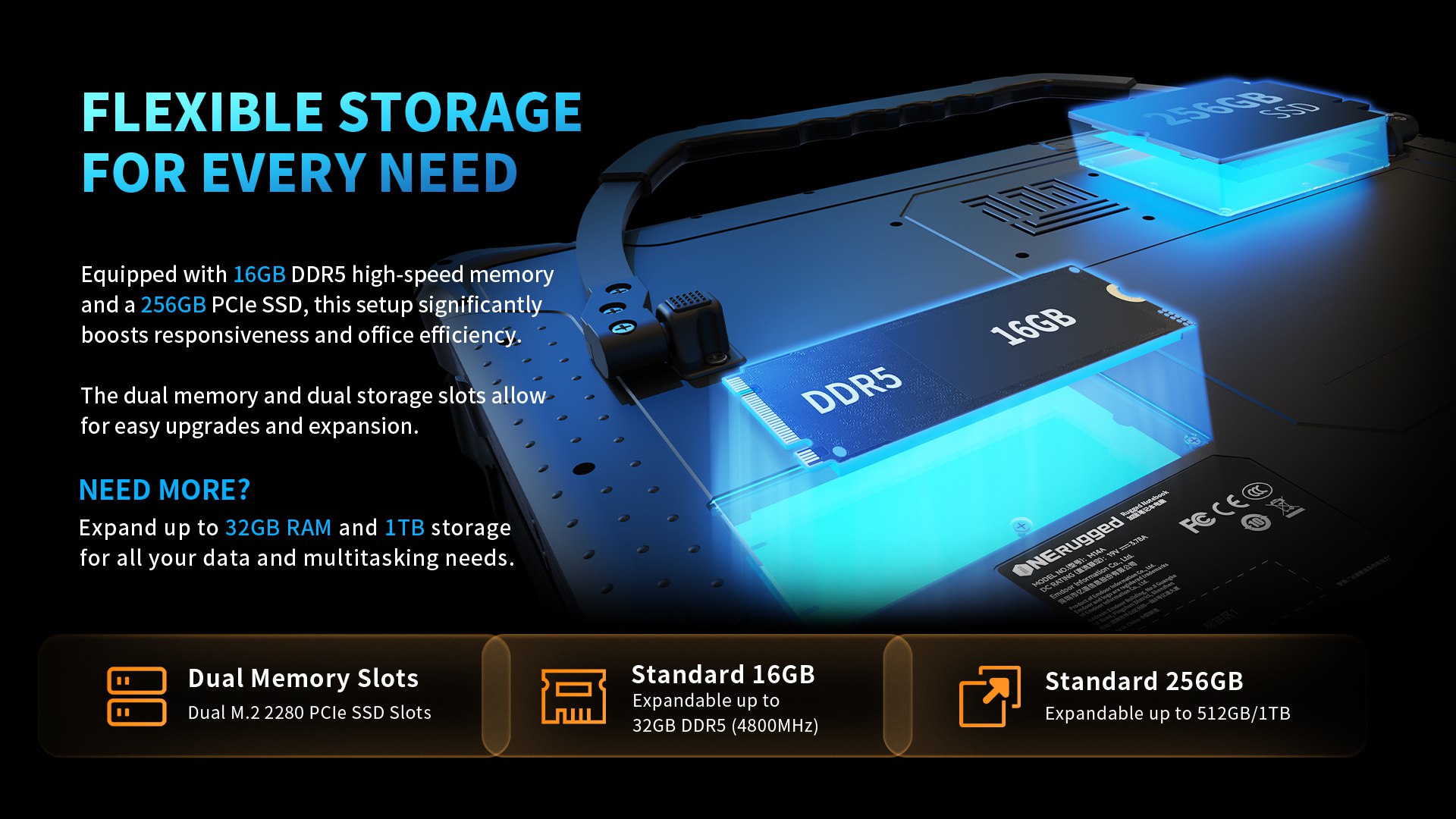

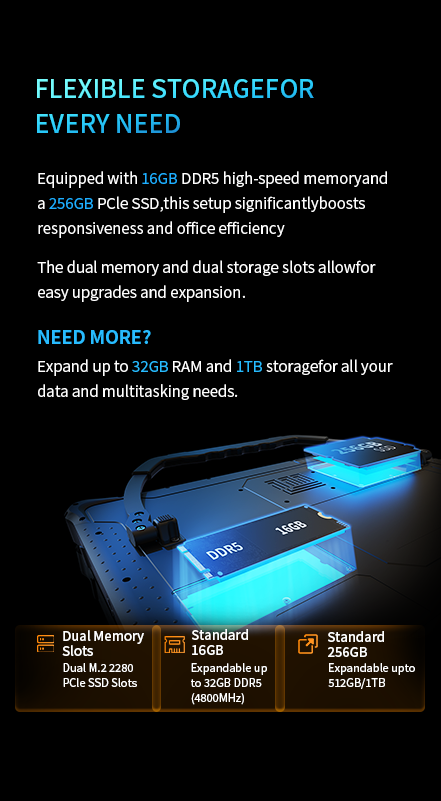

The M14A is equipped with standard 16GB DDR5 memory and a 256GB PCIe SSD, significantly boosting responsiveness. This industrial Windows PC features dual memory and dual storage slots, allowing for easy expansion up to 32GB RAM and 1TB SSD.
4800MHz high-speed RAM for seamless office efficiency.
Equipped with dual M.2 2280 PCIe SSD slots.
Flexible upgrade for multitasking-heavy needs.
Massive capacity expansion for industrial data storage.

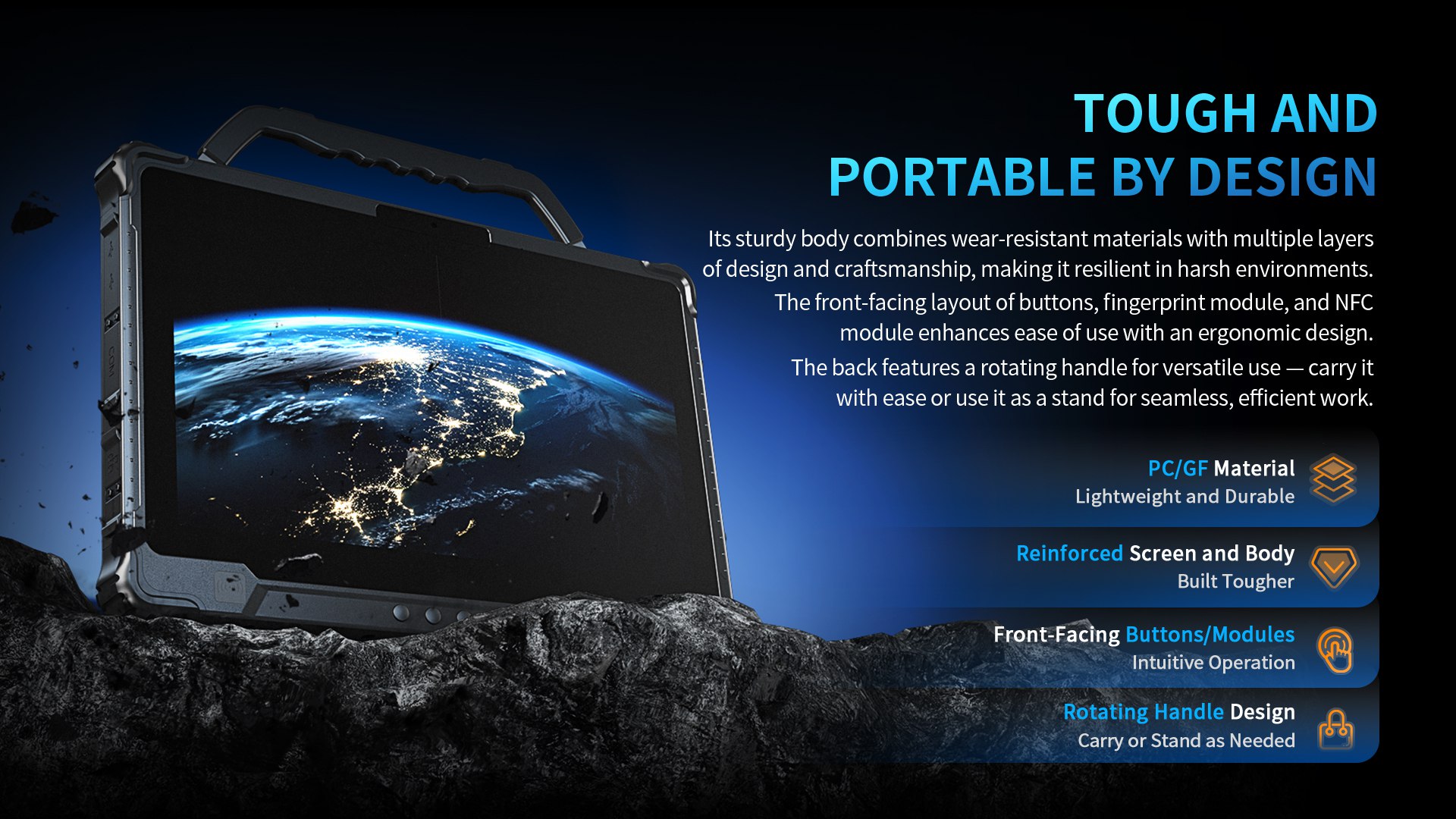

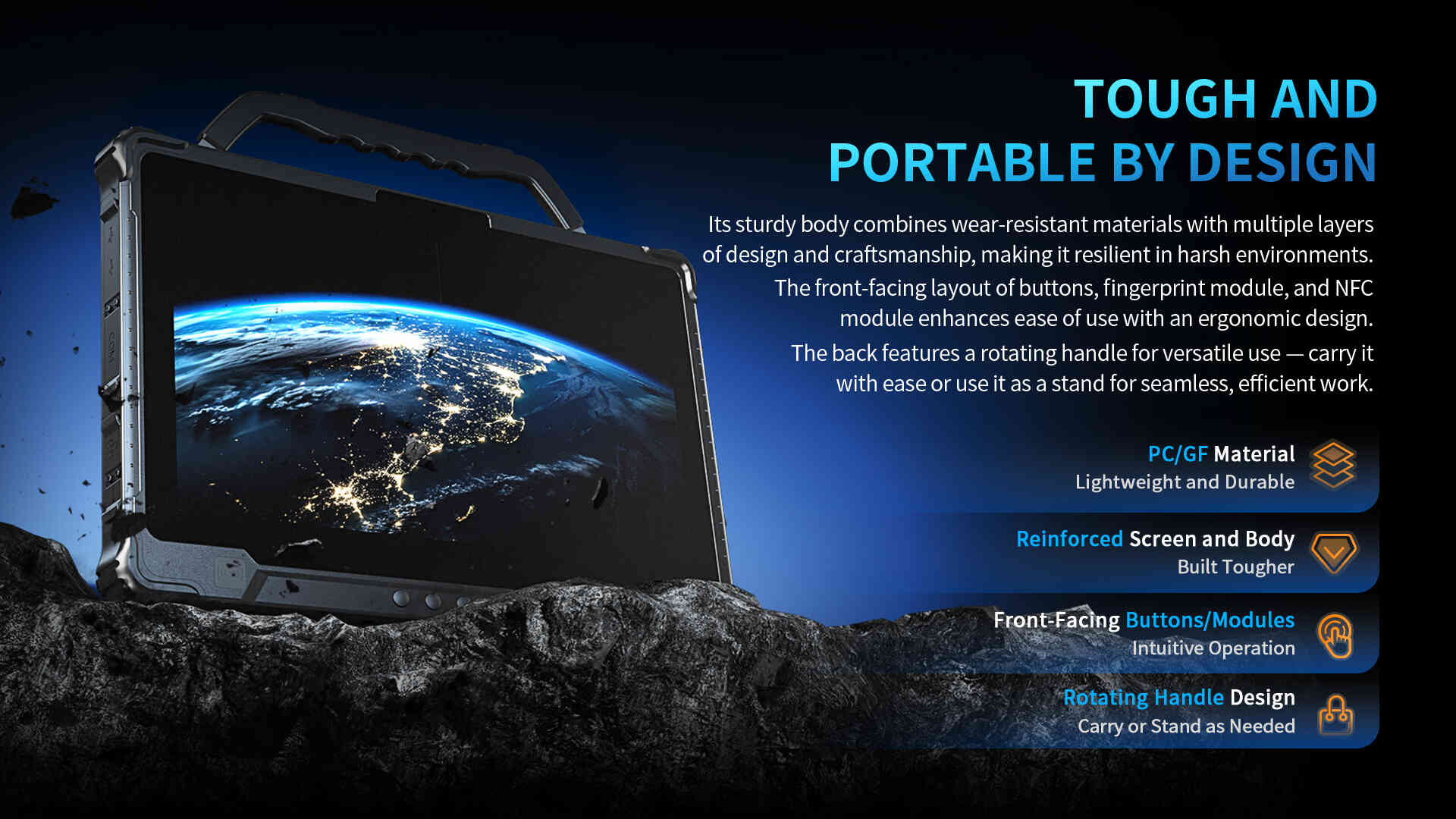

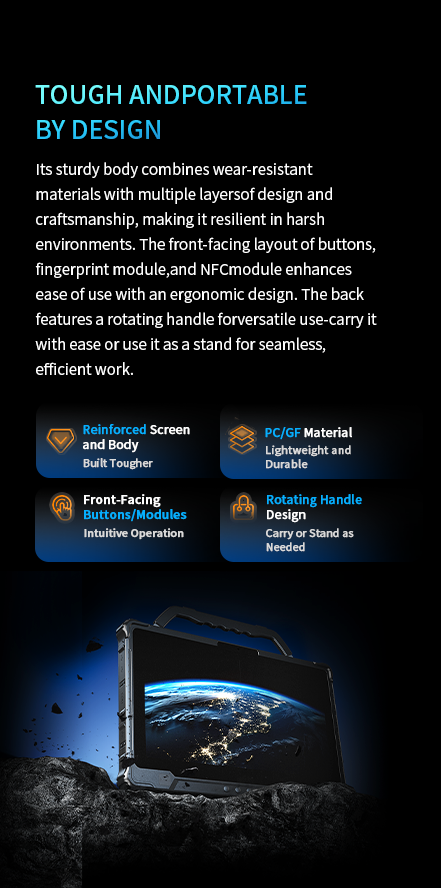

Combining PC/GF reinforced materials with industrial craftsmanship, the M14A is built tougher for harsh environments. This portable 14 inch rugged tablet features an integrated rotating handle and front-facing fingerprint/NFC modules for intuitive enterprise work.

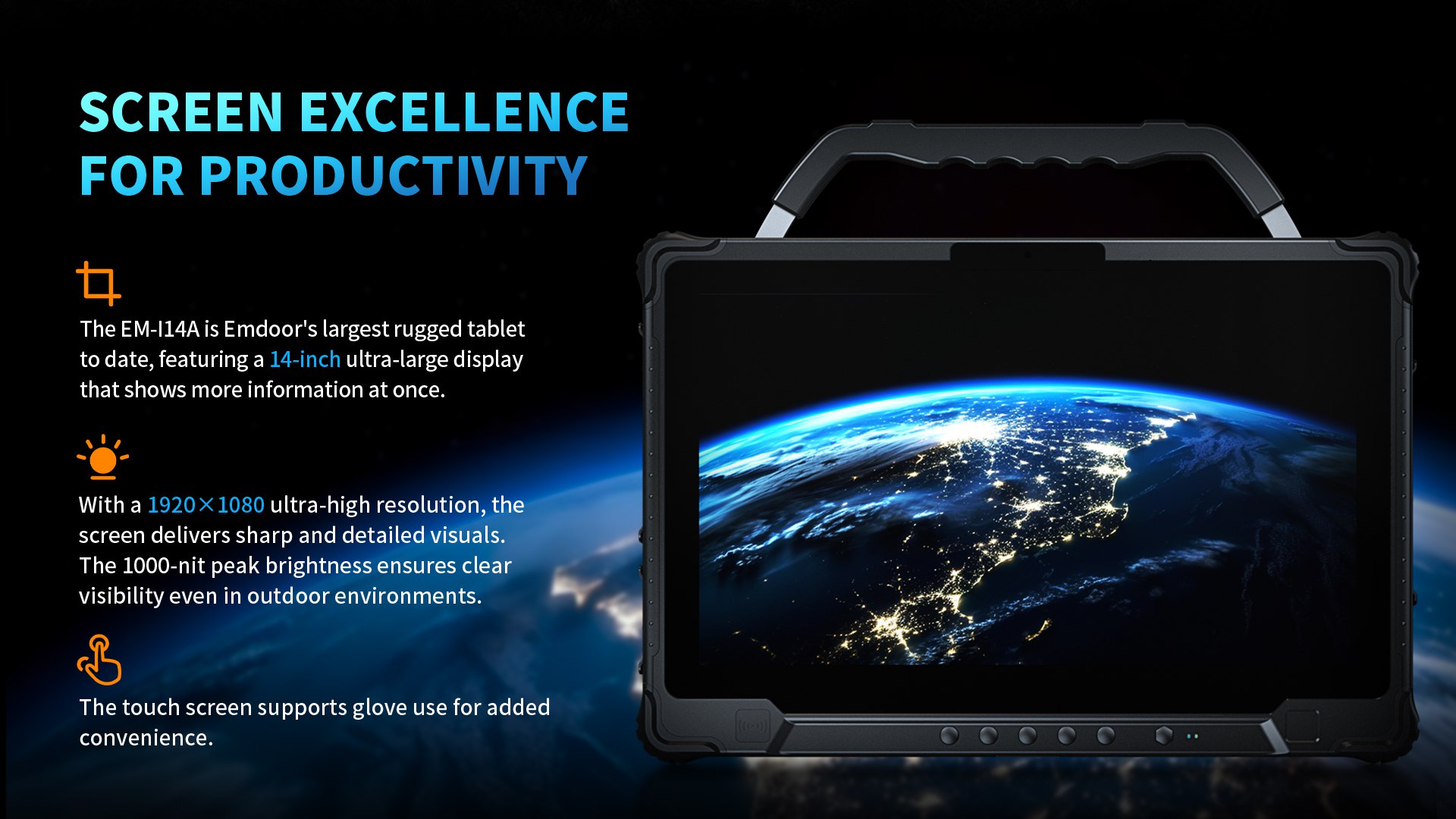

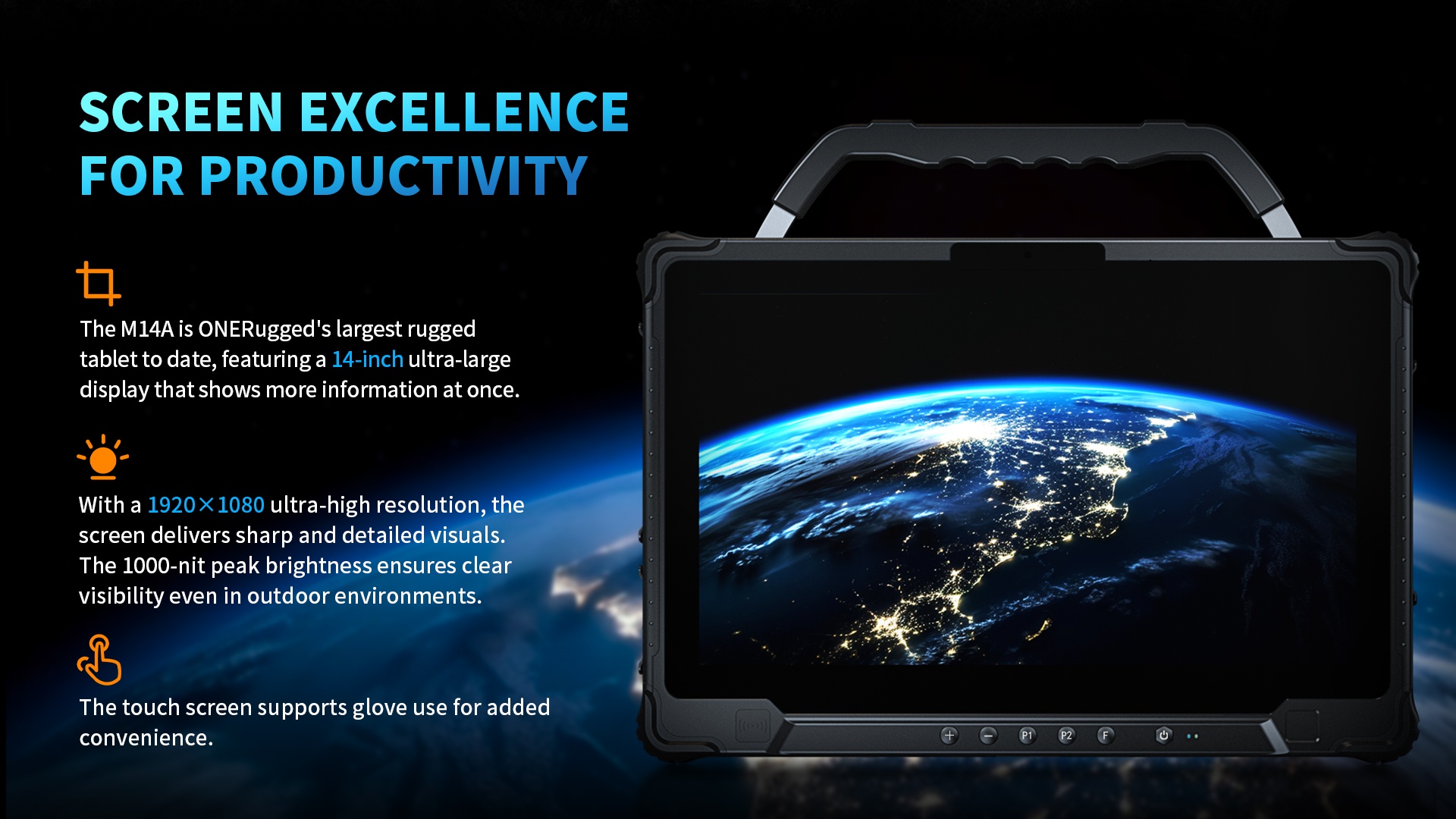

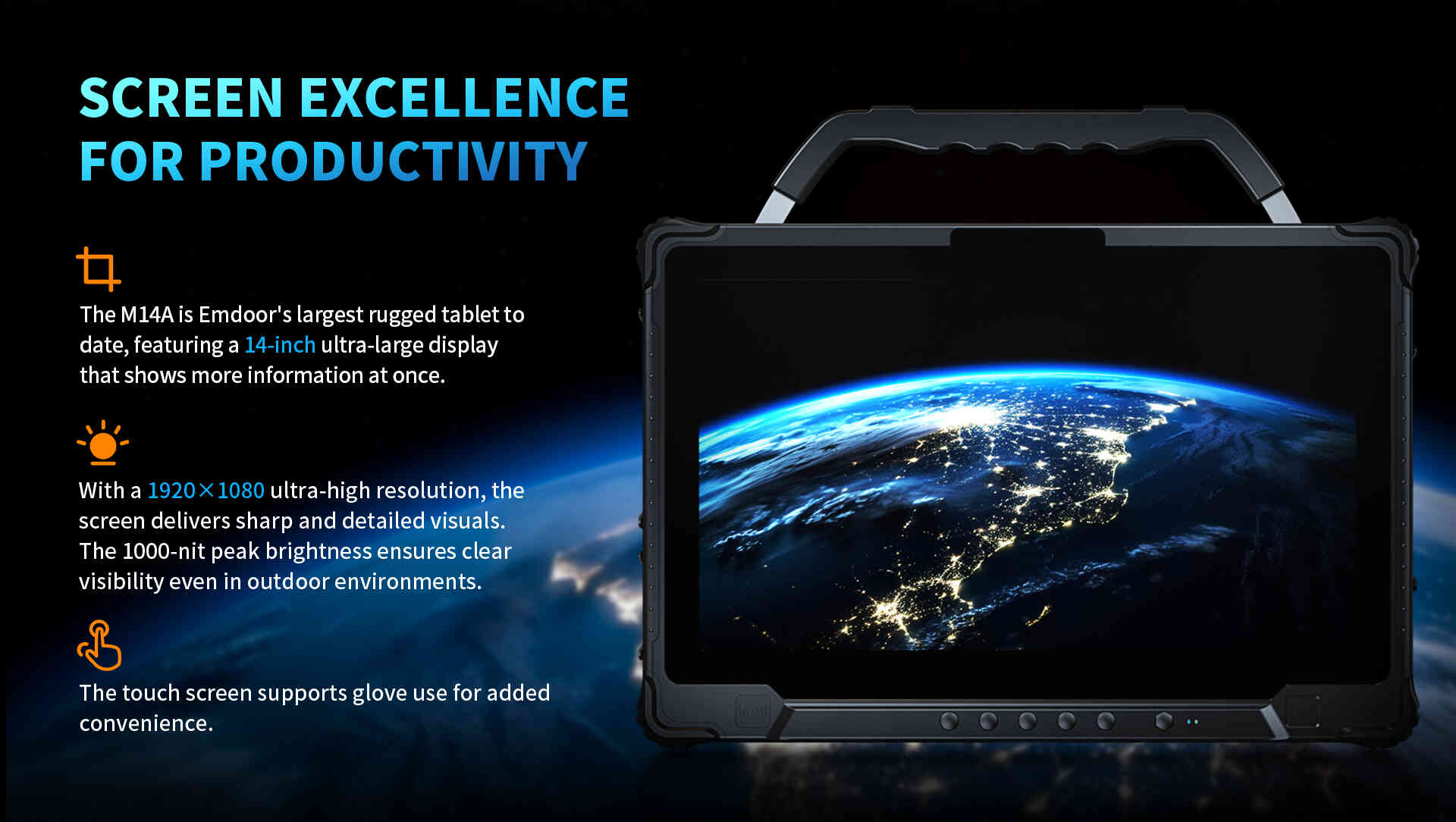

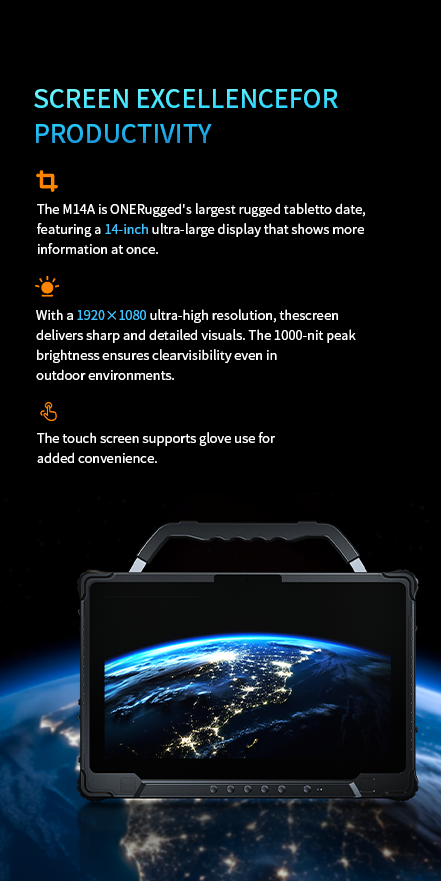

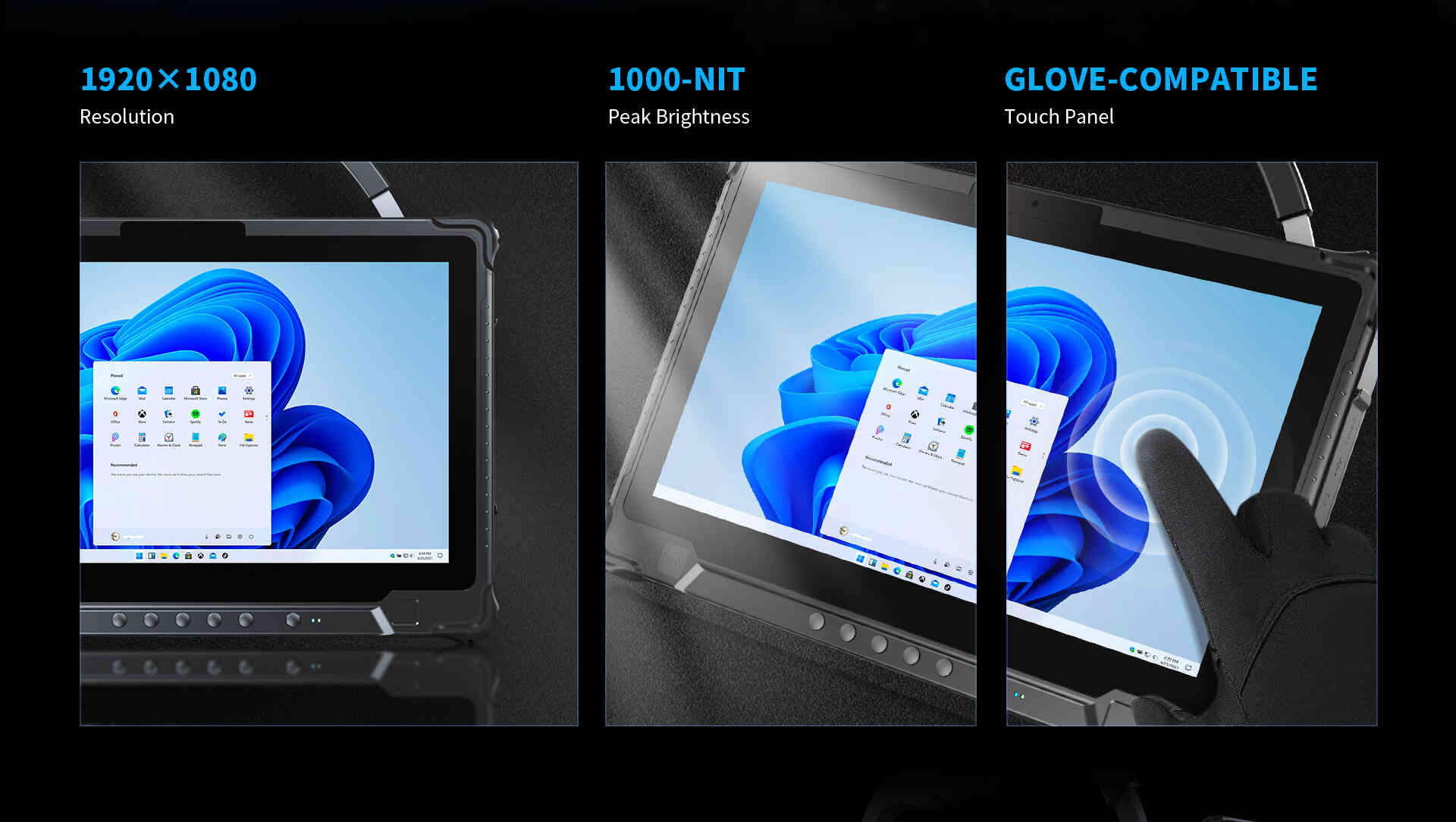

The M14A is Emdoor's largest rugged tablet to date, featuring a 14-inch ultra-large display that shows more information at once. With 1920×1080 resolution and 1000-nit peak brightness, this industrial Windows PC ensures sharp visuals and clear outdoor visibility.
Maximum visual estate for complex industrial data.
Exceptional legibility even in direct outdoor sunlight.
Sharp and detailed visuals for technical precision.
High sensitivity capacitive screen for added convenience.

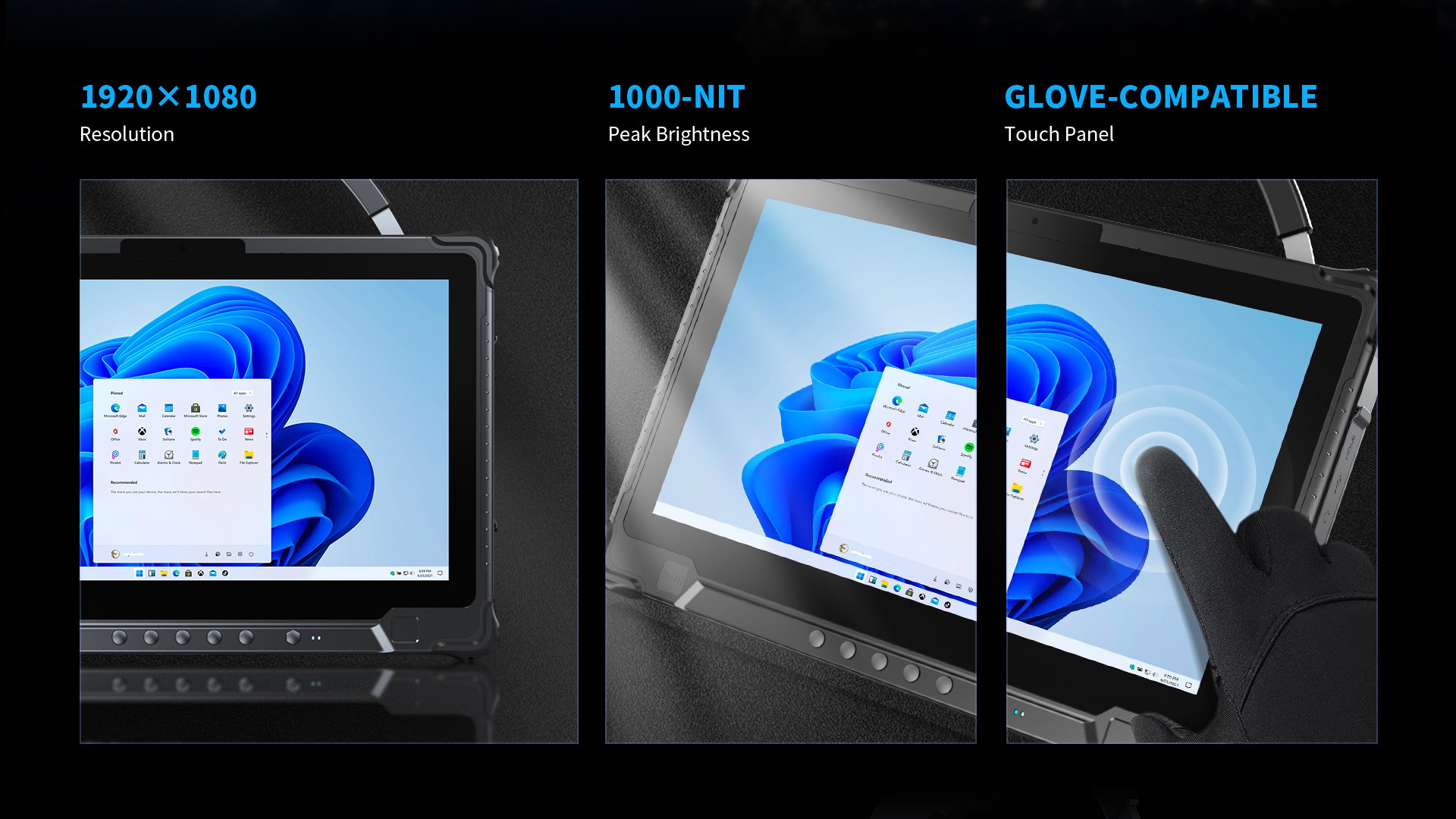

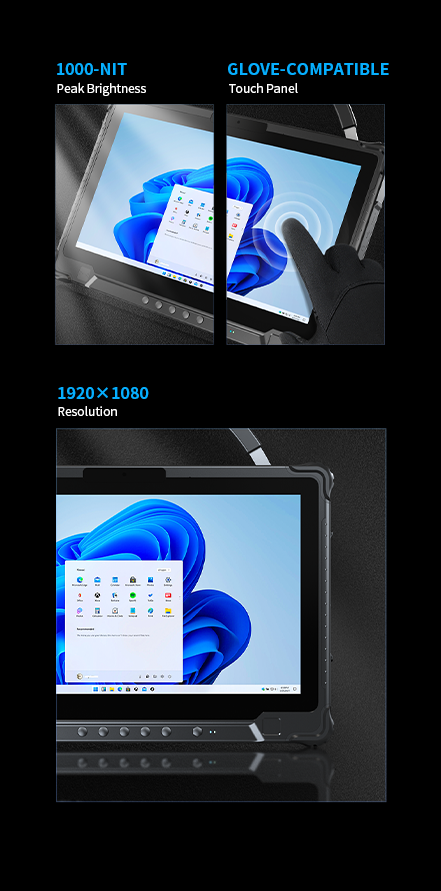

Engineered for uncompromising productivity, the M14A display combines 1920×1080 high resolution with 1000-nit peak brightness. This industrial Windows PC ensures sharp visuals and reliable glove-compatible touch performance in any field environment.
The M14A combines cutting-edge intelligence with ultimate durability. From expandable PCIe cards and Windows 11 OS to MIL-STD-810H certification, this industrial Windows PC is engineered to deliver reliable performance in any frontline environment.
Hardware extensibility for specialized industrial cards.
13MP rear and 5MP front for high-res documentation.
MIL-STD-810H and IP65 dust/water resistance.
Custom center software and programmable P-buttons.
Intel® Core™ Ultra
Windows 11 PRO
RAM：16GB (Optional: 32GB DDR5)
ROM：256GB SSD（Optional 512GB）
AC100~240V, 19V/3.78A 71.82W output US Standard Optional: EU Standard
Front 5.0MP (USB)
Rear 8.0MP (USB)
1300mah/11.1V (14.4WH)
4700mah/11.4V（53.58WH）
G-Sensor
Built in, used for power-on login.
