Equipped with 4-core ARM architecture A55 processor and Android 12 operating system. 21.5-inch flat capacitive touch panel with high impact resistance. Fanless design, excellent in heat dissipation and strong stability performance. Wide voltage and temperature working performance, perfect for 24/7 use in all weather conditions.Rich interfaces, including multiple USB/RS232/LAN/HDMI and other I/O ports,easily meet various scenario requirements. Equipped with a M.2 port for point-to-point serial connection, it can expand the 4G communication module, HDD and other peripherals. Standard PPC mounting hook component, easy to install and supports various installation methods such as embedded and wall-mounted
Equipped with 4-core ARM architecture A55 processor and Android 12 operating system
Full 21.5-inch HD display, the IP65-rated front panel protects against water and dust ingress
No fan structure design, through aluminum plate and metal back shell heat dissipation, heat dissipation effect is good and stable performance
Wide voltage and temperature working performance, perfect for 24/7 use in all weather conditions
Rich interfaces, including multiple USB/RS232/LAN/HDMI and other I/O ports, easily meet various scenario requirements
can be expanded with communication modules, solid-state drives and other peripherals
Support 802.11a/b/g/n/ac protocol, Bluetooth 5.0, Equipped with a M.2 port
Standard PPC mounting hook component, easy to install and supports various installation methods such as embedded and wall-mounted

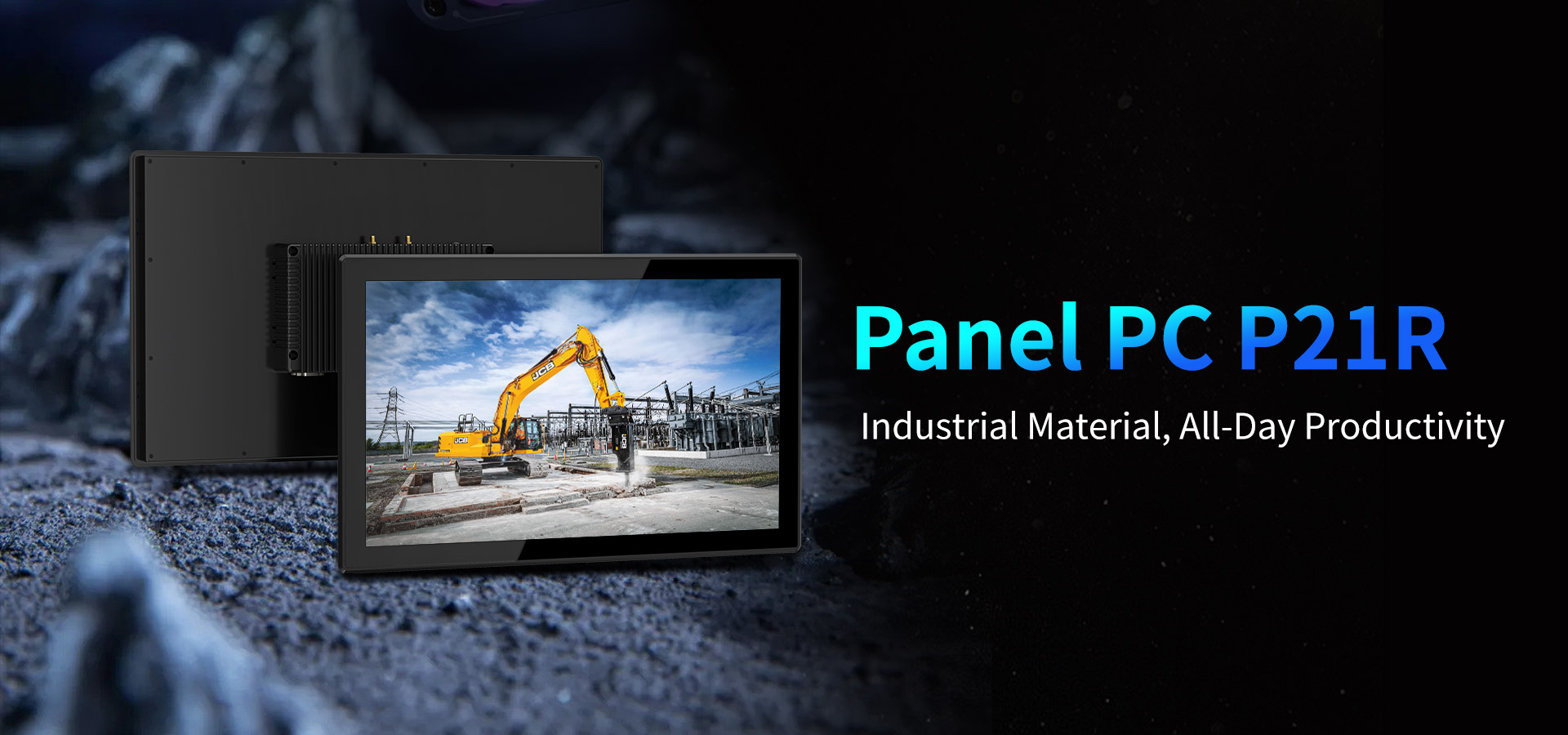

The P21R is engineered for relentless efficiency in demanding industrial sectors. Utilizing specialized industrial-grade materials and an advanced fanless architecture, it delivers an expansive 21.5-inch operational workspace focused on peak all-day productivity.
Engineered with a universal ARM Rockchip processor, the P21R delivers elite computing performance across the industrial landscape. Integrated with the modern Android 12 operating system, it provides a stable, energy-efficient, and user-friendly platform for advanced application needs.
The P21R is engineered for silent and stable 24/7 performance. Utilizing leading passive cooling technology through its high-grade aluminum cladding and metal shell, it features no moving parts to ensure high durability and zero-maintenance operation in continuous industrial environments.

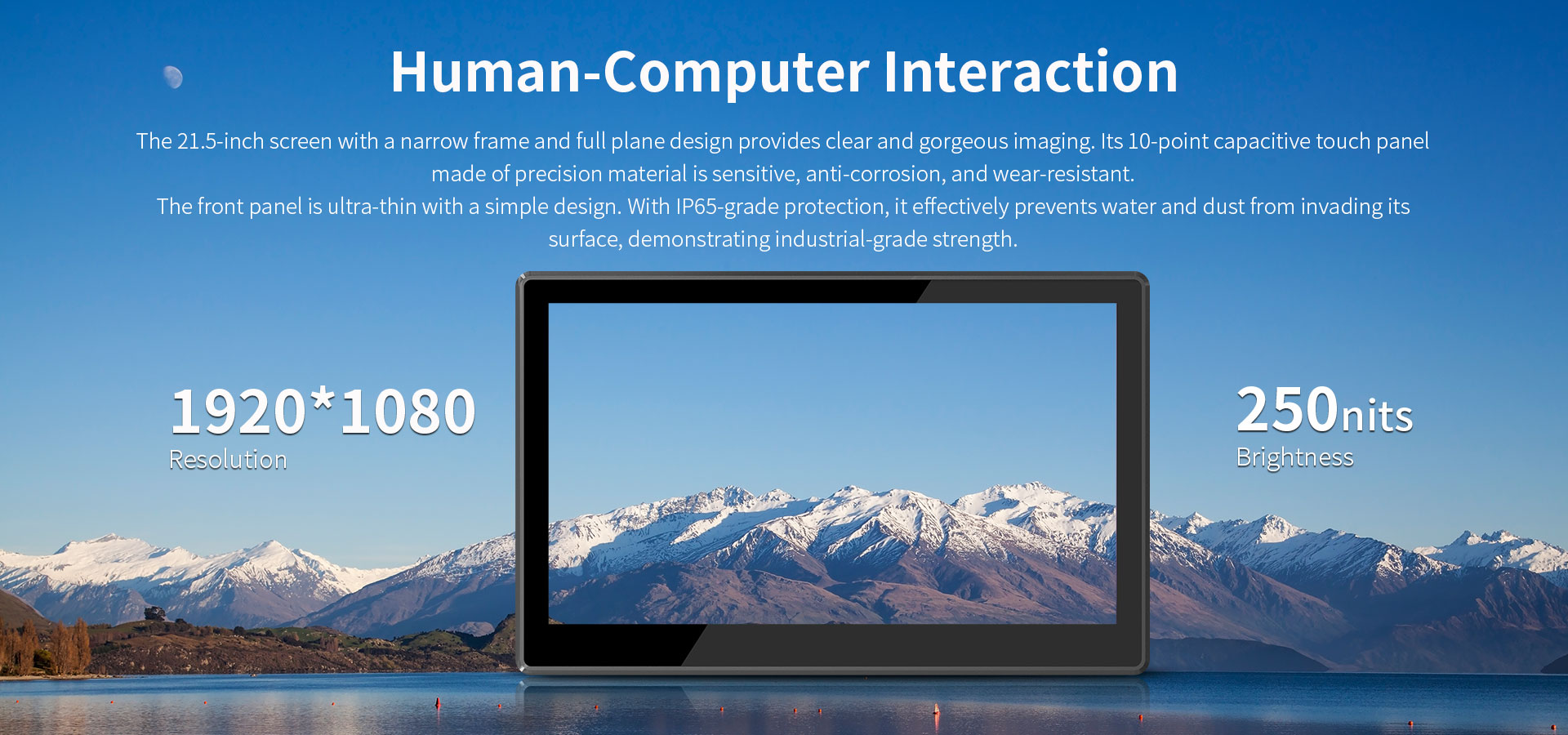

The P21R features an expansive 21.5-inch screen with a full plane design, delivering stunning visual clarity. Engineered for industrial strength, its sensitive 10-point capacitive touch panel is both wear-resistant and anti-corrosive, protected by an ultra-thin IP65-rated front panel against water and dust.

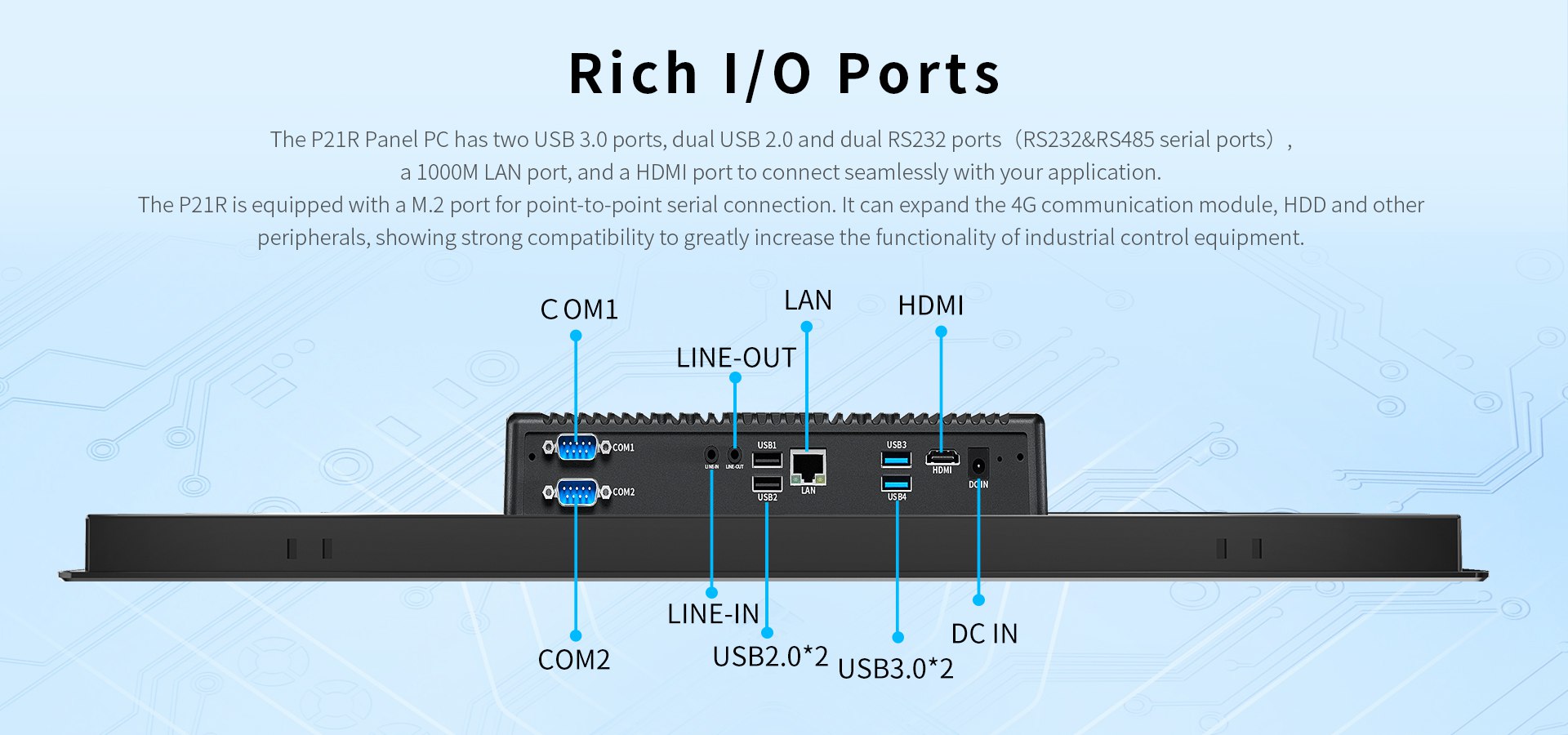

The P21R is designed to connect seamlessly with diverse industrial applications. Featuring a high-density interface array—including quad USB ports, multi-protocol serial connections, and Gigabit LAN—it also provides an internal M.2 slot for flexible 4G module or storage expansion to master complex automation tasks.
The P21R ensures seamless communication with its high-speed 802.11ac Wi-Fi protocol, delivering stable connections and real-time response for smooth industrial operations. Featuring dual-antenna support to eliminate dead zones and integrated Bluetooth 5.0, it provides a reliable, low-latency wireless hub.

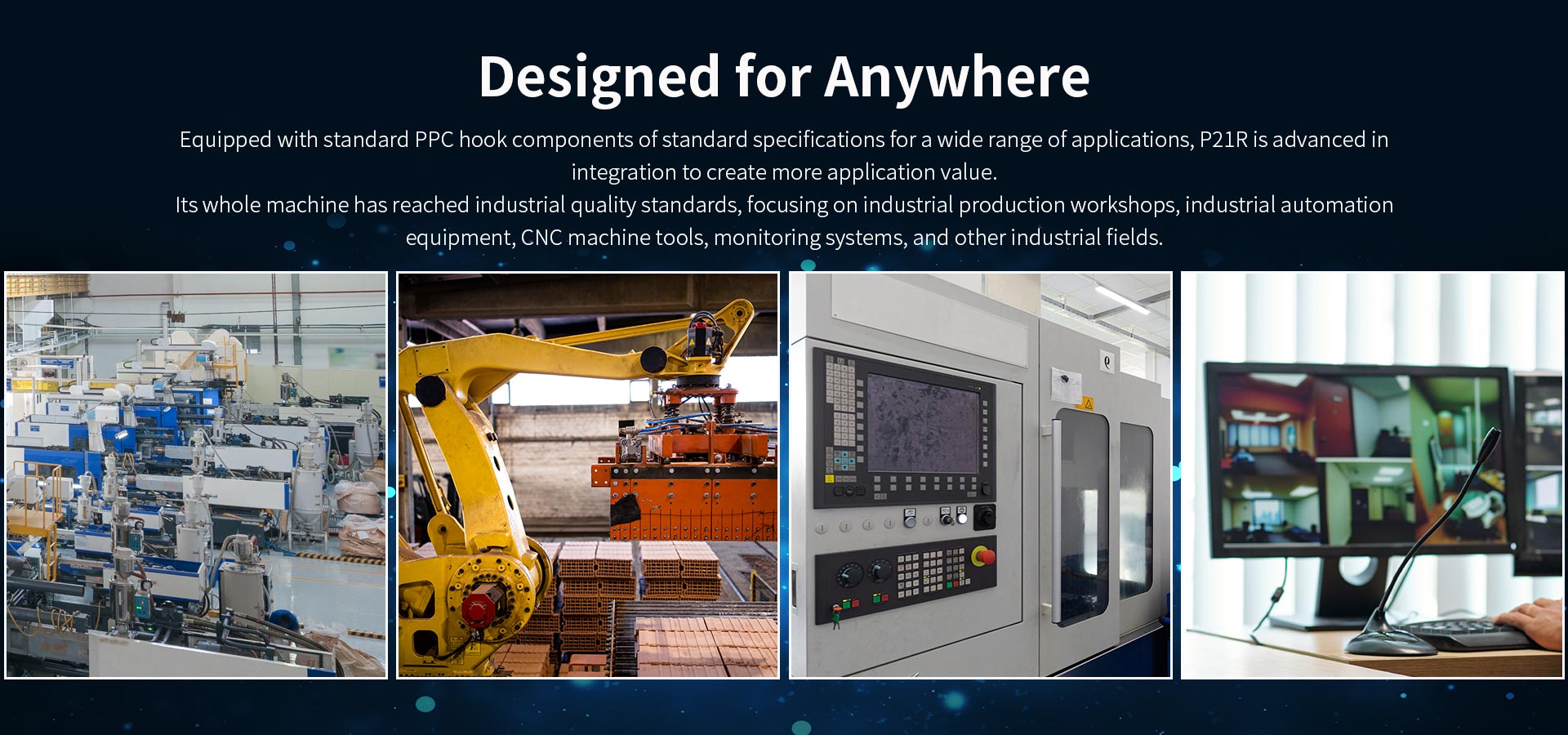

Adhering to rigorous industrial quality standards, the P21R is engineered for seamless integration into complex ecosystems. Equipped with standard PPC mounting hook components, it excels in mission-critical applications across industrial production workshops, CNC machine tools, and advanced monitoring environments.
537.02 x 324.02 x 57.60 mm
5.05 kg
Black
Size: 21.5 inch 16 :9 Resolution: 1920x1080 Brightness: 250 cd/㎡
10 PCAP
USB3.0*1 ，USB3.0*1 OTG，USB 2.0*2
DC IN 12V-24V Power connector *1
∮3.5mm Standard Earphone Jack *1
RJ45 *1
DB9 PORT RS232 *2
HDMI *1
