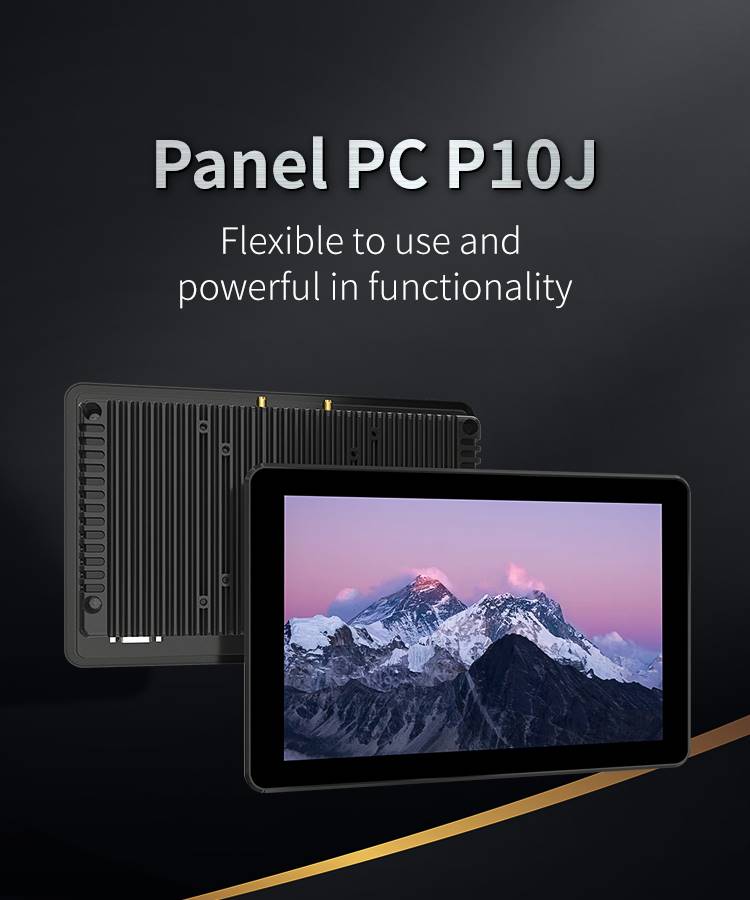

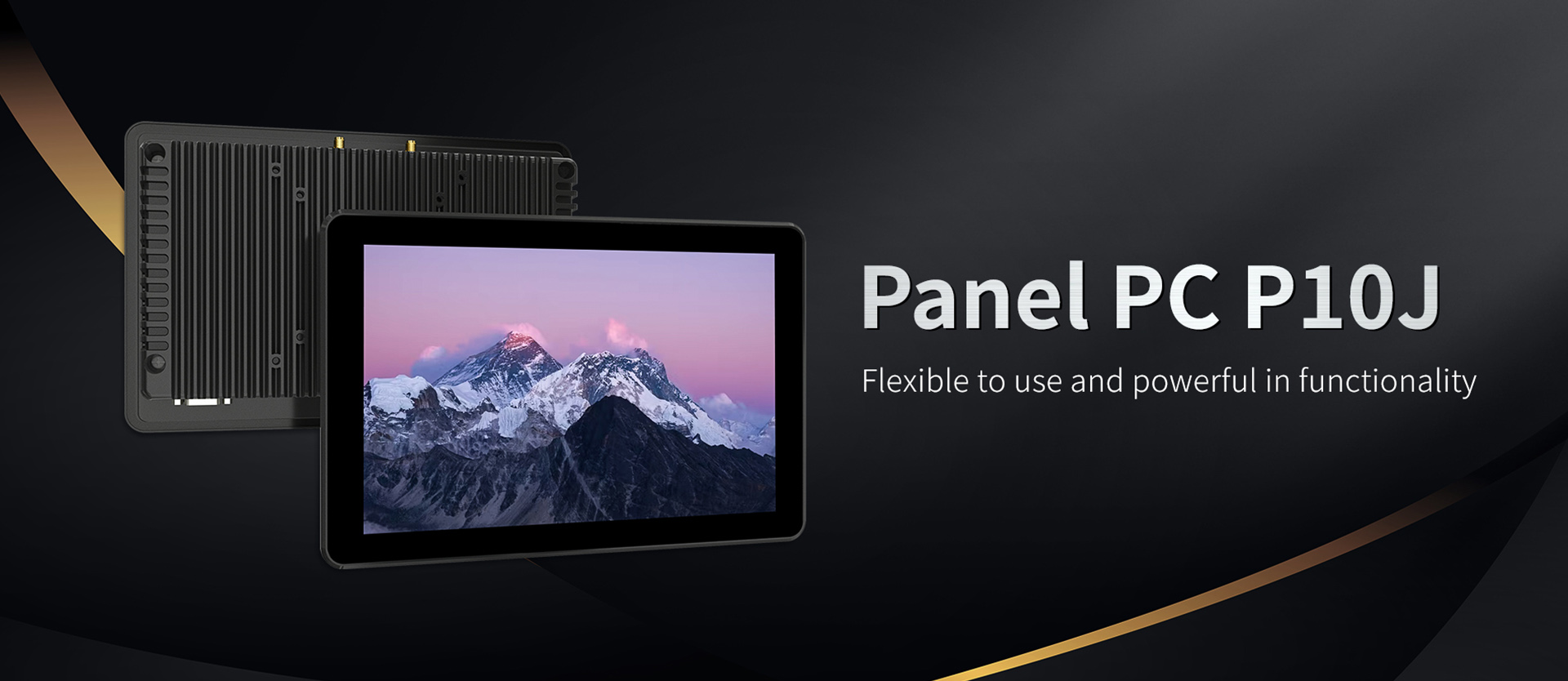

The P10J is a 10.1-inch flat panel pc powered by Intel's 11th generation Celeron processor based on the Jasper Lake platform, and Windows 11 operating system for demanding computing, control and visualization tasks. It’s compact and strong structure, fanless design, performance over a wide range of temperatures and voltages, can reliably withstand the rigors of 24/7 operation even in harsh environments. And with various mounting options, it can be widely used in industrial control, communication, network and other automation fields.
Full 10.1-inch HD display, the IP65-rated front panel protects against water and dust ingress
Powered by an 11th generation Intel Celeron processor, equipped with Windows 10 operating system
Excellent environmental adaptability, anti-electromagnetic interference and anti-static capabilities
Fanless design, using large-area uniform heating fin, running 24/7 without affecting reliability and service life
Rich interfaces, including multiple USB/LAN/HDMI and other I/O ports easily meet various scenario requirements
Dual-band Wi-Fi, Bluetooth 4.2, and expandable 4G (M.2 interface), multiple network connection modes
Wide voltage and temperature design, can operate normally even under external voltage fluctuations or in extremely hot or cold conditions
Standard PPC mounting hook component, easy to install and supports various installation methods such as embedded and wall-mounted

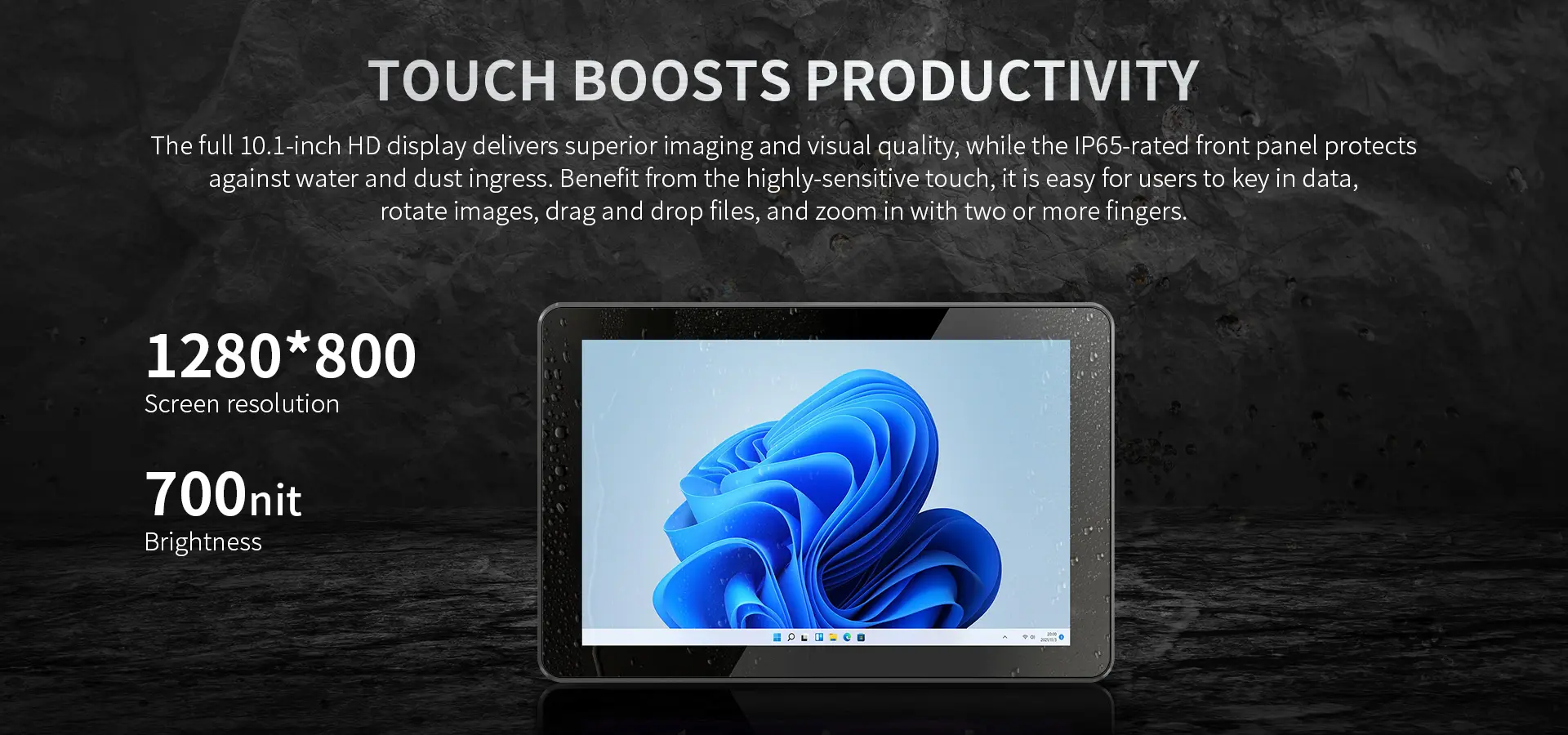

The P10J features a 10.1-inch HD display that delivers superior imaging quality for critical data visualization. Engineered with an IP65-rated front panel for water and dust ingress protection, its highly-sensitive touch interface empowers users to manage complex multi-finger gestures and data input with effortless precision.
Powered by an 11th-Generation Intel Celeron processor, the P10J integrates Intel Turbo Boost technology to master demanding industrial tasks. With 8GB of DDR4 memory and 128GB of high-speed storage, it is optimized to ensure rapid data throughput and seamless multi-tasking performance in mission-critical environments.

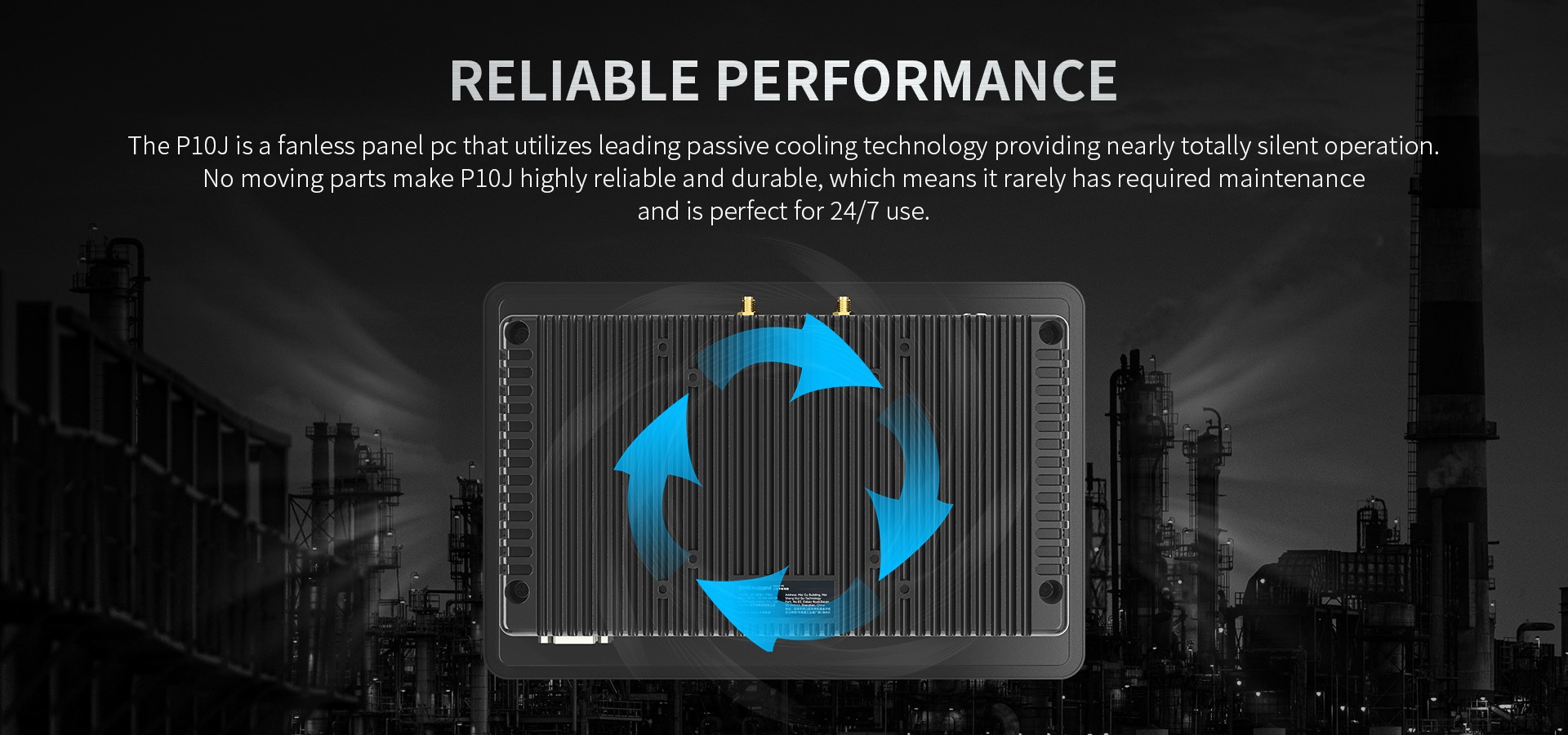

The P10J is a specialized fanless panel PC that leverages leading passive cooling technology to ensure nearly silent operation. Engineered with zero moving parts, it delivers exceptional durability and requires minimal maintenance, making it the ideal solution for continuous 24/7 industrial deployments.

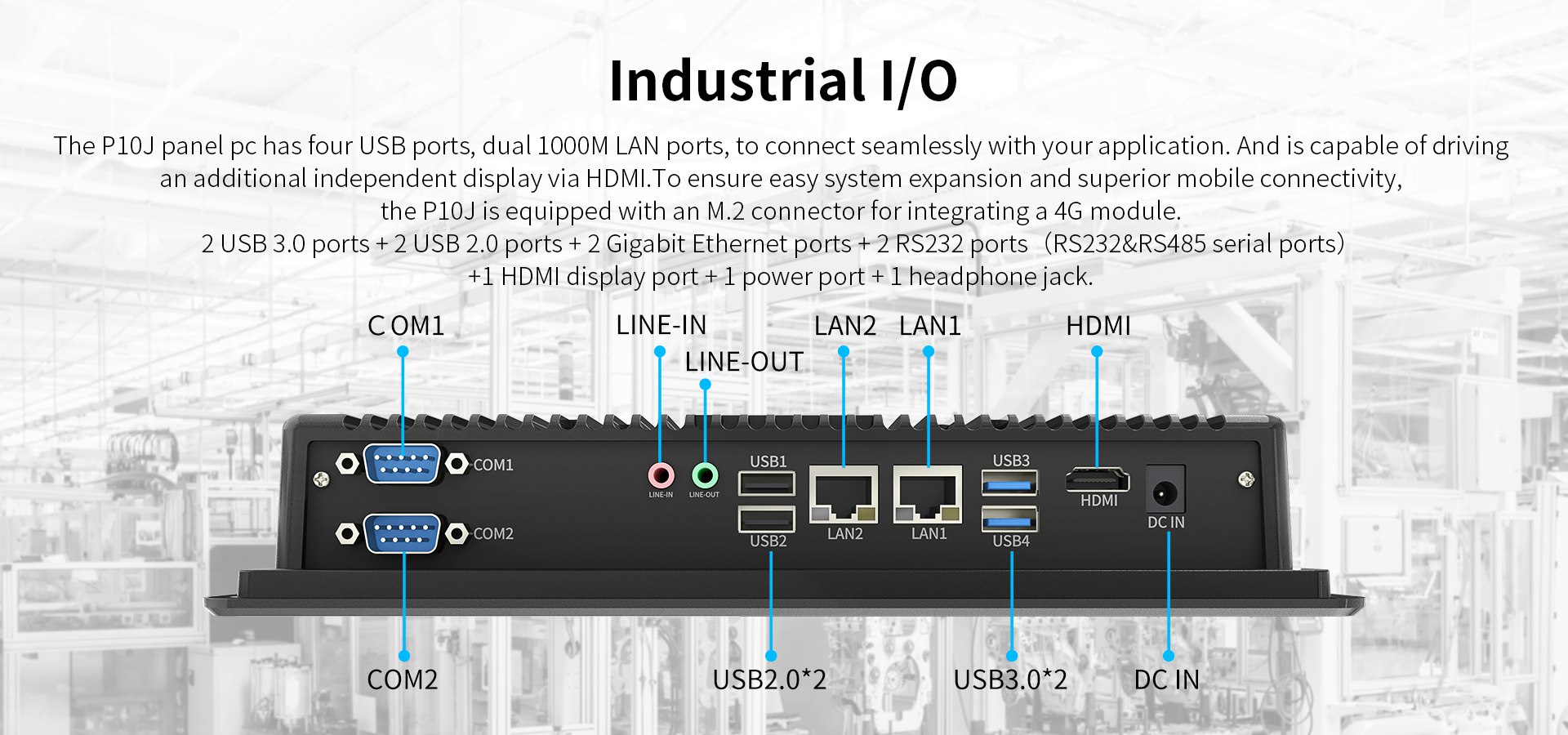

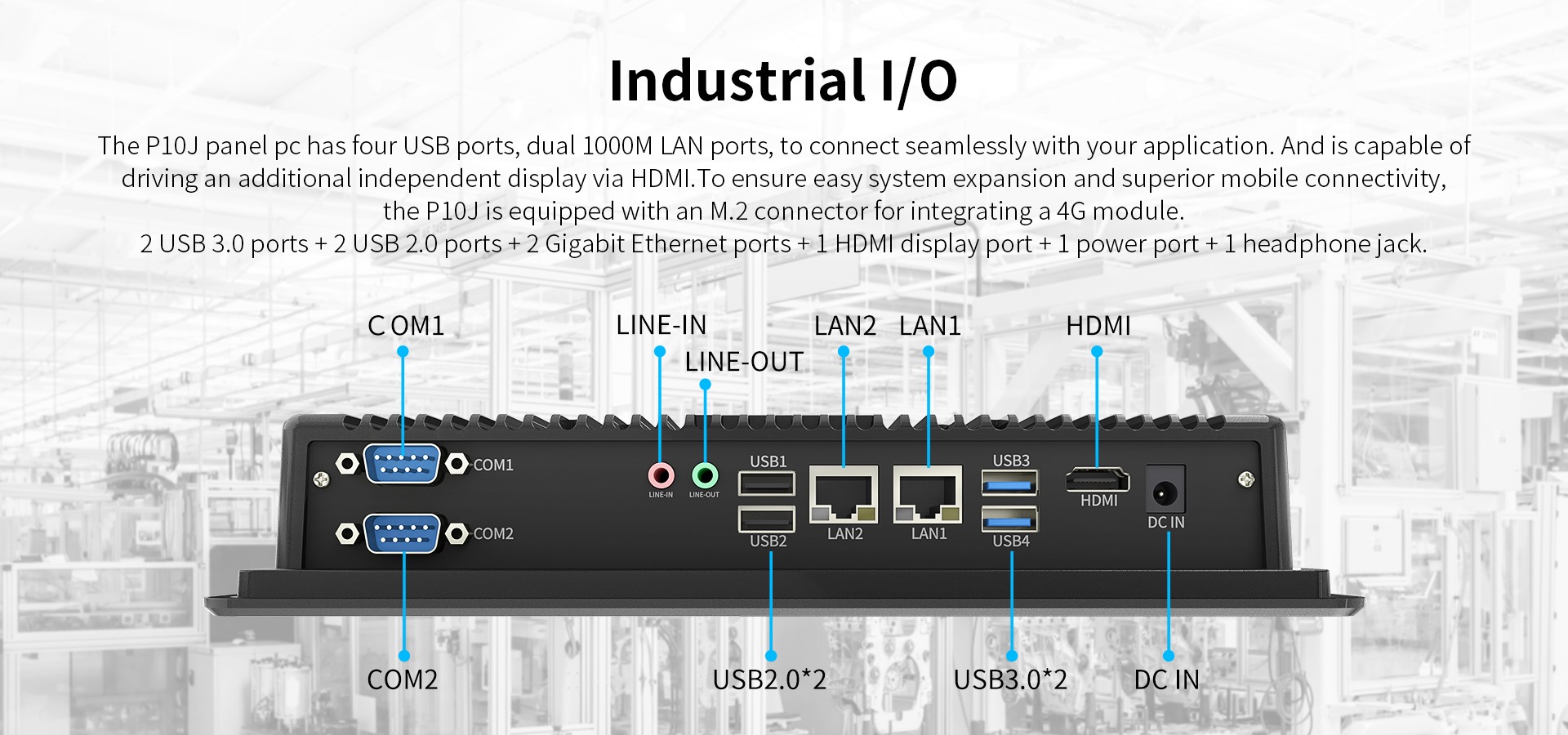

The P10J is designed to connect seamlessly with diverse industrial applications through its high-density I/O architecture. Featuring dual Gigabit LAN, independent HDMI dual-display support, and multi-protocol serial ports (RS232/RS485), it provides a robust hub for system expansion and superior mobile connectivity via its internal M.2 4G module slot.
Engineered to thrive in the most demanding computing climates, the P10J features a wide voltage power architecture supporting AC 100-240V inputs to neutralize external fluctuations. With a reliable operational range from -20°C to 60°C, it delivers mission-critical performance in extreme industrial environments.
The P10J panel PC offers impressive versatility across the industrial landscape. Engineered for seamless integration, it can be effortlessly installed using standard PPC mounting hook components or embedded into compact environments, providing a stable operational terminal for all advanced industrial applications.
257.2×170×45.95mm
1.2kg
Black
Size: 10.1 inch, resolution: 800×1280, brightness: 700cd/㎡
10 PCAP, G+G
SIM card *1
USB 3.0 *2, USB 2.0 *2
DC 12V4A *1
∮3.5mm Standard Earphone jack *1
RJ45 *2 (10/100/1000M adaptive)
HDMI *1
Optional: Extensive Slot SATA
Optional: Phoenix Terminal (External charging)
Optional: TPM (Hardware reservation)
