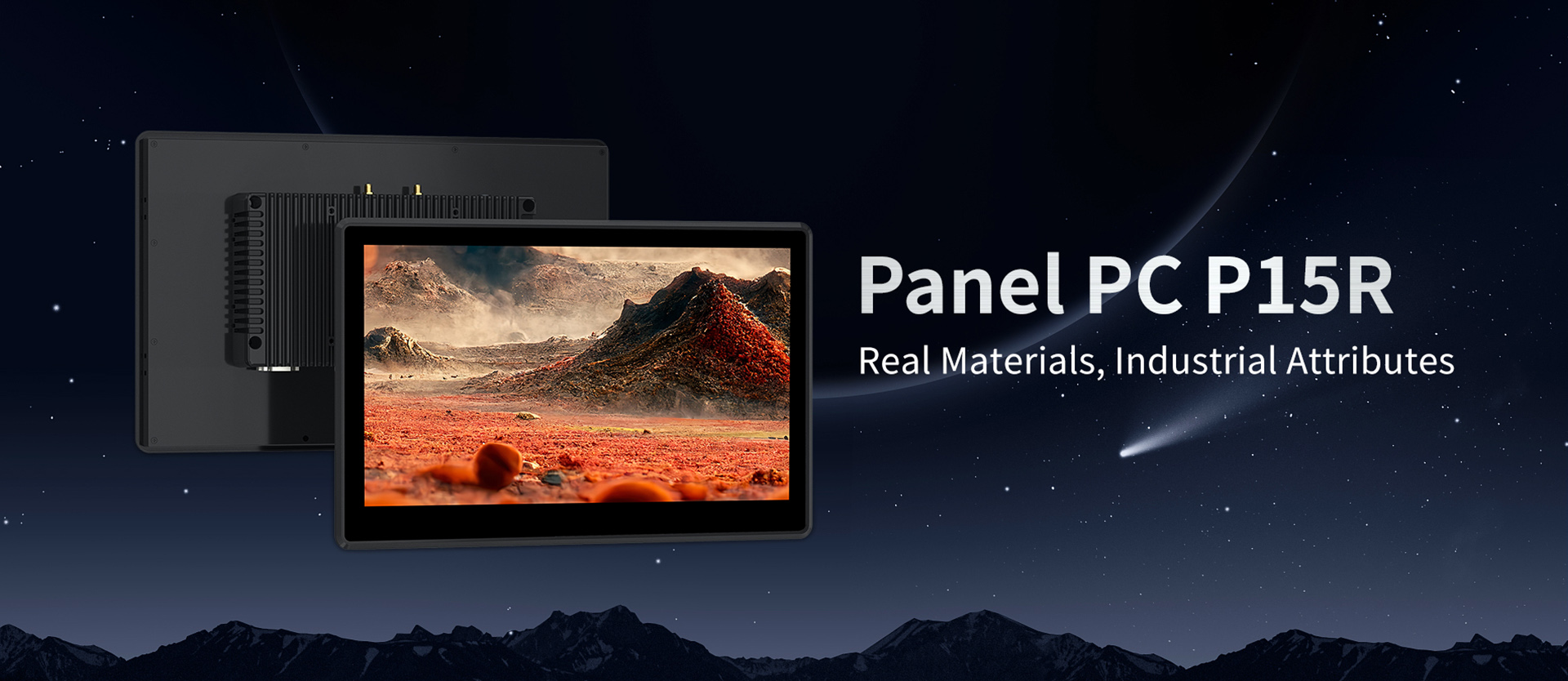

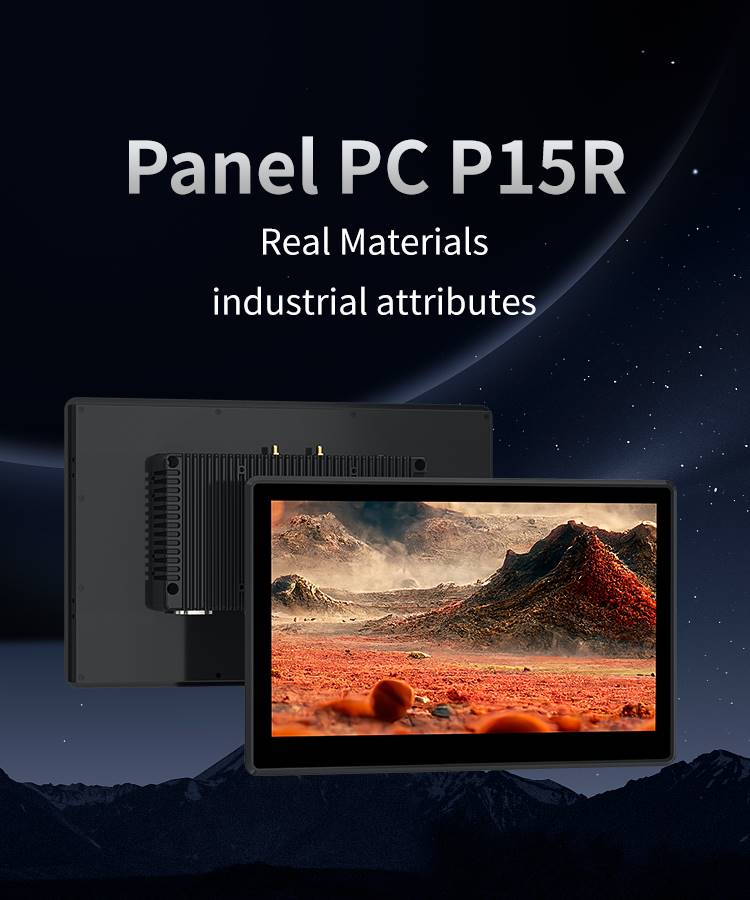

P15R is a 15.6-inch flat panel pc, equipped with ARM-based Rockchip processor and Android 11 operating system, which offers a powerful, cost-effective, stable and easy to use solution to industrial requirements. And with HMI, fully enclosed design, fanless cooling system, rich I/O interfaces, international Wi-Fi, various installation methods, it can reach the industrial-level performance and quality standards, and can be applied in a wide range of industrial scenarios, like industrial production workshops, industrial automation equipment, and monitoring systems.
Equipped with 4-core ARM architecture A55 processor and Android 12 operating system
Full 15.6-inch FHD display, the IP65-rated front panel protects against water and dust ingress
Fanless design, excellent in heat dissipation and strong stability performance
Wide voltage and temperature working performance, perfect for 24/7 use in all weather conditions
Rich interfaces, including multiple USB/RS232/LAN/HDMI and other I/O ports, easily meet various scenario requirements
MiniPCIE slot, can be expanded with communication modules, solid-state drives and other peripherals
Support 802.11b/g/n protocol, dual Wi-Fi antennas and Bluetooth 5.0
Standard PPC mounting hook component, easy to install and supports various installation methods such as embedded and wall-mounted

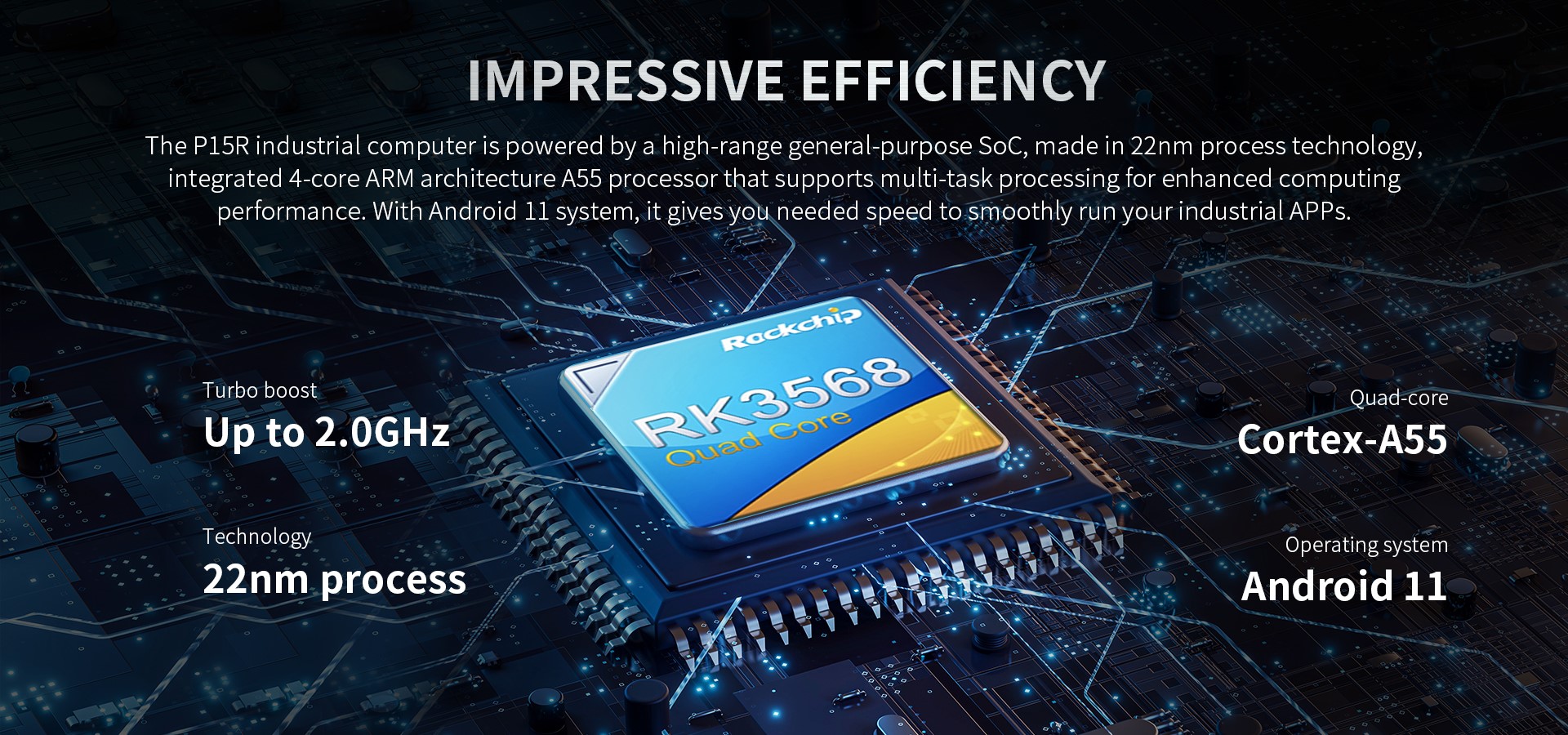

Powered by a high-range general-purpose SoC engineered with 22nm process technology, the P15R integrates a quad-core ARM Cortex-A55 processor for superior efficiency. Running on the robust Android 11 operating system, it provides the deterministic speed required for multi-task processing and the smooth execution of demanding industrial applications.

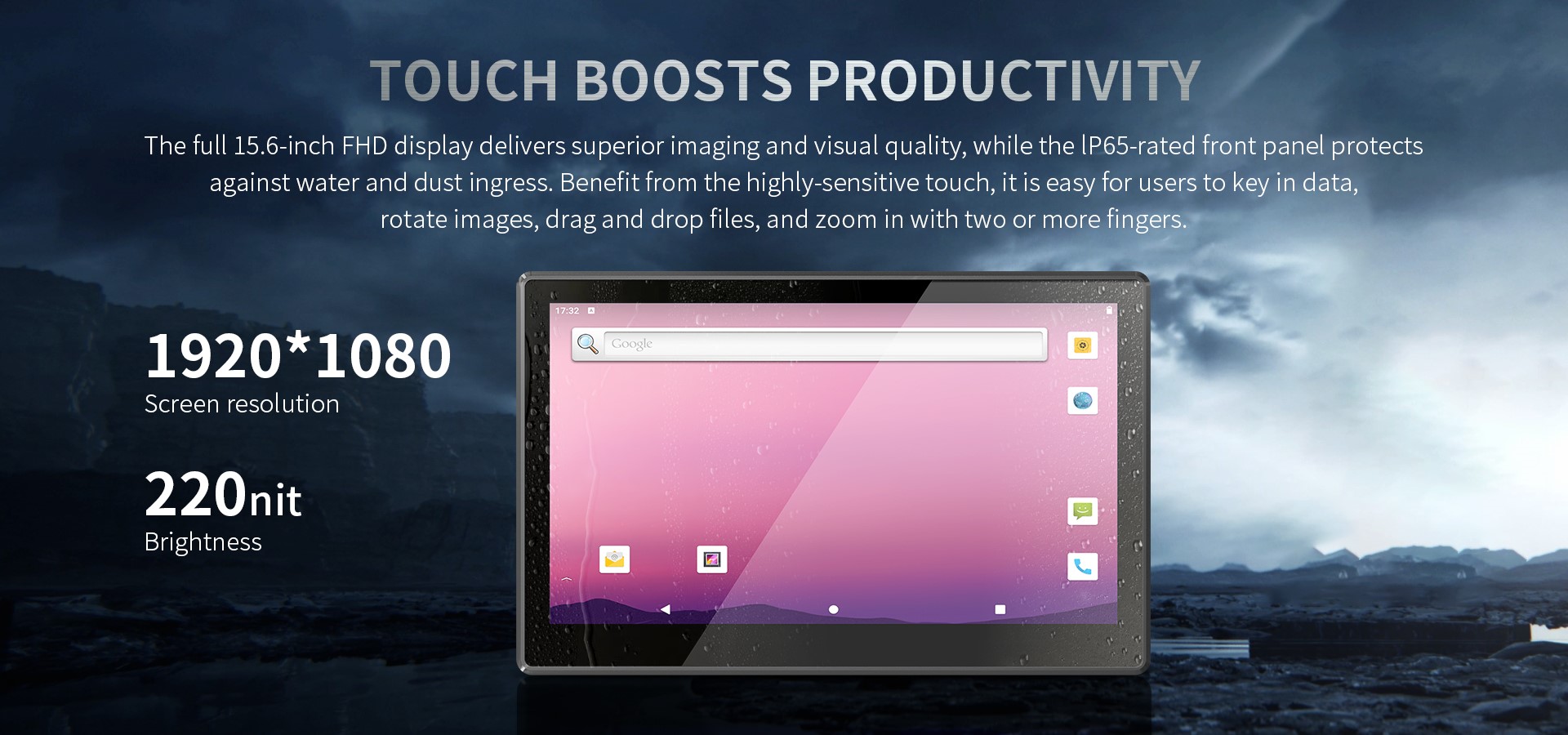

The P15R's expansive 15.6-inch FHD display delivers superior imaging quality for mission-critical monitoring, while the IP65-rated front panel provides uncompromising protection against water and dust ingress. Empowering operators with a highly-sensitive touch interface, it facilitates effortless data entry, multi-finger gestures, and precision zoom for optimized industrial workflows.

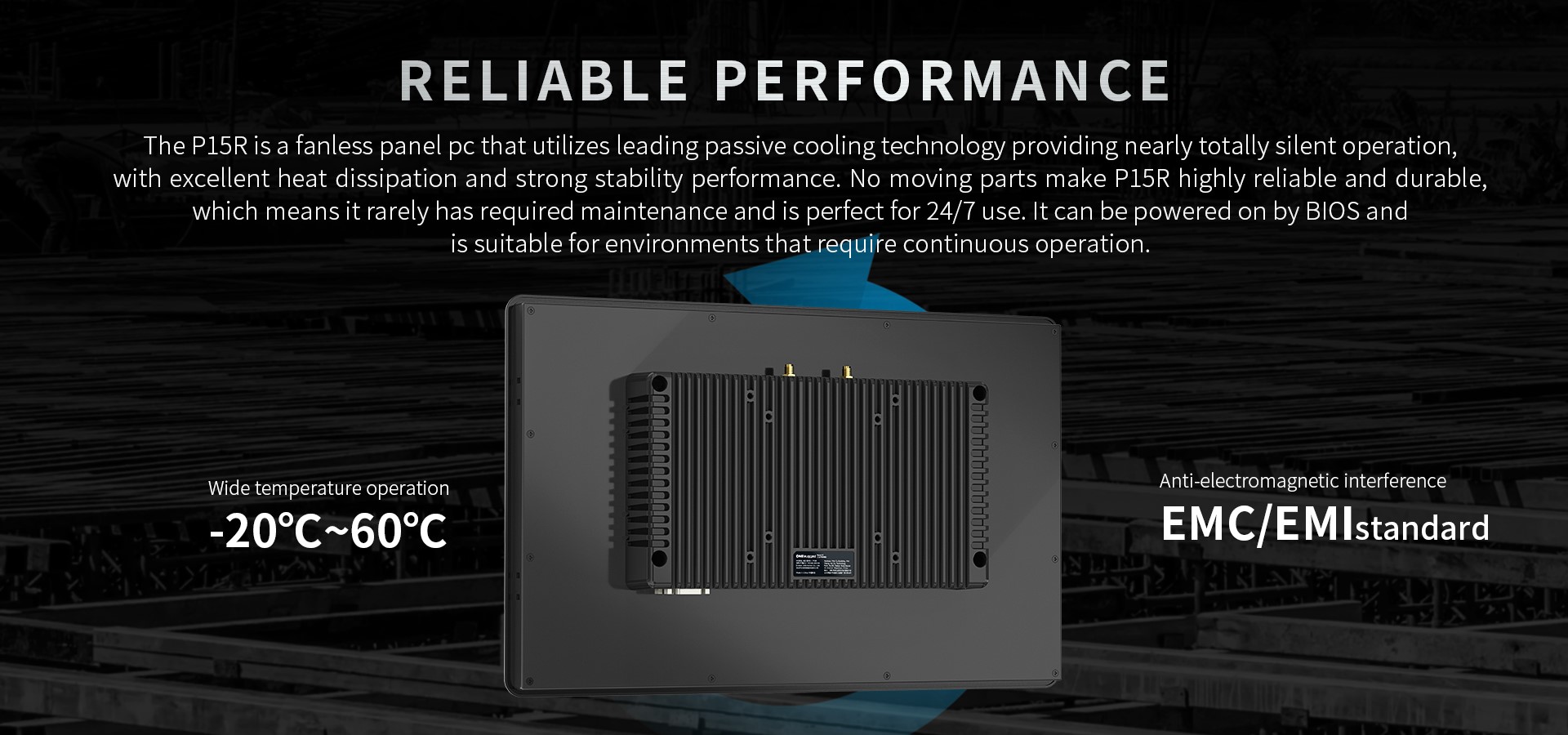

The P15R is a fanless industrial panel PC that leverages leading passive cooling technology to ensure nearly silent operation and superior heat dissipation. Engineered with zero moving parts, it delivers exceptional durability and requires minimal maintenance, making it ideal for 24/7 continuous duty cycles in demanding automation environments with BIOS-level Auto Power On support.
The P15R is designed to interface seamlessly with complex industrial ecosystems. Featuring a rich port matrix including dual Gigabit LAN, quad USB ports, and dual-protocol serial support (RS232/RS485), it empowers superior operational control. With the ability to drive an independent HDMI display and an integrated Mini PCIe slot for cellular or wireless expansion, it ensures your system remains flexible and future-ready.

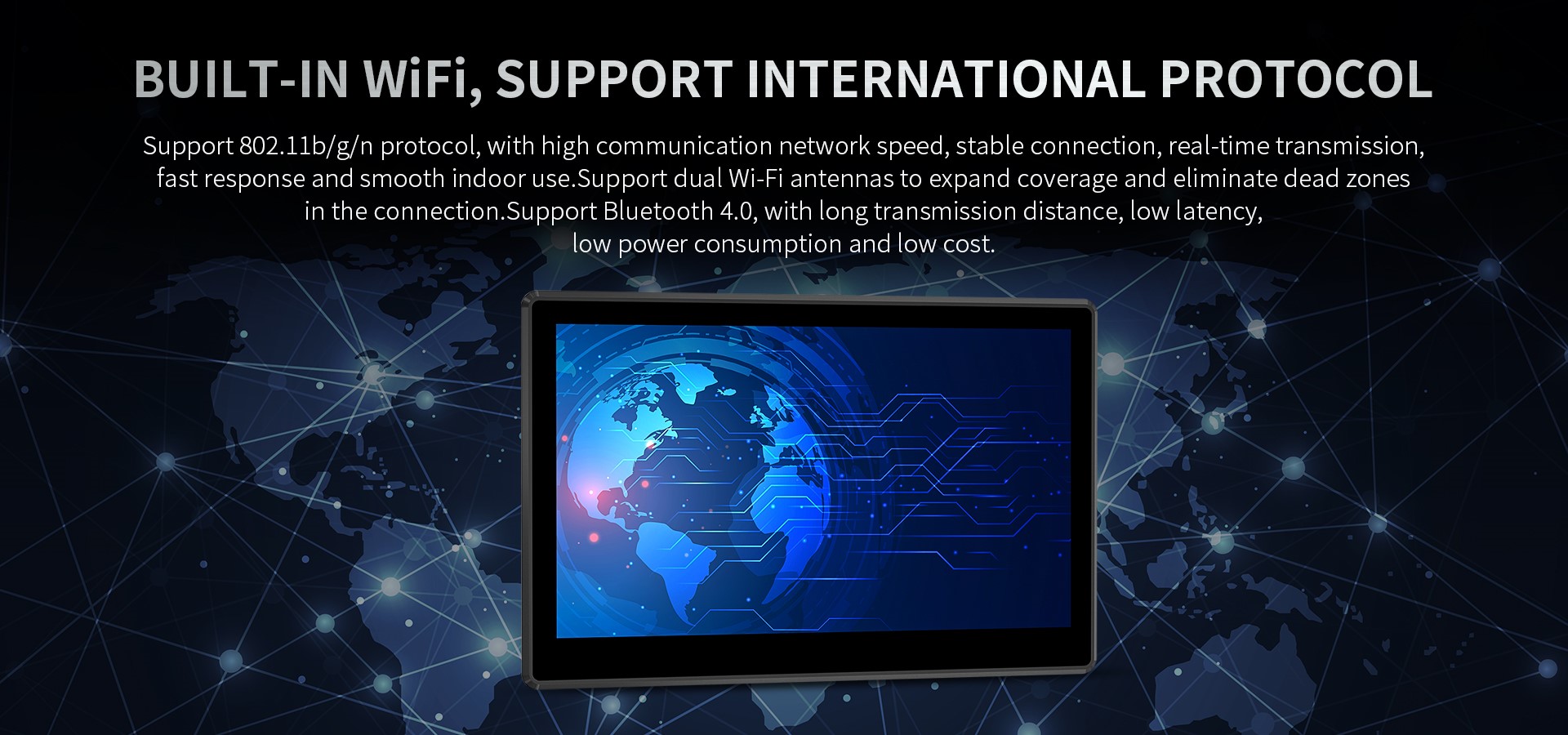

The P15R supports the 802.11b/g/n protocol, delivering high-speed, stable wireless networking and real-time transmission for smooth indoor industrial use. Featuring dual Wi-Fi antenna support to expand coverage and eliminate connection dead zones, it also integrates Bluetooth 4.0 for long-distance, low-latency, and cost-effective peripheral connectivity.

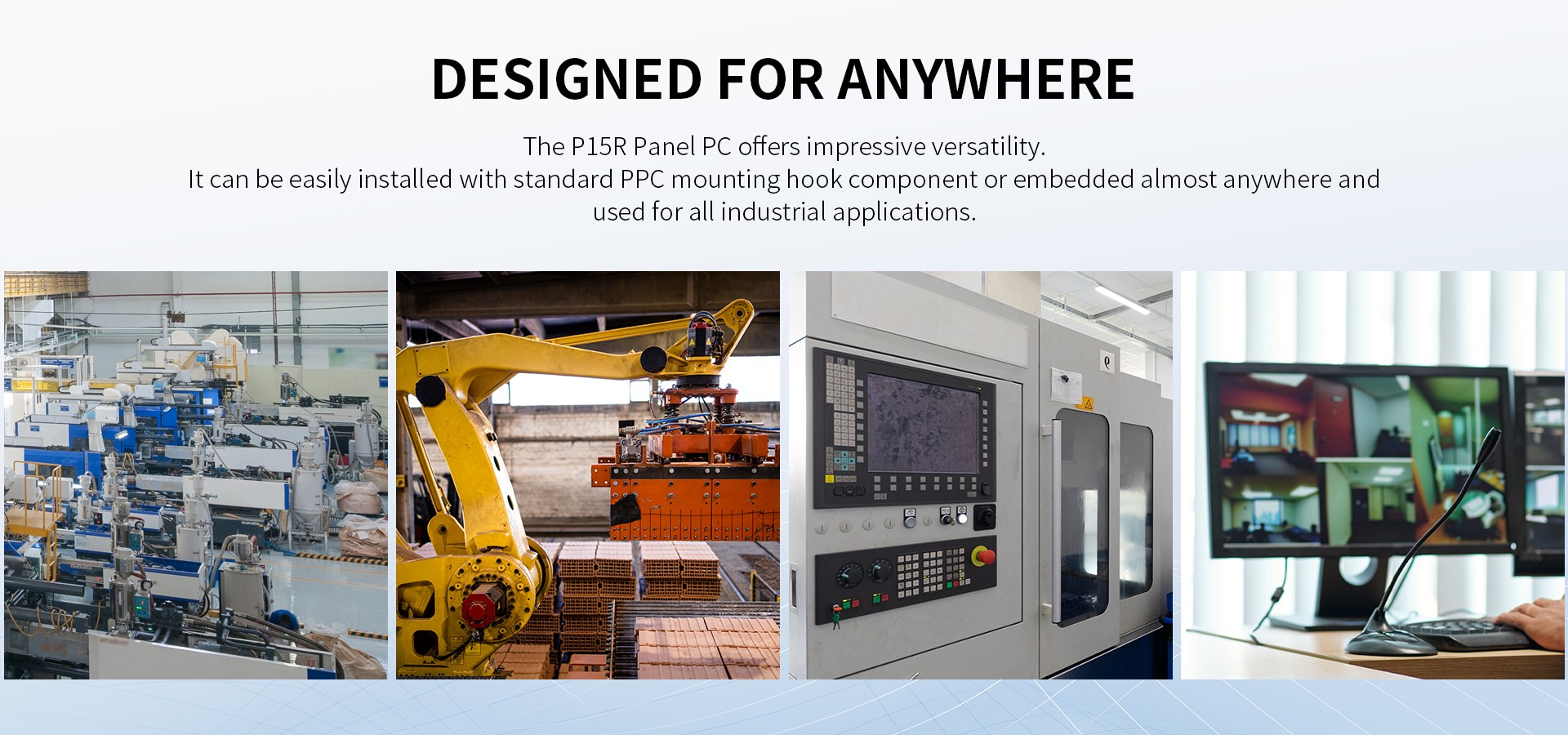

Engineered for maximum spatial adaptability, the P15R panel PC offers impressive versatility across the industrial landscape. It supports seamless physical integration through standard PPC mounting hooks or custom embedded configurations, facilitating a stable and efficient operational terminal for all advanced industrial applications.
388.63×248.43×54.95mm
2.4kg
Black
Size: 15.6 inch, resolution: 1920x1080, brightness: 220cd/㎡
10 PCAP
USB 2.0 *2, USB 3.0 *2 OTG
DC IN 12-24V *1
∮3.5mm Standard Earphone jack *1
RJ45 *1 (10/100/1000M adaptive)
DB9 RS232 *2
HDMI *1
