Equipped with 21.5-inch large screen, up to 178 ° viewing angle, industrial-grade display technology, with 1920 × 1080 resolution, support for 10-point capacitive touch; with a variety of main controller connection, can be wall-mounted or embedded in the control cabinet; built-in rich input display interfaces, the back of the direct-plug-in design, support for HDMI, VGA (Analog RGB) and DVI interface types, to meet the external display needs; metal body, sturdy and stable, with IP65-grade flat panel and finned back shell, with dust-proof, oil-fouling, anti-electromagnetic interference, wide temperature characteristics. Meet the needs of external display; metal body, sturdy and stable, equipped with IP65 level flat panel and fins back shell, with dust, oil, anti-electromagnetic interference, wide temperature and other characteristics, through a number of industrial-grade reliability tests, facing a variety of harsh environments is still stable operation, at any time to be active in the front-line scenarios.
Large 21.5-inch screen with up to 178° viewing angle
Industrial-grade display technology, 1920 x 1080 resolution HD presentation
10-point capacitive touch, fingertip and screen response at the same frequency
Supports HDMI, VGA (Analog RGB) and DVI interface types
Connection with various master controllers, optional wall-mounted/flush-mounted installation
-20℃-60℃ wide temperature operation, stable operation in harsh environments
Equipped with IP65 rated flat panel and finned backshell, it is dust-proof, oil-proof, anti-electromagnetic interference, and wide temperature
The PT21 series elevates industrial visualization with a large-format high-performance panel. Engineered for precision and longevity, it provides a seamless HMI platform for complex industrial monitoring and automation control.
21.5" Pro-Grade Panel.
Capacitive Touch Logic.
IP65 Front Protection.
Slim Bezel Architecture.

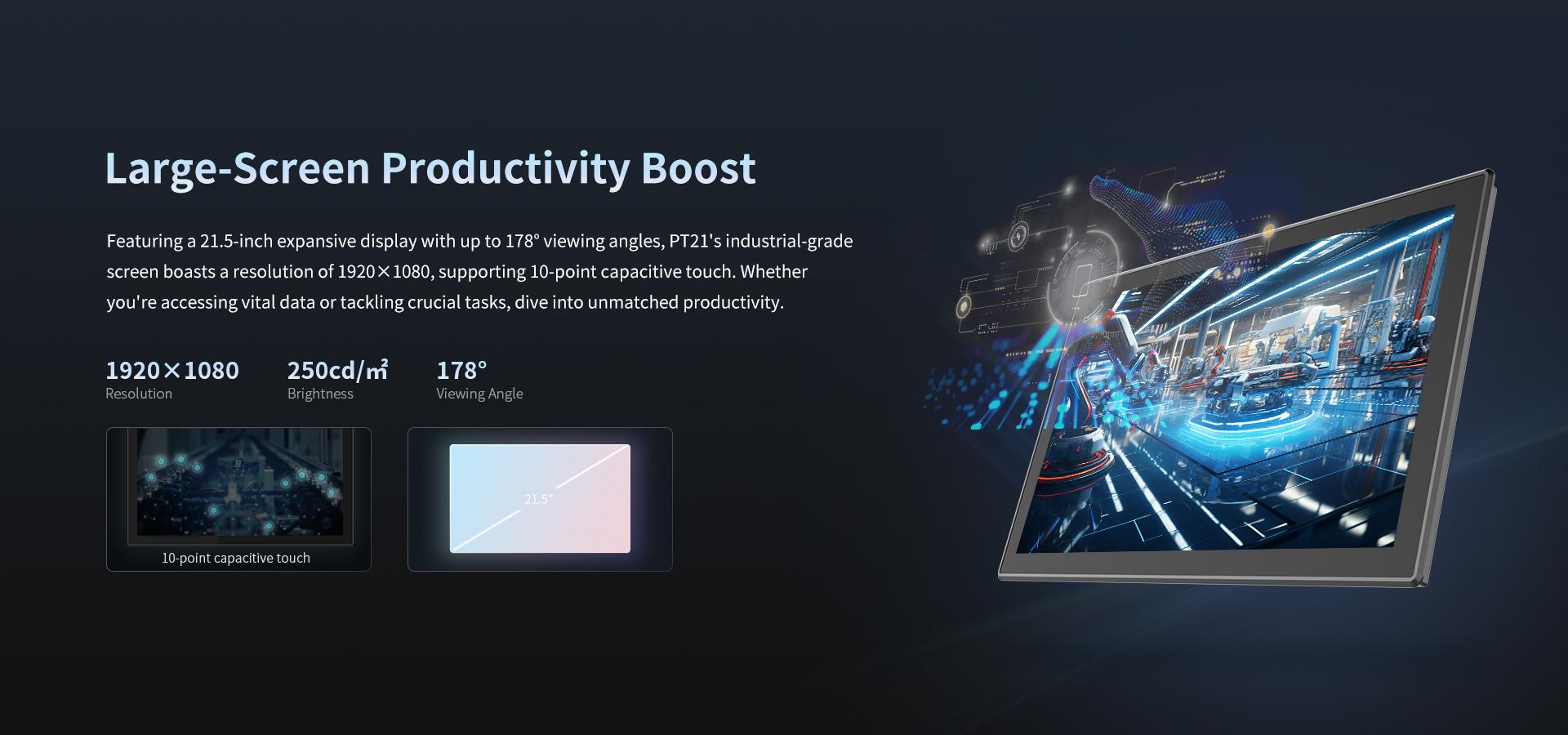

The PT21 features a 21.5-inch industrial screen with 1920 x 1080 resolution and 178* ultra-wide viewing angles. Engineered for data-intensive HMI tasks, it ensures accurate visuals and seamless operational productivity.
Full HD Resolution.
Optimized Brightness.
Ultra-Wide Accuracy.

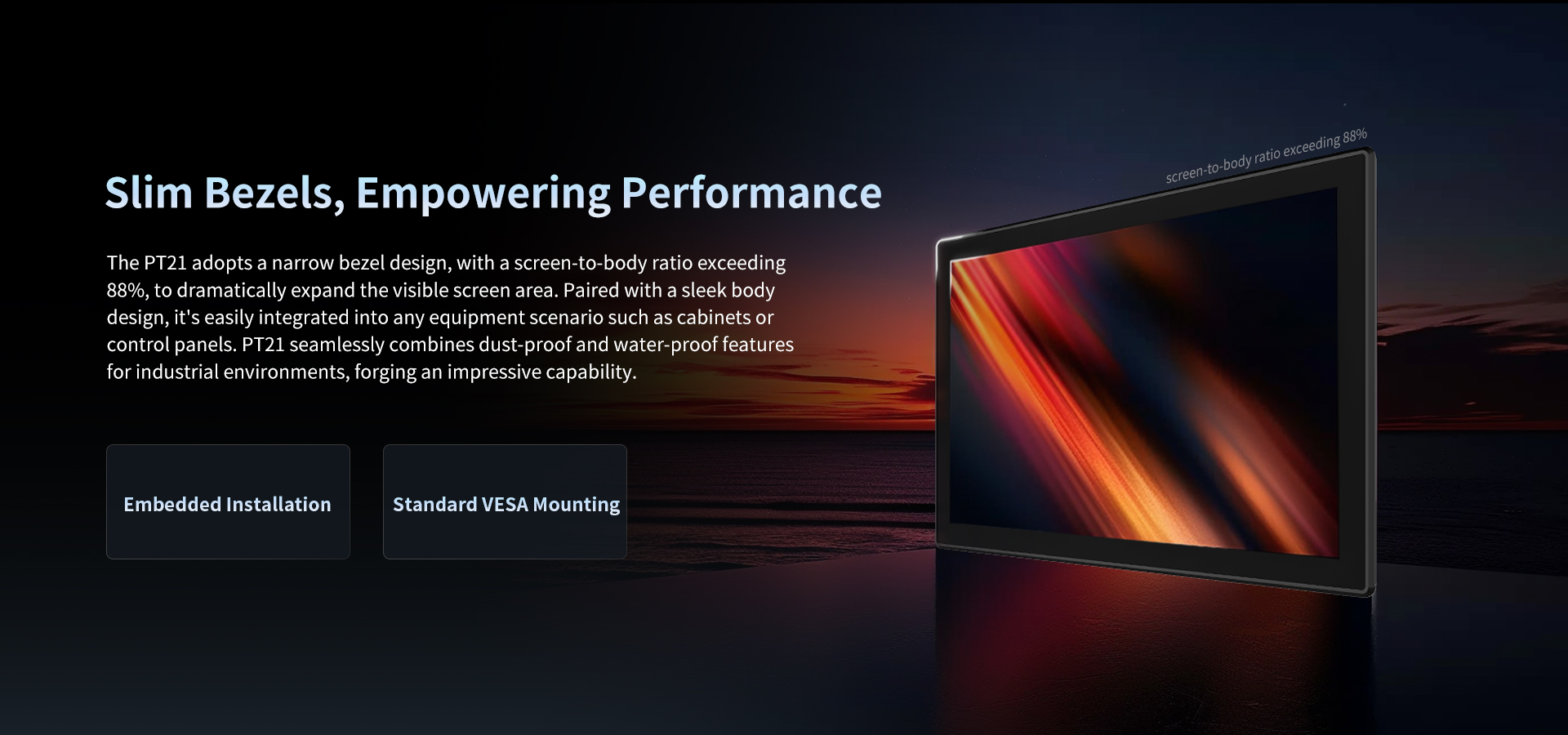

The PT21 adopts a narrow bezel design with an 88% screen-to-body ratio for maximized visible area. Its sleek chassis is engineered for seamless integration into industrial cabinets via standard VESA or embedded mounting.
Narrow Bezel Visual Efficiency.
Seamless Cabinet Integration.
Dual Industrial Mounting Support.
Dust & Water-Proof Resilience.

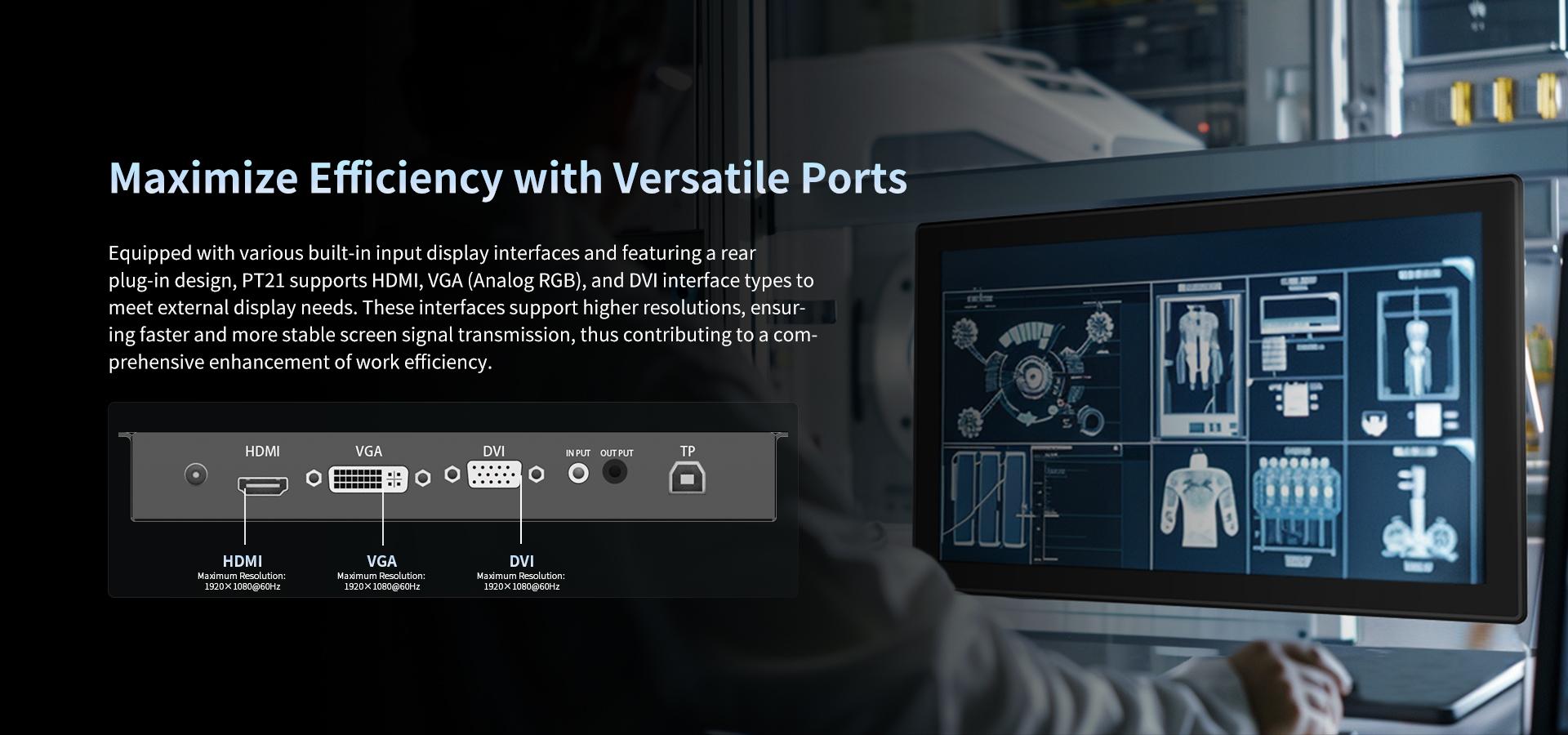

The PT21 integrates a comprehensive rear-access I/O suite for seamless industrial connectivity. Featuring HDMI, DVI, and legacy VGA support, it ensures stable Full HD signal transmission at 60Hz for mission-critical automation nodes.
High-Fidelity Signal Stability.
Analog Device Compatibility.
Rapid 10-Point Touch Link.
Field Media & Alert Logic.

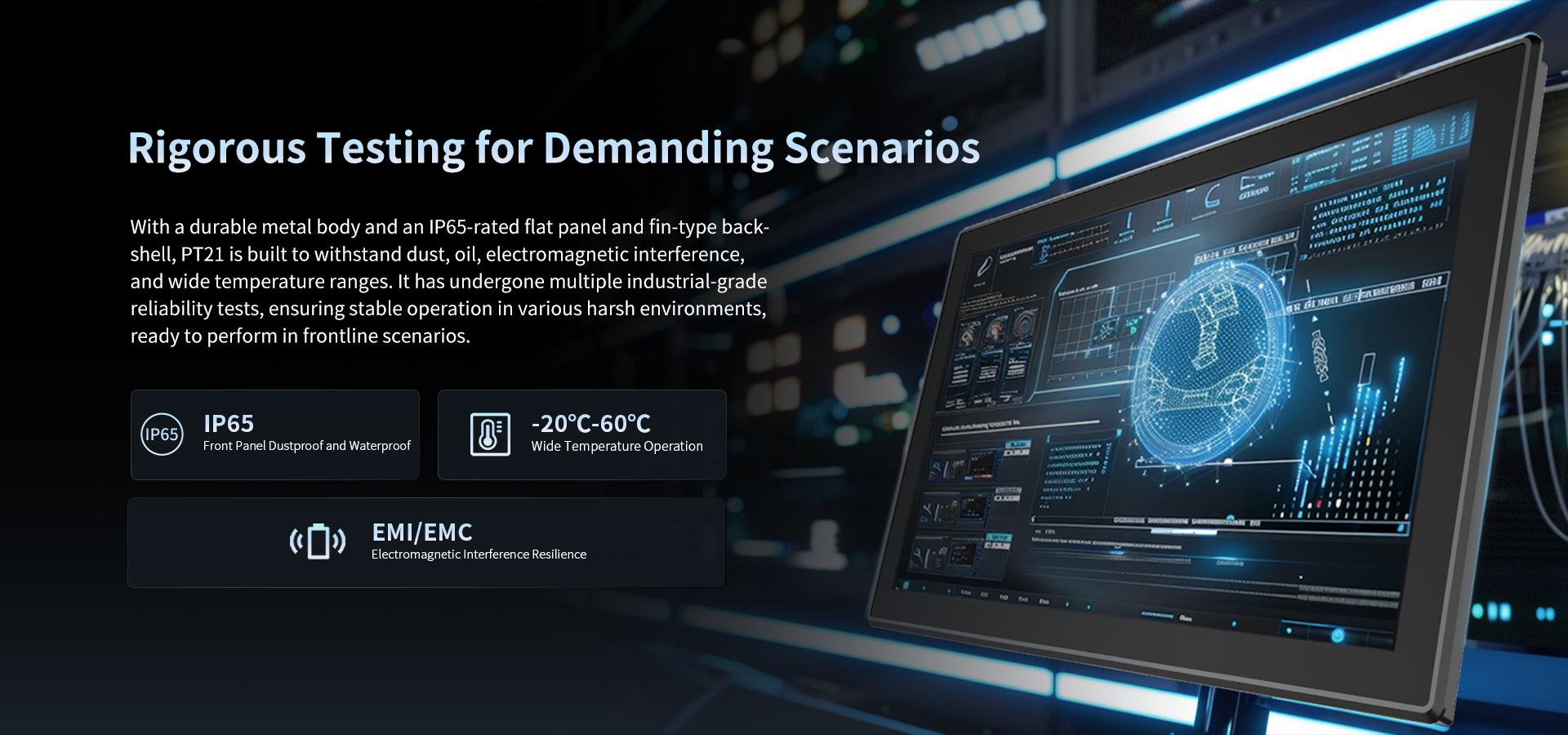

Engineered with a durable metal body and an IP65-rated flat panel, the PT21 is built to withstand dust, oil, and electromagnetic interference. Its fin-type backshell ensures stable operation in harsh environments from -20 to 60 temperature.
Front-Panel Dust/Water Seal.
Wide Temp Operational Range.
Interference Resilience Logic.
Metal Passive Heat Dissipation.
537.02 x 324.02 x 57.60 mm
TBD
Black
Type: LCD
Size: 21.5 inch 16:9
Resolution: 1920x1080
Brightness: 250cd/㎡
10-point capacitive touch (Optional without touch control)
DC 12V *1
HDMI *1
VGA *1
DVI *1
∮3.5mm Standard AUDIO Port *1
∮3.5mm Standard Earphone Jack *1
USB TYPE-B
