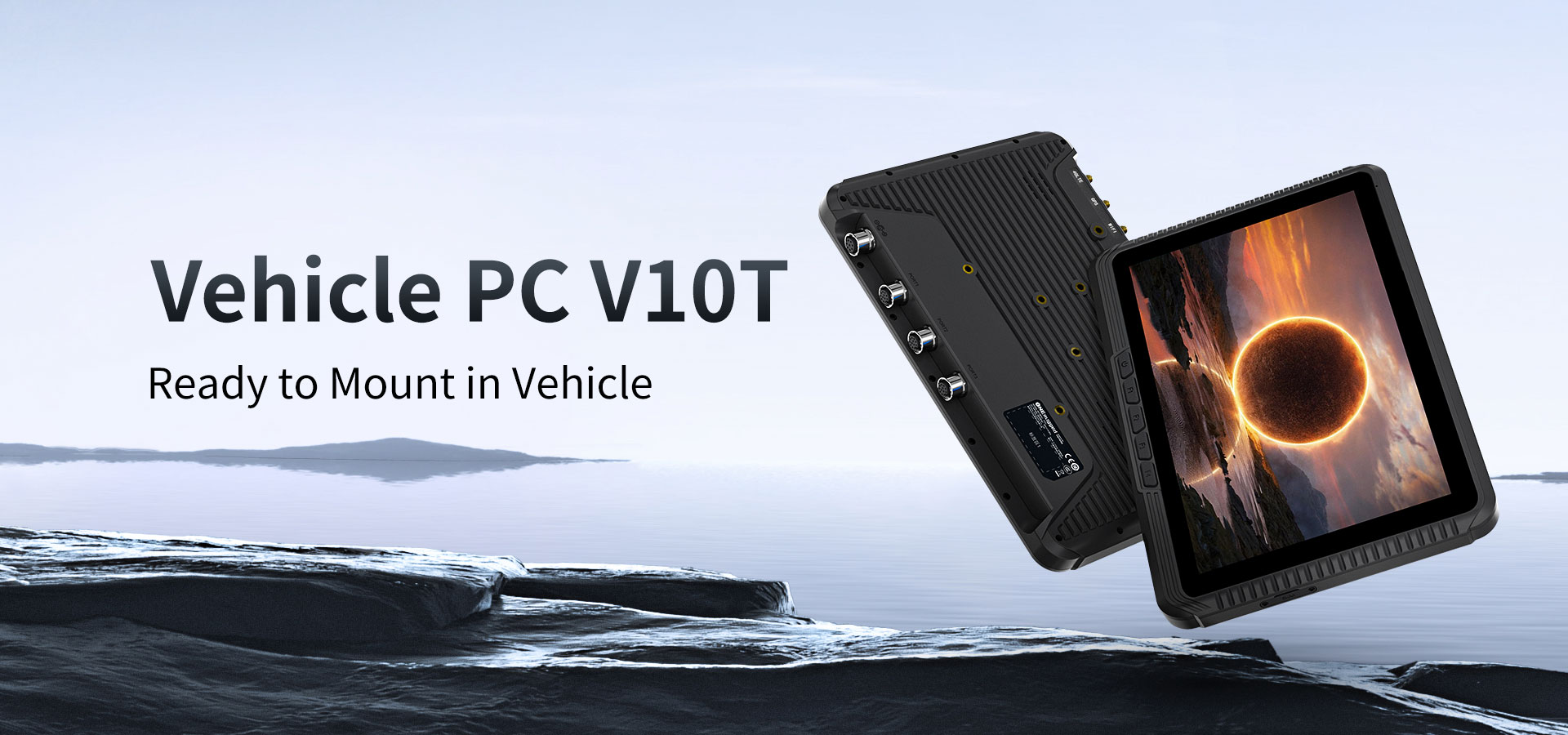

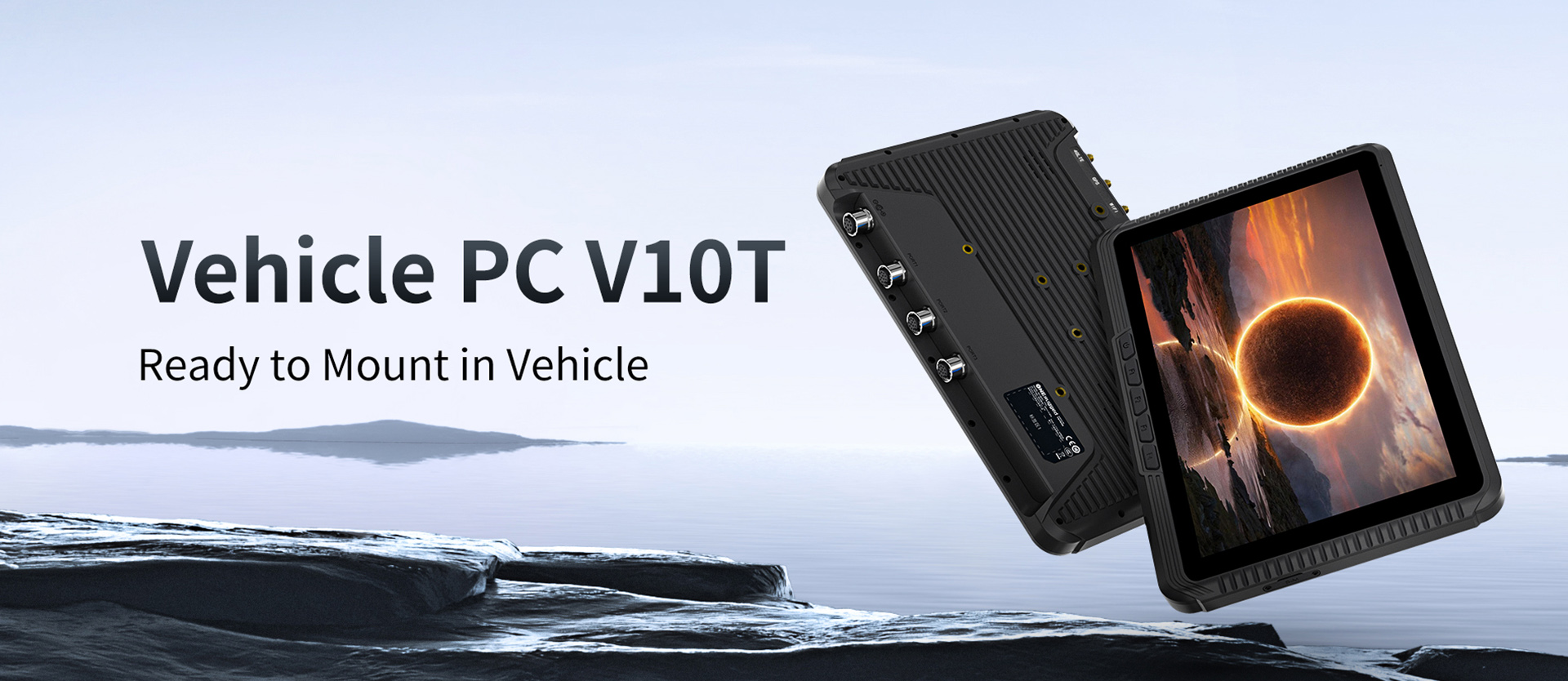

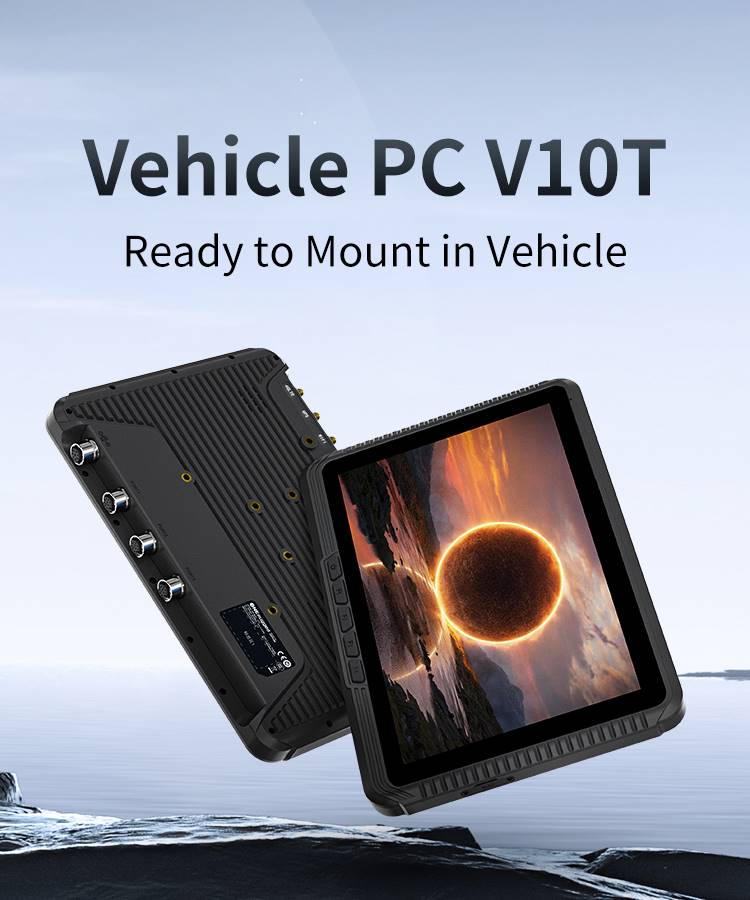

V10T is a 10.1-inch Android vehicle pc, which is specially designed for in-vehicle applications. Equipped with ARM octa-core processor and Android 12 operating system, it is more powerful, and its integrated Wi-Fi-5, 4G LTE and GPS functions support available vehicle mushroom antennas, the coverage area is larger and the signal reception is better. Moreover, it has passed the dustproof, waterproof, anti-vibration and wide temperature tests, and with the M12 aviation plugs, wide voltage module, VESA and RAM mounting methods, etc., it can keep stable at all times and can meet all vehicle types, like forklifts, cranes, trucks.
Equipped with high-performance ARM octa-core processor and Android 12 OS, up to 4GB+64GB capacity
10.1-inch screen with 1000-Nits high definition display, multiple-point touch panel and customized keys, ensuring outdoor worker visibility
4G LTE, dual-band Wi-Fi, Bluetooth 5.2 and GPS/Glonass/Beidou functions, with available vehicle mushroom antenna
Aviation plug charging interface, switchable for cigarette lighter interface or Φ4.0 power port, and a 9V-36V DC wide voltage module is optional
Supports the battery-free mode, another optional 3.7V/2000mAh capacity battery
Available multiple aviation plug interfaces, and also supports USB/DB9/LAN/CAN and other interface extensions
Two bracket mounting methods, VESA and RAM are suitable for almost any vehicle-mounted workplaces
IP65 dustproof and waterproof, morphed to endure outdoor applications prone with shock, vibration and extreme temperature
The V10T is an advanced 10.1-inch Android vehicle PC engineered for seamless integration into industrial environments. Serving as a robust industrial fleet terminal, it provides unyielding stability and performance for modern fleet management tablet applications.
High-definition display for complex data visualization.
Powerful processing for mission-critical tasks.
Standard VESA and RAM support for easy installation.
The V10T is built on a high-performance octa-core CPU with dual Arm Cortex-A76 processors clocking up to 2.2GHz. This powerful octa-core Android vehicle tablet features a Mali G57 industrial tablet GPU and the efficient Android 12 OS, ensuring smooth interfaces and stable support for complex in-vehicle applications.
The full 10.1-inch IPS display with 1000 Nits brightness provides excellent readability in bright ambient light. As a premium sunlight readable tablet, the V10T features front shortcut buttons and a 2W rear speaker to ensure peak efficiency for any 10.1 inch rugged android vehicle PC deployment.
Ensures uncompromising visibility in direct sunlight and harsh glare.
Front-mounted programmable buttons for rapid task execution.
Clear sound delivery even in noisy industrial surroundings.
Ultra-rugged yet easy to carry for off-vehicle operations.

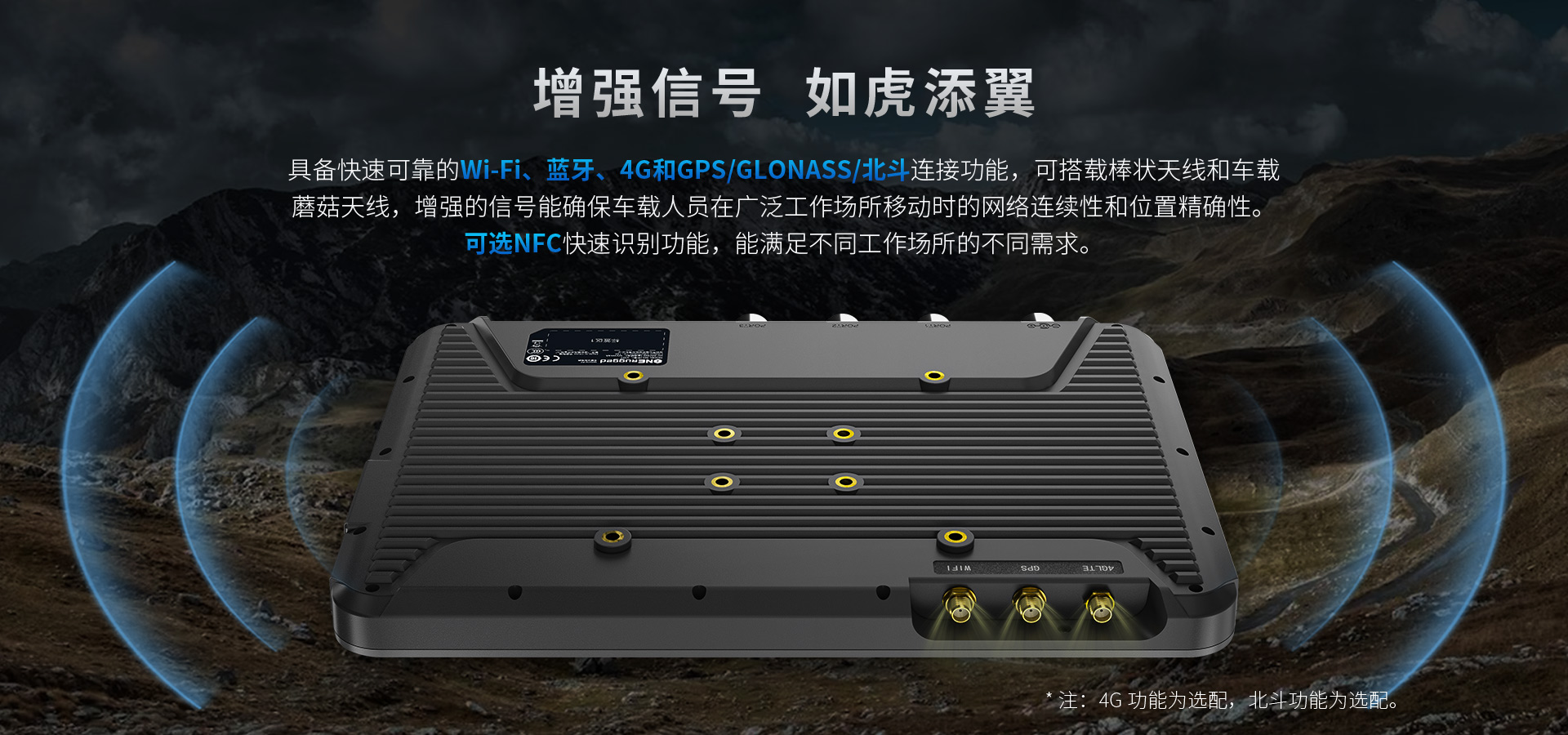

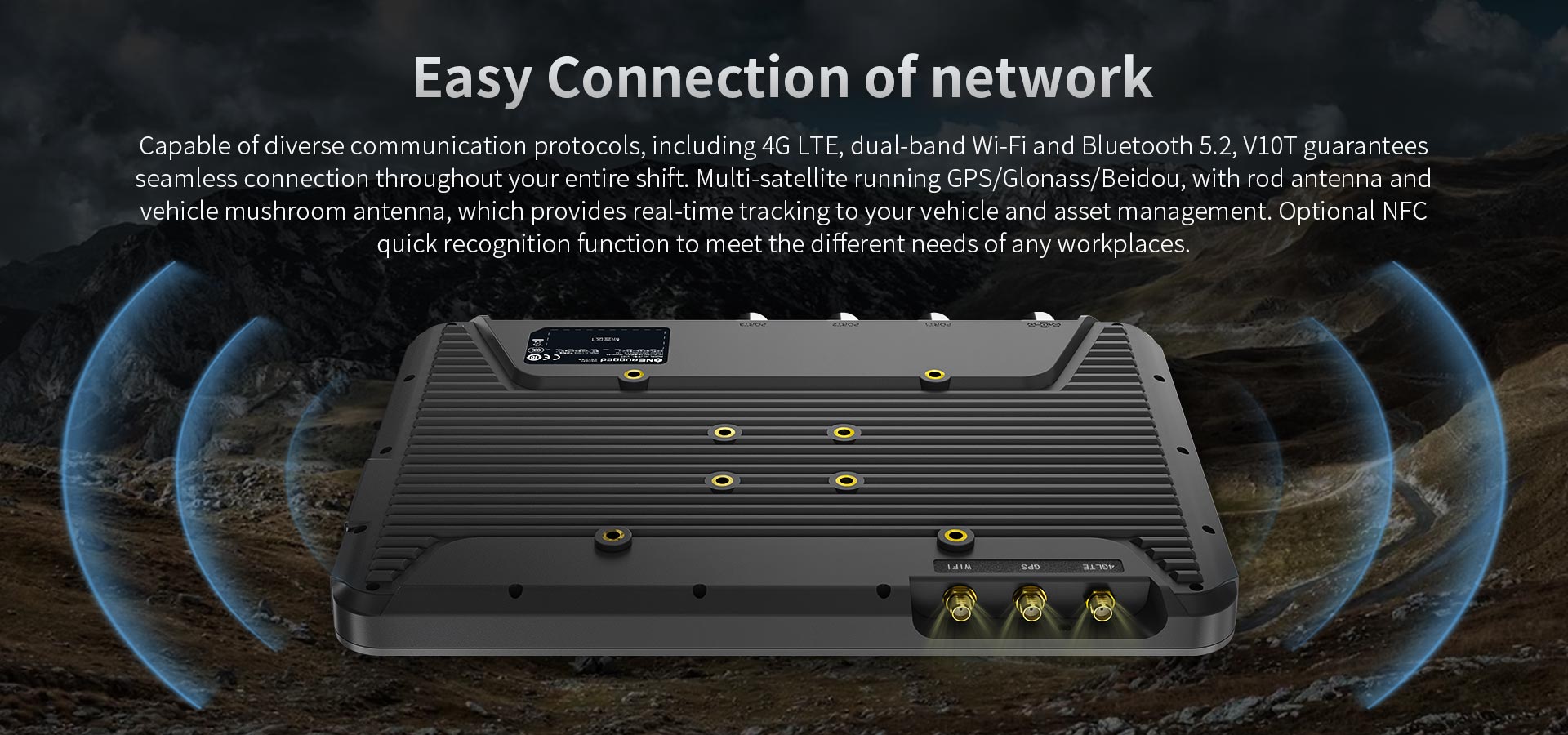

Equipped with diverse communication protocols, the V10T ensures a 24/7 seamless link. As a high-performance 4G LTE vehicle monitor, it supports multi-satellite positioning and optional NFC for a complete industrial Android tablet with NFC experience.
Ensures persistent cloud connectivity and stable local data exchange.
GPS/Glonass/Beidou with rod and mushroom antennas for asset management.
Quick recognition functionality to meet diverse workplace identification needs.

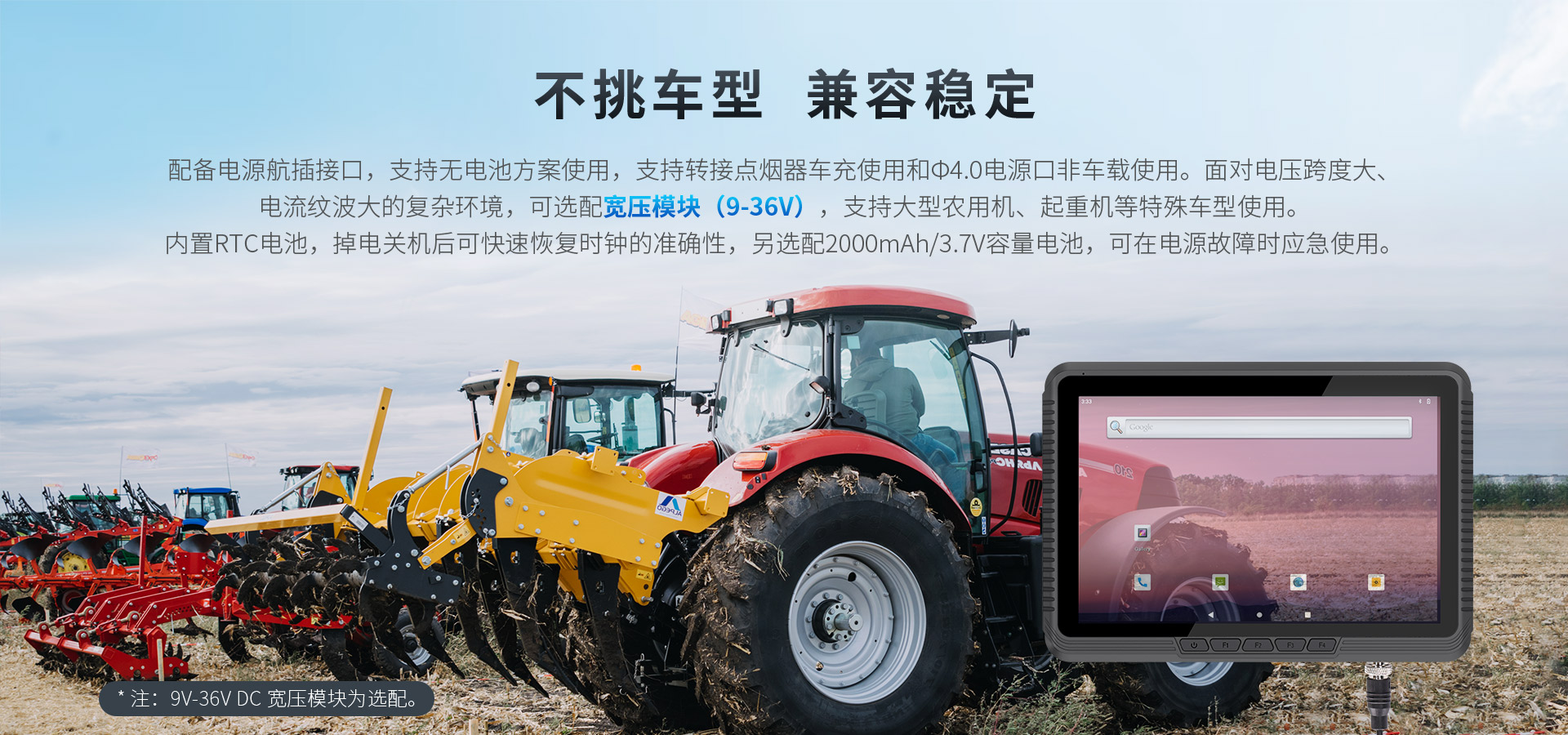

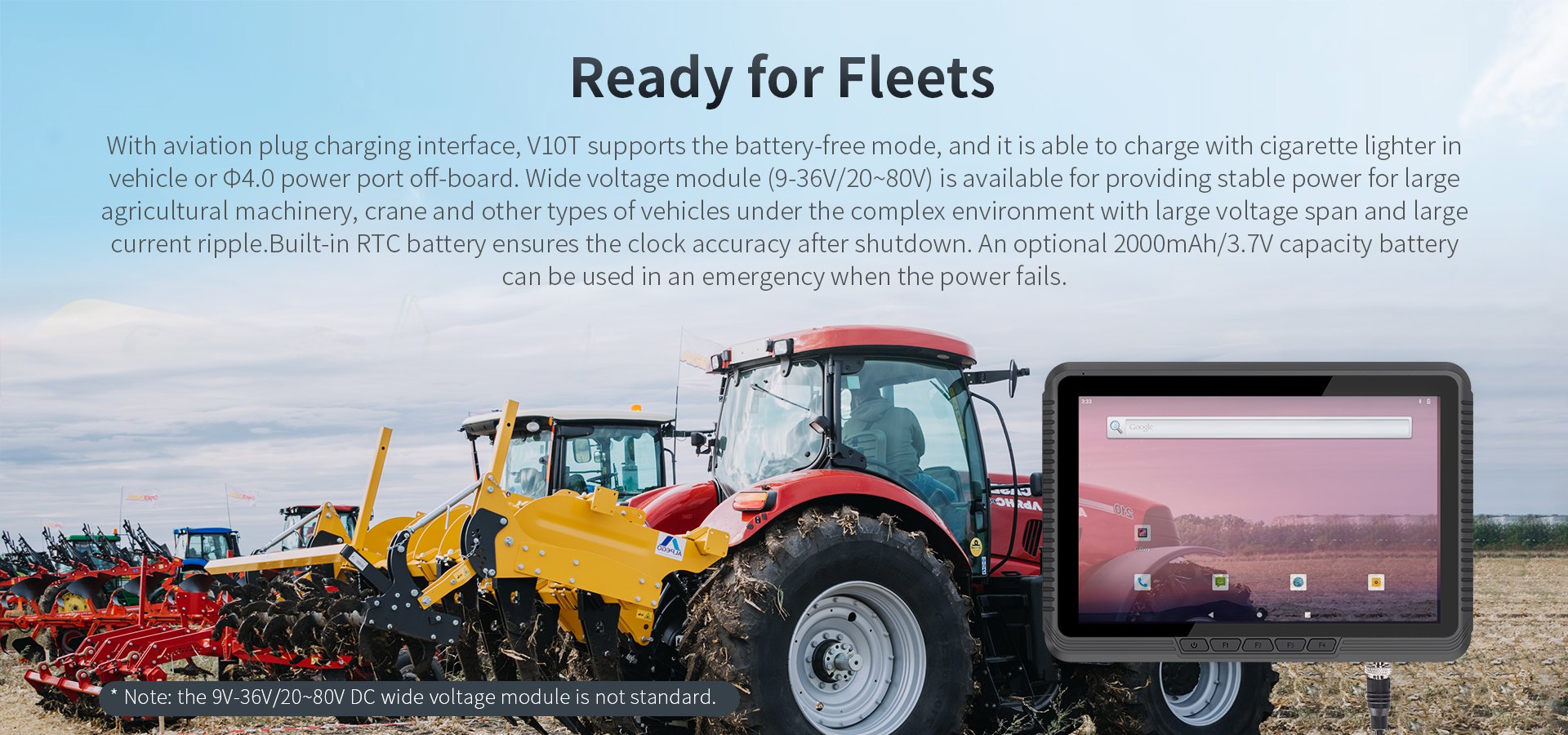

Featuring an aviation plug interface, the V10T supports battery-free mode and stable charging via vehicle cigarette lighters. As a wide voltage rugged vehicle computer, it provides reliable energy for 10.1 inch agricultural tablets and cranes operating under complex current ripple conditions.
9-36V / 20-80V input support for diverse vehicle types.
Resistant to large voltage spans and industrial current ripples.
Ensures absolute clock accuracy even after complete shutdown.
Optional 2000mAh battery for critical failsafe protection.

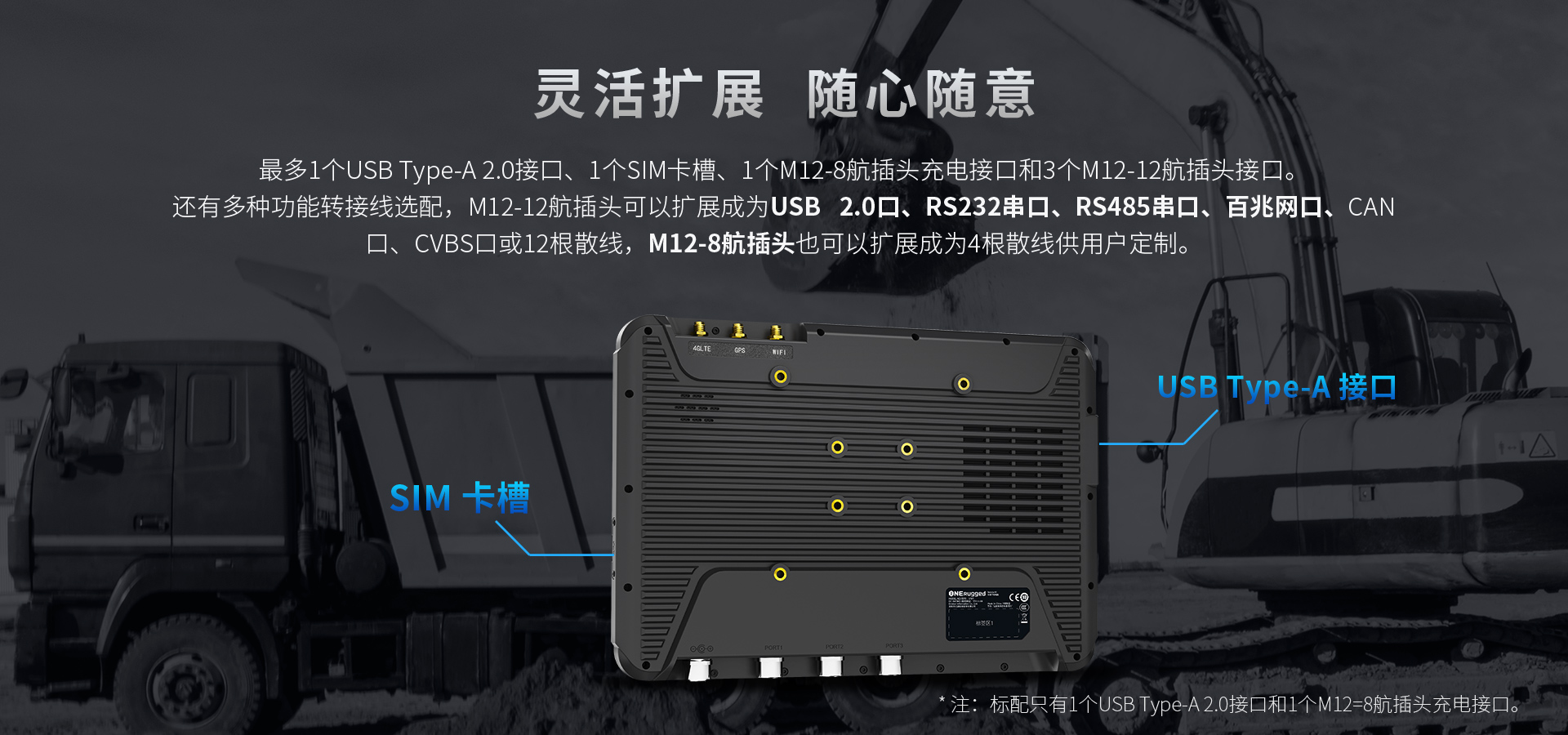

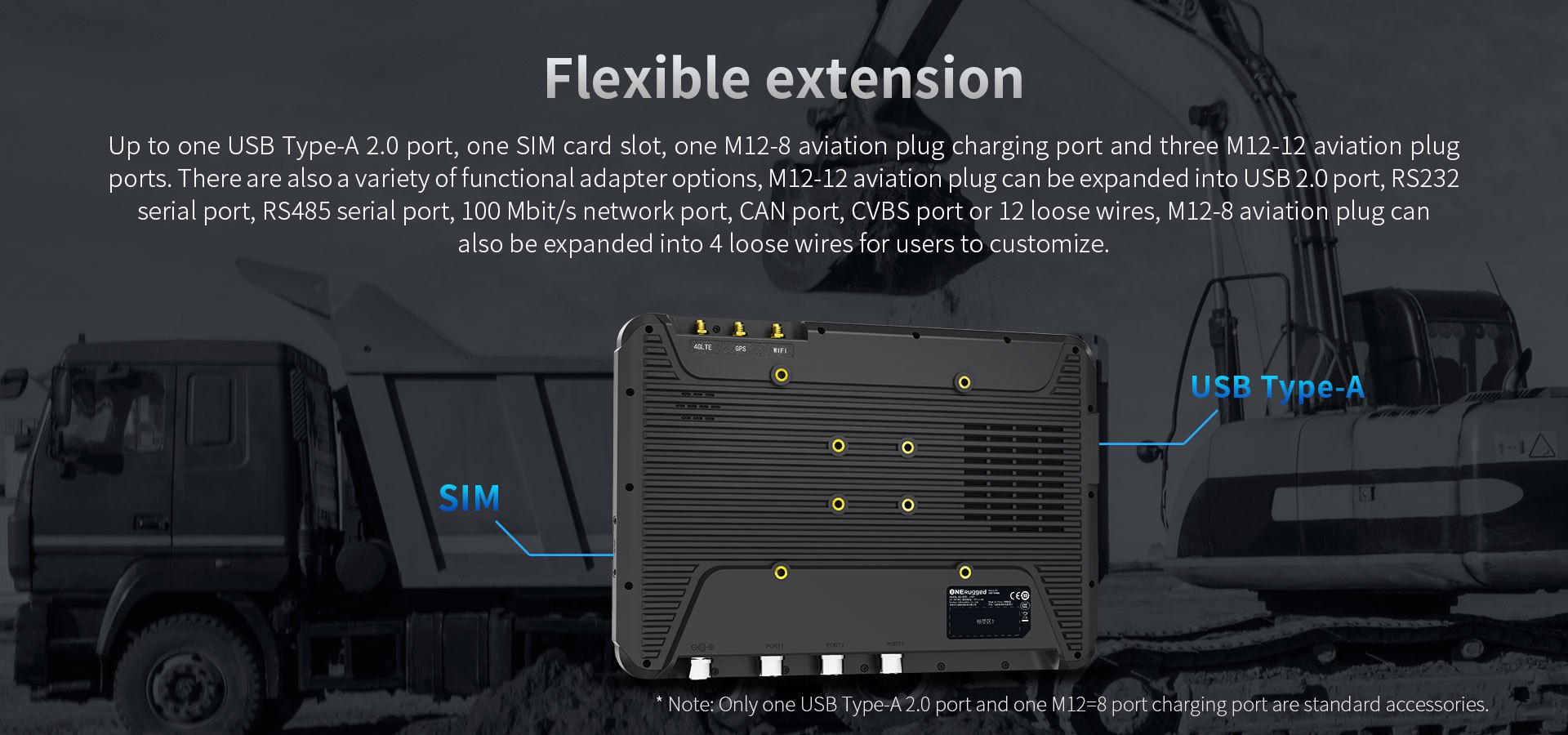

Engineered for high-level data acquisition, the V10T is an expandable vehicle terminal featuring robust M12 aviation plug industrial PC interfaces. Its versatile design allows for deep integration as a customizable rugged Android tablet in any industrial ecosystem.
1× USB Type-A 2.0 & SIM card slot for instant connectivity.
1× M12-8 (Charge) & 3× M12-12 (Data) vibration-proof plugs.
M12-12 adapts to CAN, RS232, RS485, LAN, or CVBS protocols.
Expands into 12 or 4 bare loose wires for specialized customization.

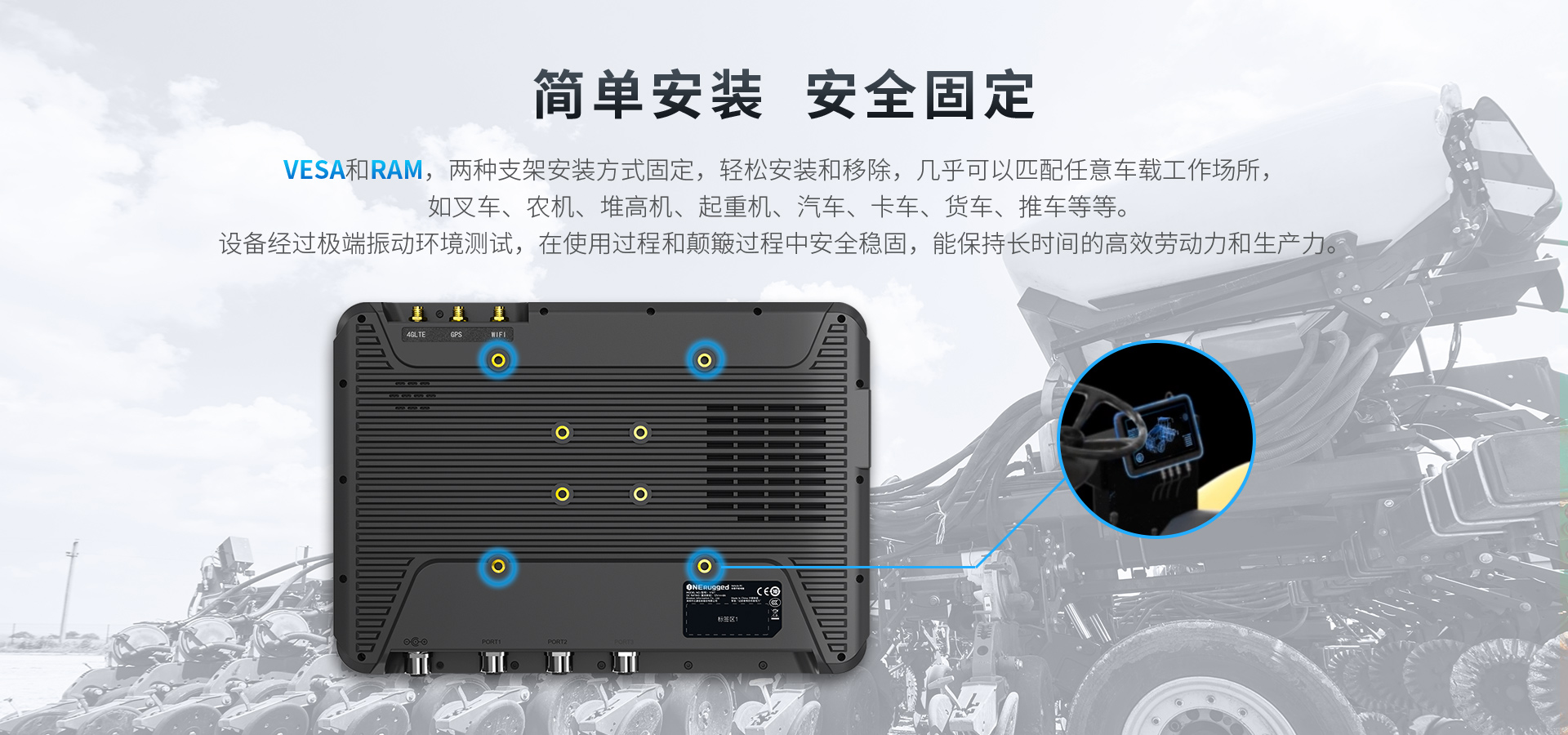

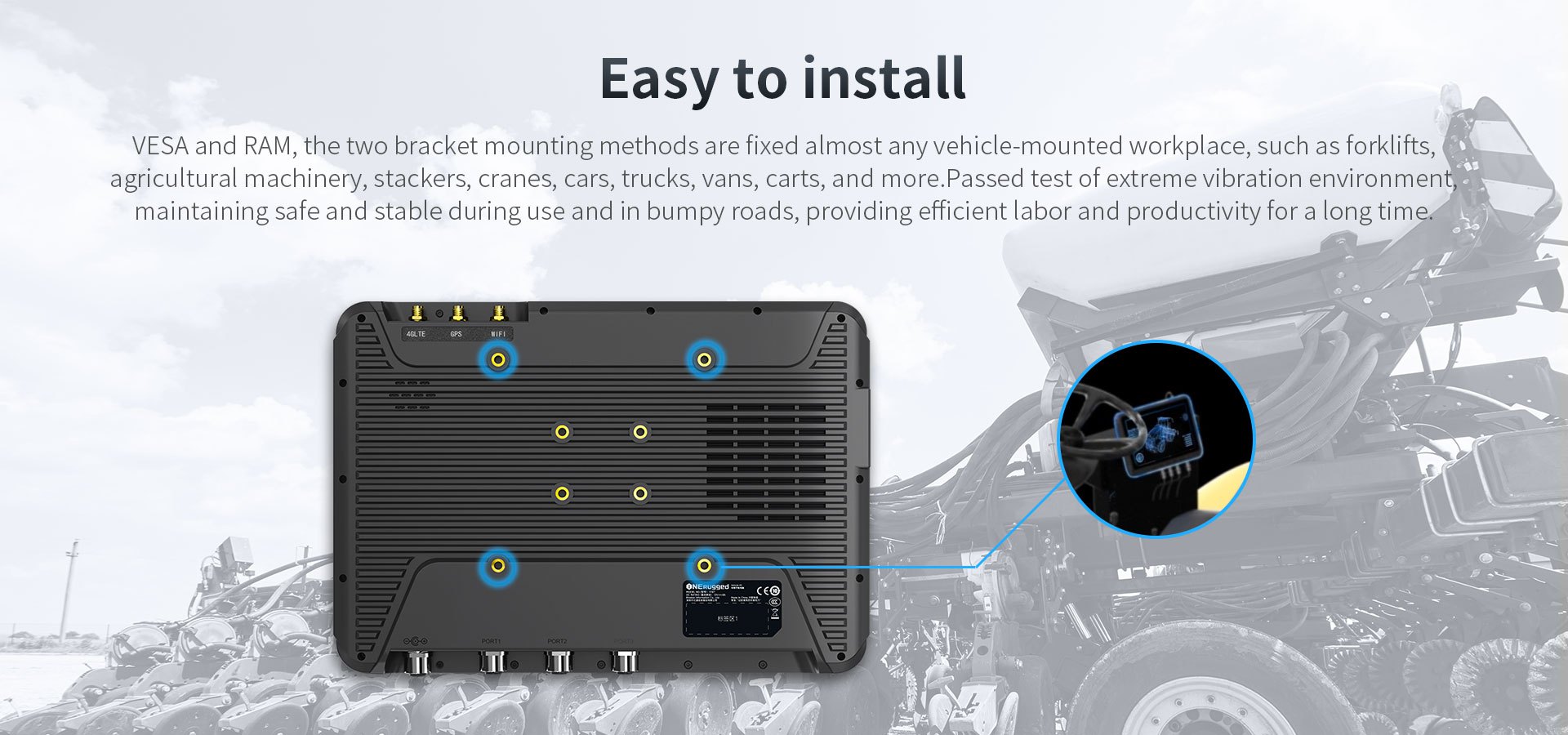

Compatible with standard VESA and RAM brackets, the V10T fits seamlessly into almost any vehicle workplace. As a highly durable VESA mount rugged tablet, it has passed rigorous extreme vibration tests, ensuring a stable forklift computer experience on bumpy roads to sustain productivity across long shifts.

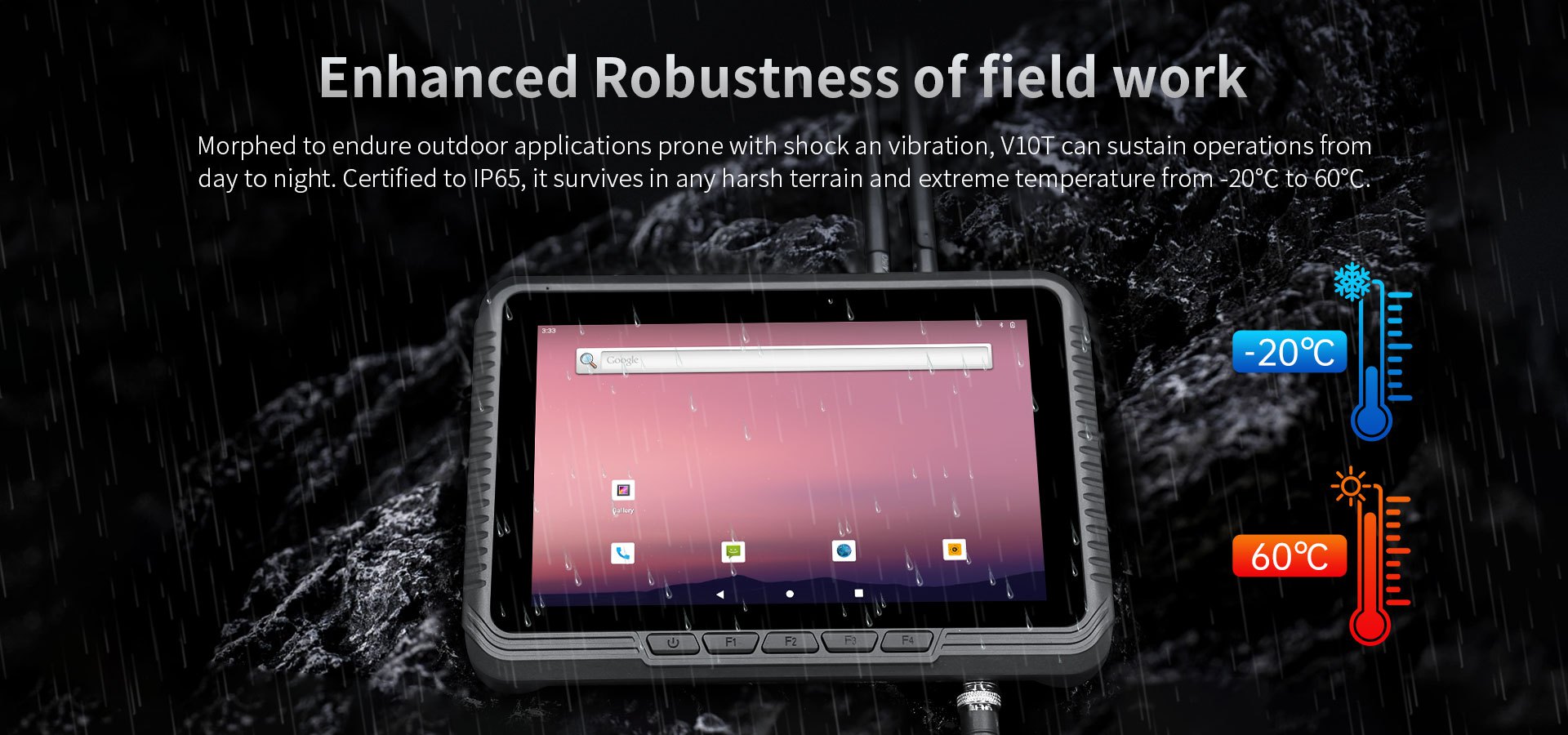

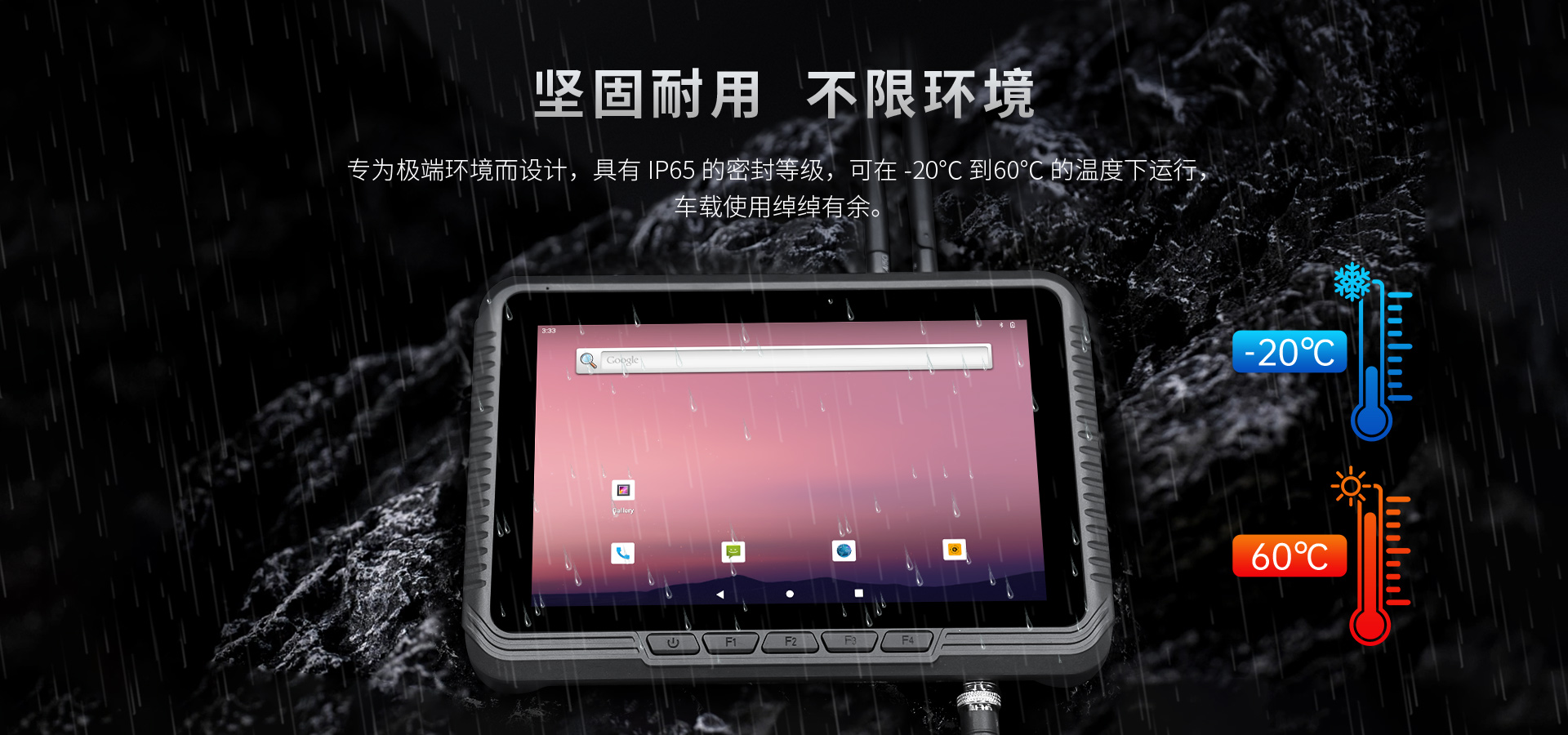

Morphed to endure outdoor applications prone to shock and vibration, the V10T sustains unyielding operations from day to night. As a professional IP65 industrial vehicle monitor, it survives in any harsh terrain and thrives under extreme wide temperature Android PC conditions from -20°C to 60°C.
Complete dust & water protection.
Reliable wide-temp performance.
Industrial-grade shock resistance.
264.5×184.1×23.0mm
TBD
Black
Size: 10.1 inch 16:10, Resolution: 800*1280 IPS, Brightness: 1000cd/㎡
5-point tempered glass capacitive screen G+G, hardness 7H
Optional: SIM card slot *1
USB 2.0 *1
M12-8 Power port *1 (Compatible: DC power port, suitable for cigarette lighter)
Optional: M12-12 Aviation port 1 *1 (Compatible: 100M Ethernet port)
Optional: M12-12 Aviation port 2 *1 (Compatible: RS232 port or RS485 port)
Optional: M12-12 Aviation port 3 *1 (Compatible: USB 2.0 port or CAN port or CVBS port)
