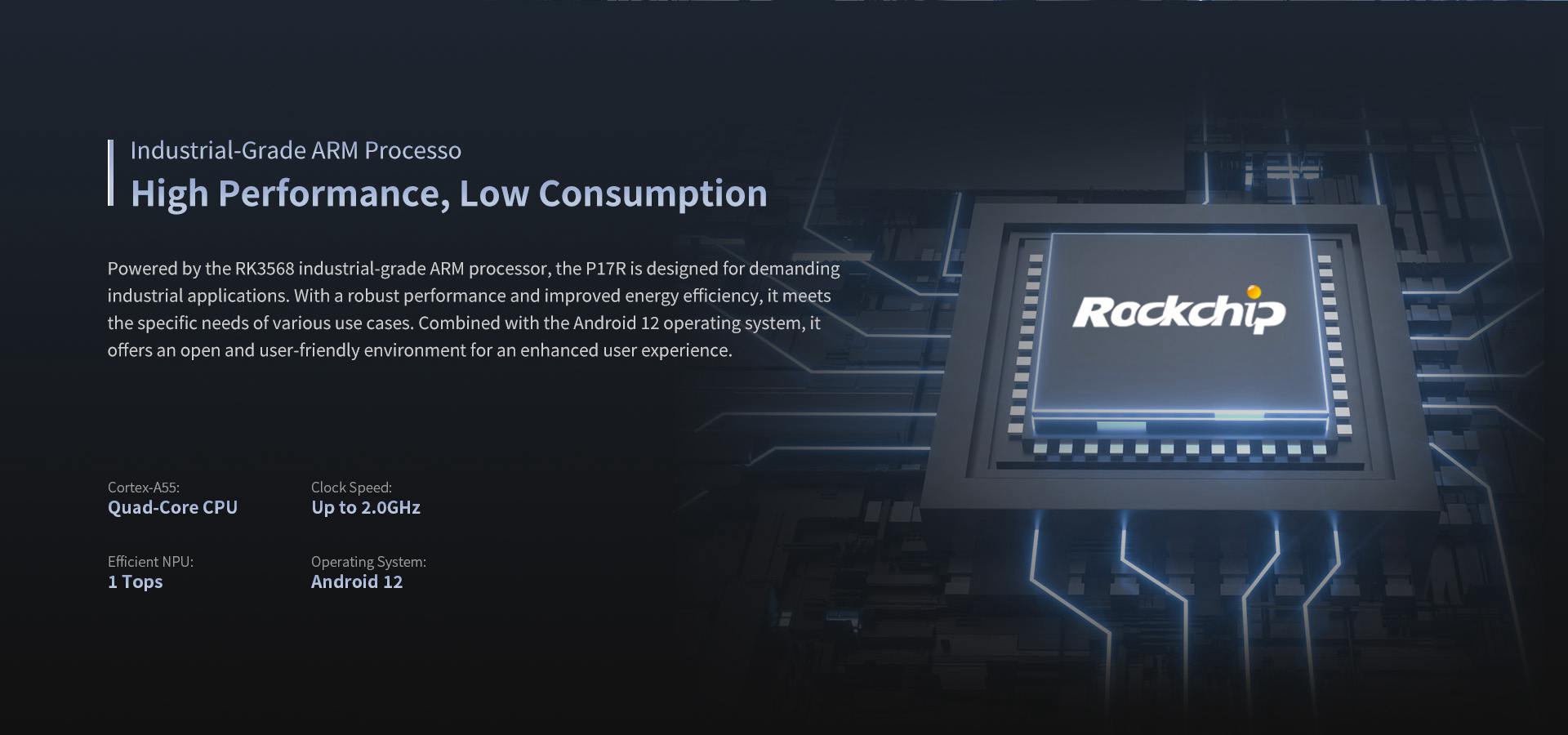

Powered by the RK3568 industrial-grade ARM processor, the P17R is designed for demandingindustrial applications. With a robust performance and improved energy efficiency, it meetsthe specific needs of various use cases. Combined with the Android 12 operating system, it offers an open and user-friendly environment for an enhanced user experience.
Quad-core RK3568 industrial-grade ARM processor
Android 12
Fanless design, using large-area uniform heating fin
running 24/7 without affecting reliability and service life
Type A USB:USB3.0*1,USB3.0 *1 OTG USB2.0*2 DCIN 12V-24V Power connector *1 3.5mm Standard Earphone Jack*1 RJ45 *1(10M/100M/1000M adaptive) DB9 PORT RS232 *2 HDMI*1
Wi-Fi 5, BT 5.0; Supports 4G network connectivity. Multiple interfaces options: USB, RS232, RJ45, HDMI, and audio ports
Front panel IP65
Standard PPC mounting hook component, easy to install and supports various installation methods such as embedded and wall-mounted
The P17R is a 17-inch industrial platform engineered for stable control and professional HMI integration.
The P17R utilizes the RK3568 industrial-grade ARM processor to balance peak performance with improved energy efficiency. Combined with Android 12, it provides a responsive HMI environment for demanding industrial control.

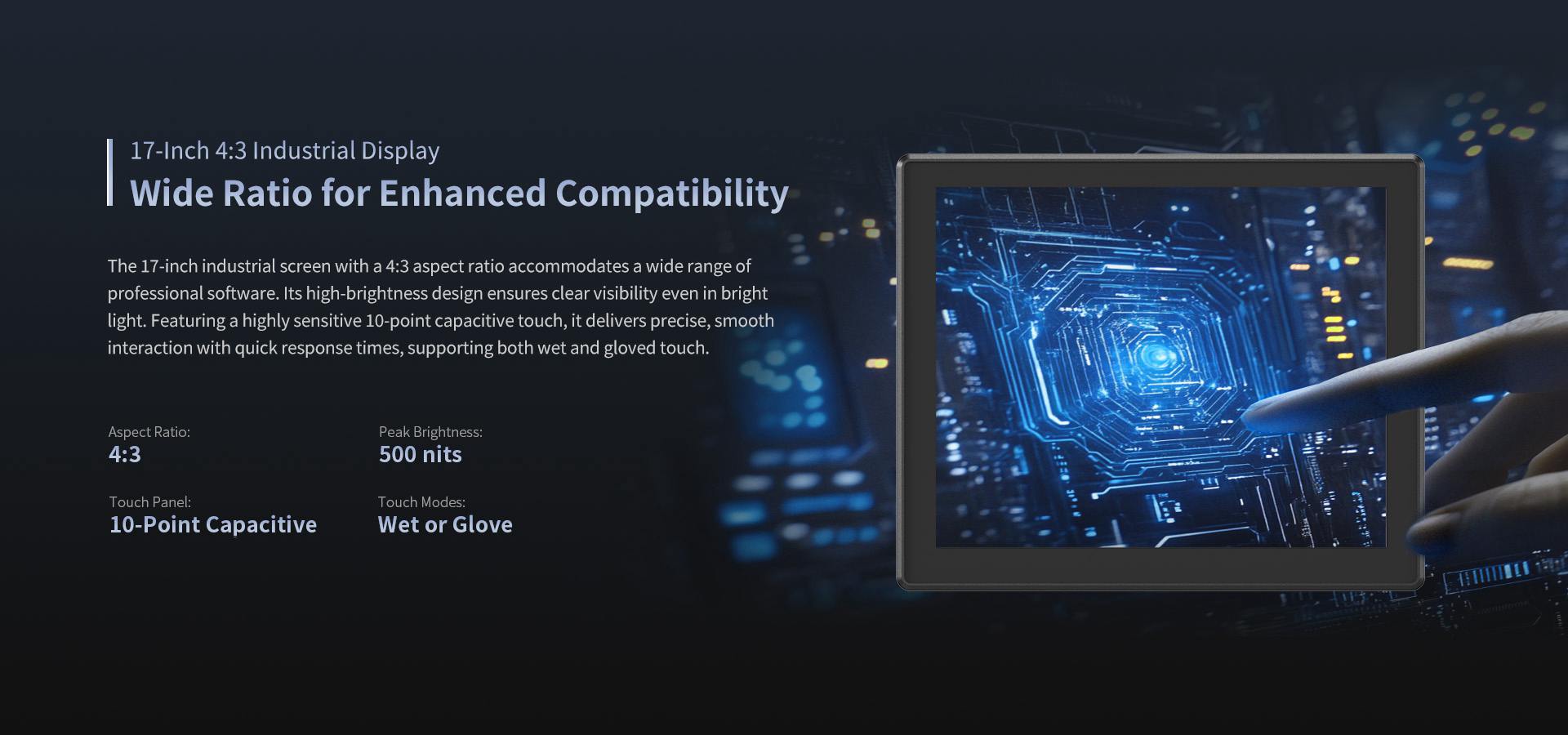

The P17R features a 17-inch screen with a 4:3 ratio to accommodate a wide range of professional industrial software. With 500 nits of brightness and 10-point touch, it ensures precise interaction in any environment.

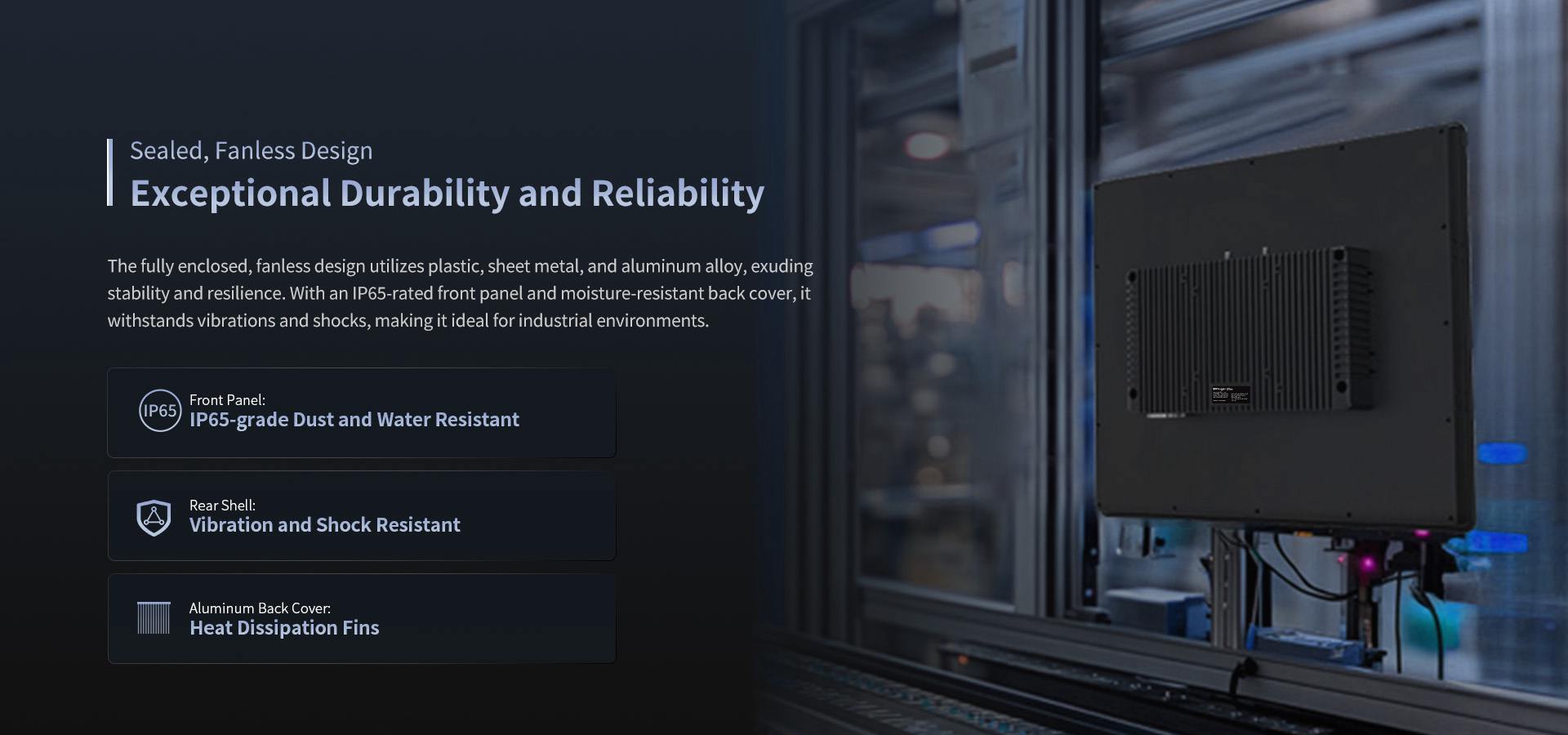

The P17R features a fully enclosed, fanless architecture crafted from aluminum alloy and sheet metal. With its IP65-rated front panel and vibration-resistant shell, it ensures stable performance in the most extreme industrial environments.

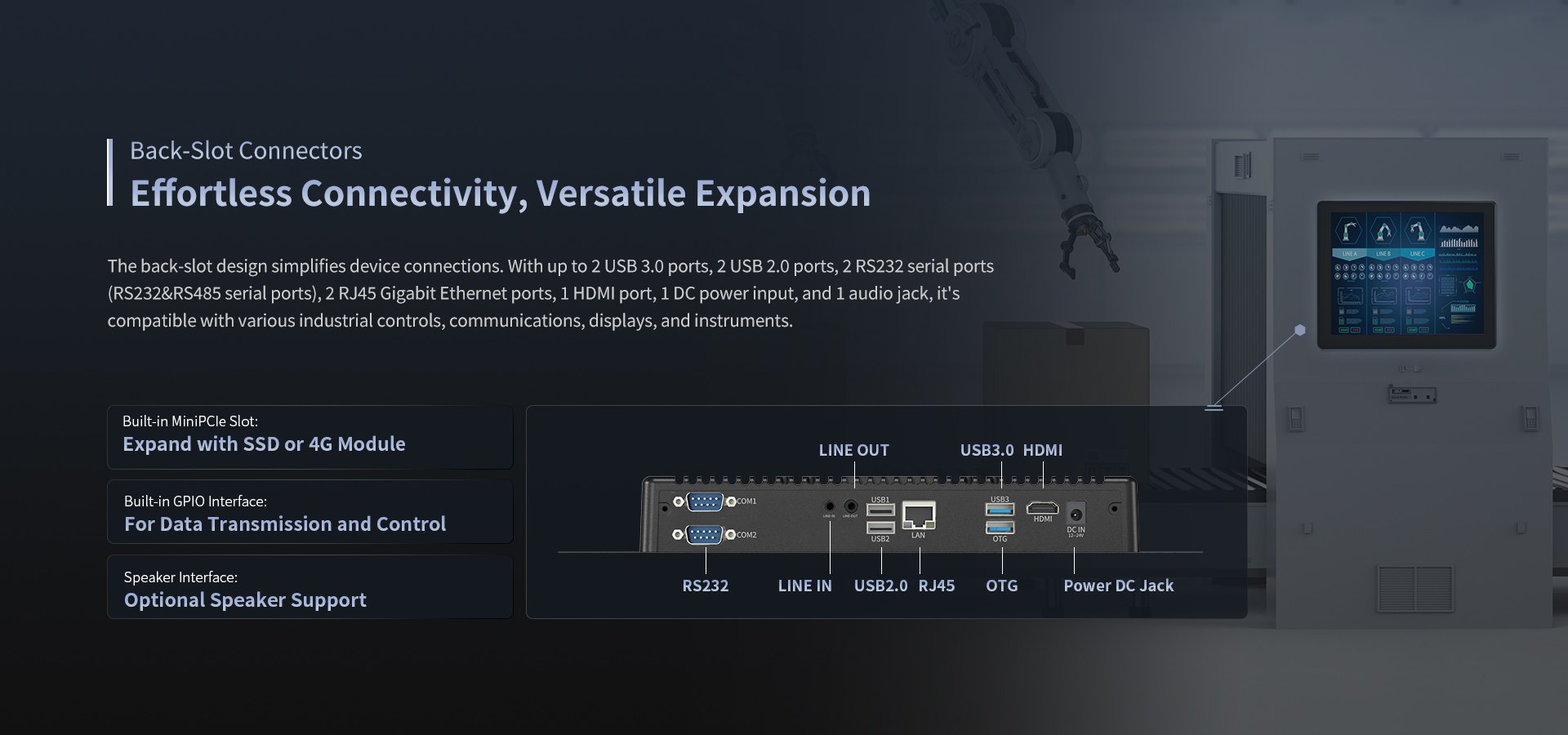

The P17R back-slot design simplifies complex device connections. Featuring dual RS232/485 serial ports, Gigabit Ethernet, and internal MiniPCIe/GPIO slots, it serves as a high-density communication hub for diverse industrial automation.

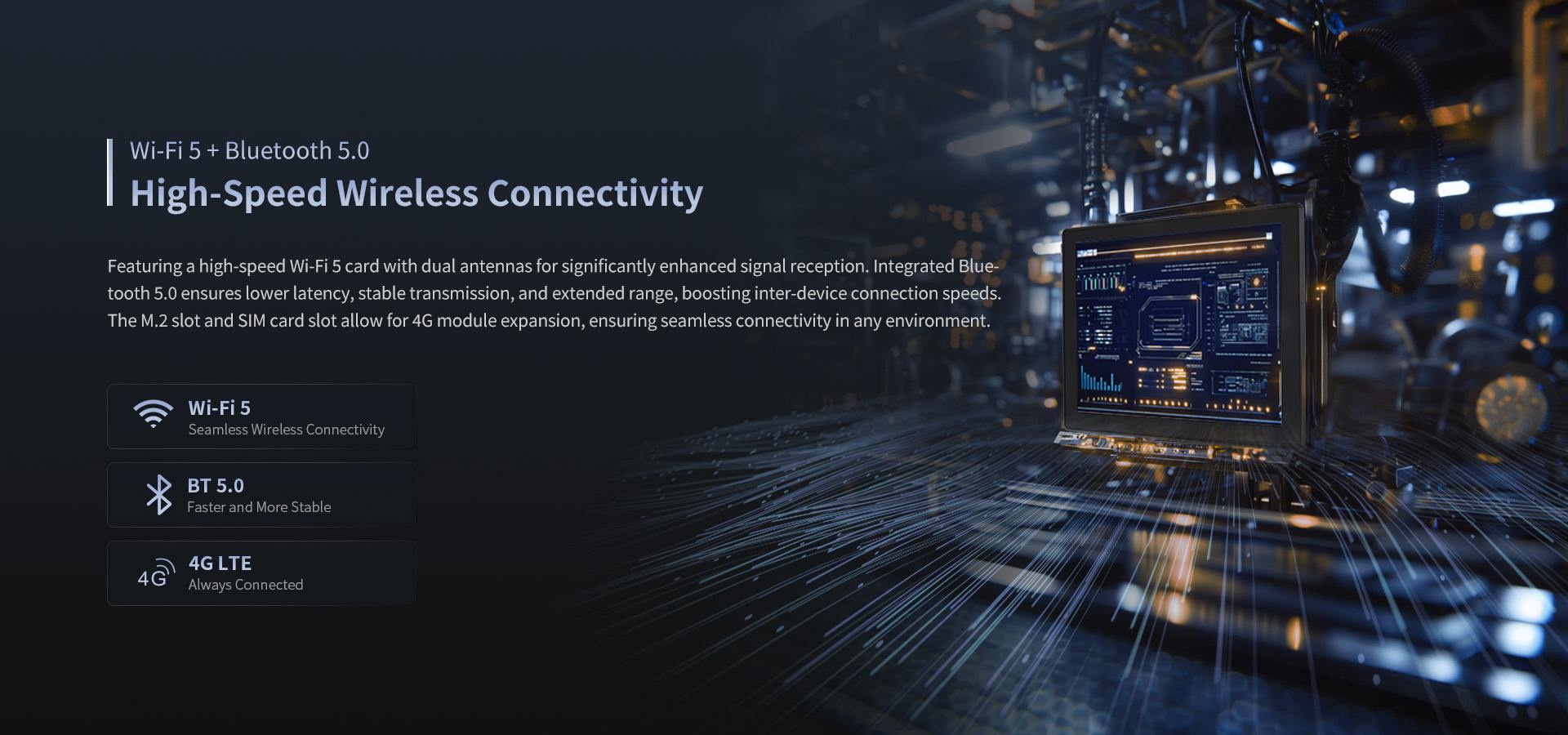

Featuring high-speed Wi-Fi 5 with dual antennas and Bluetooth 5.0, the P17R ensures stable, low-latency transmission. Integrated M.2 and SIM slots allow for 4G module expansion, guaranteeing seamless connectivity in any industrial environment.
The P17R is built with a self-developed industrial motherboard, ensuring robust anti-static and EMI protection. Supporting wide-voltage input and temperatures from -30°C to 70°C, it delivers uninterrupted performance for round-the-clock industrial operations.

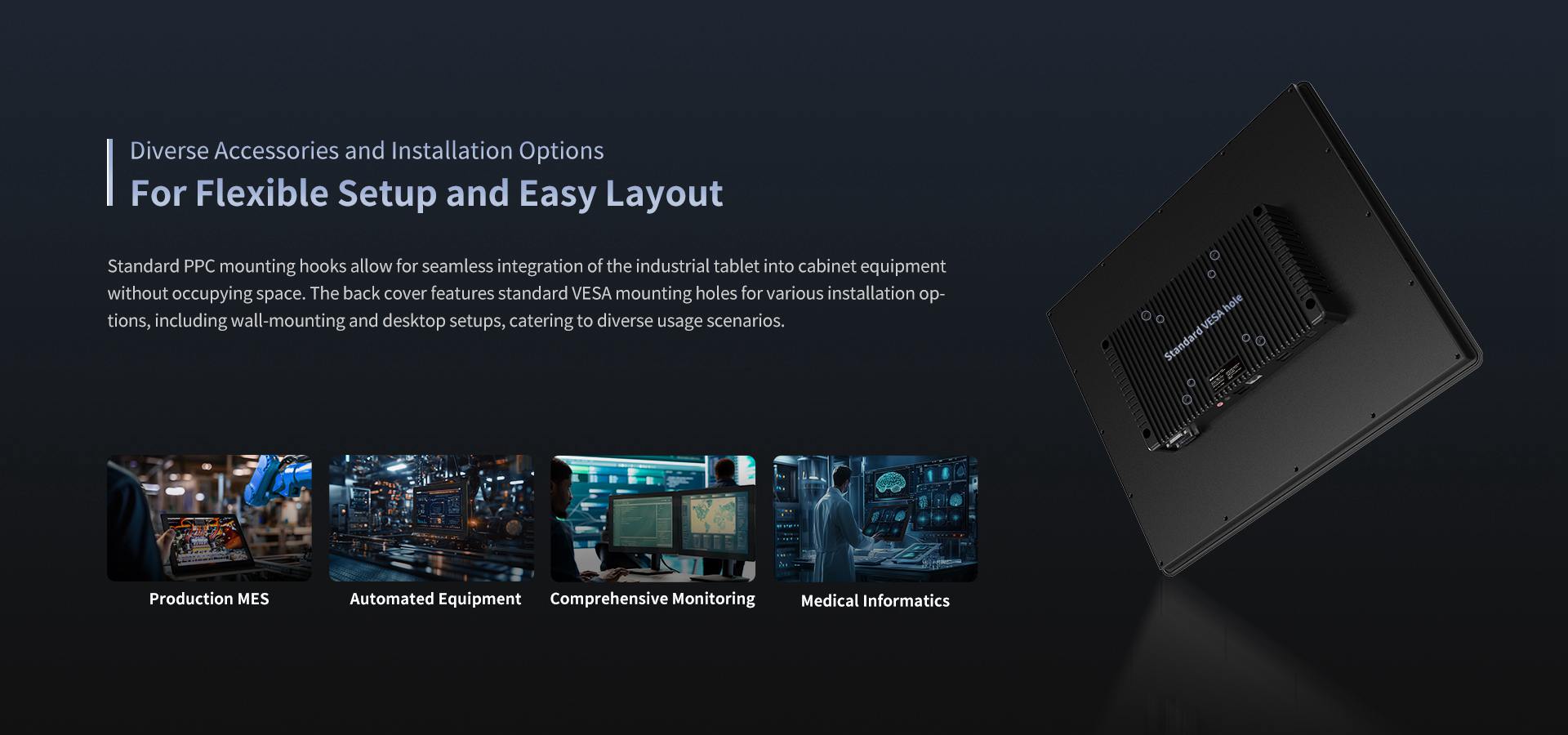

The P17R offers modular installation versatility. Supporting standard PPC hooks for zero-space cabinet integration and VESA mounting for wall or desktop setups, it caters to diverse industrial usage scenarios with ease.
401*332*57 mm
TBD
Black
Size: 17-inch 4:3 Resolution: 1280*1024 Brightness: 500 cd/㎡
10 PCAP
Standard USB-A: USB3.0 *1 USB3.0 *1 OTG+USB2.0 *2
Power interface: DC IN 12V-24V Power connector *1"
∮3.5mm Standard Earphone Jack *1
RJ45 *1 (10M/100M/1000M adaptive)
DB9 PORT RS232 *2
HDMI *1
