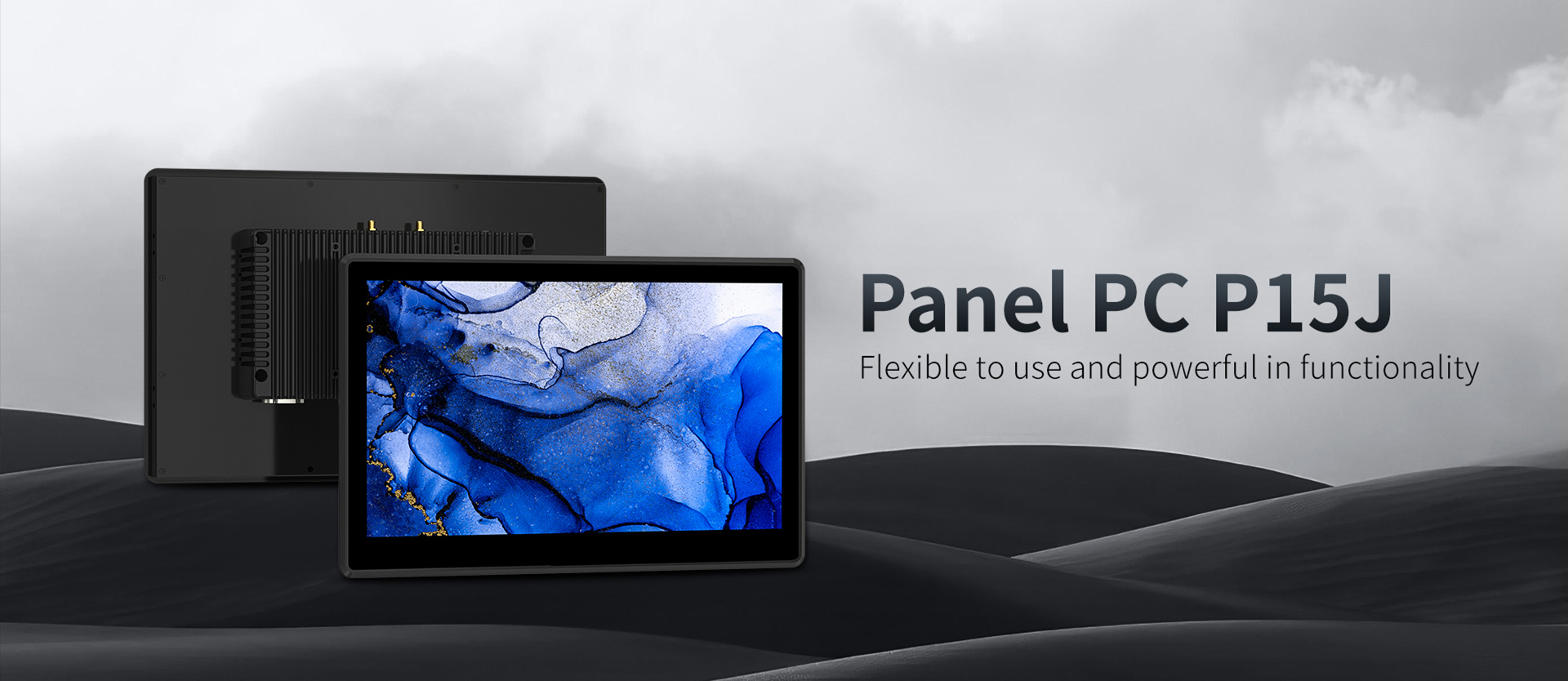

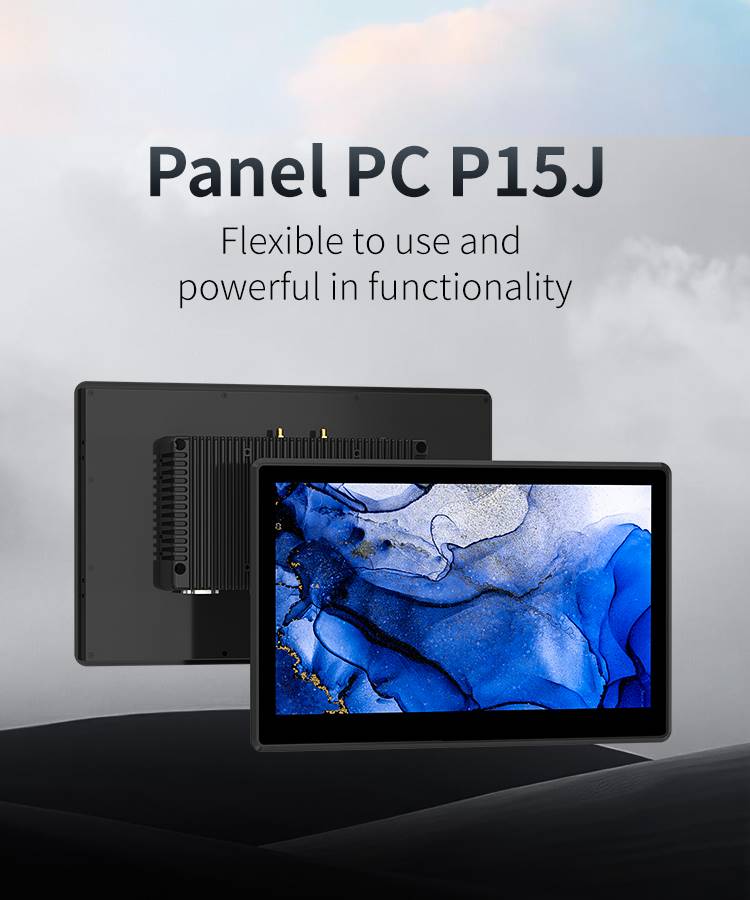

The P15J is a 15.6-inch flat panel pc powered by Intel's 11th generation Celeron processor based on the Jasper Lake platform, and Windows 11 operating system for demanding computing, control and visualization tasks. It’s compact and strong structure, fanless design, performance over a wide range of temperatures and voltages, can reliably withstand the rigors of 24/7 operation even in harsh environments. And with various mounting options, it can be widely used in industrial control, communication, network and other automation fields.
Full 15.6-inch HD display, the IP65-rated front panel protects against water and dust ingress
Powered by an 11th generation Intel Celeron processor, equipped with Windows 11 operating system
Excellent environmental adaptability, anti-electromagnetic interference and anti-static capabilities
Fanless design, using large-area uniform heating fin, running 24/7 without affecting reliability and service life
Rich interfaces, including multiple USB/LAN/D89/HDMI and other I/O ports, can easily meet various scenario requirements
Dual-band Wi-Fi, Bluetooth 5.0, and expandable 4G (M.2 interface), multiple network connection modes
Wide voltage and temperature design, can operate normally even under external voltage fluctuations or in extremely hot or cold conditions
Standard PPC mounting hook component, easy to install and supports various installation methods such as embedded and wall-mounted

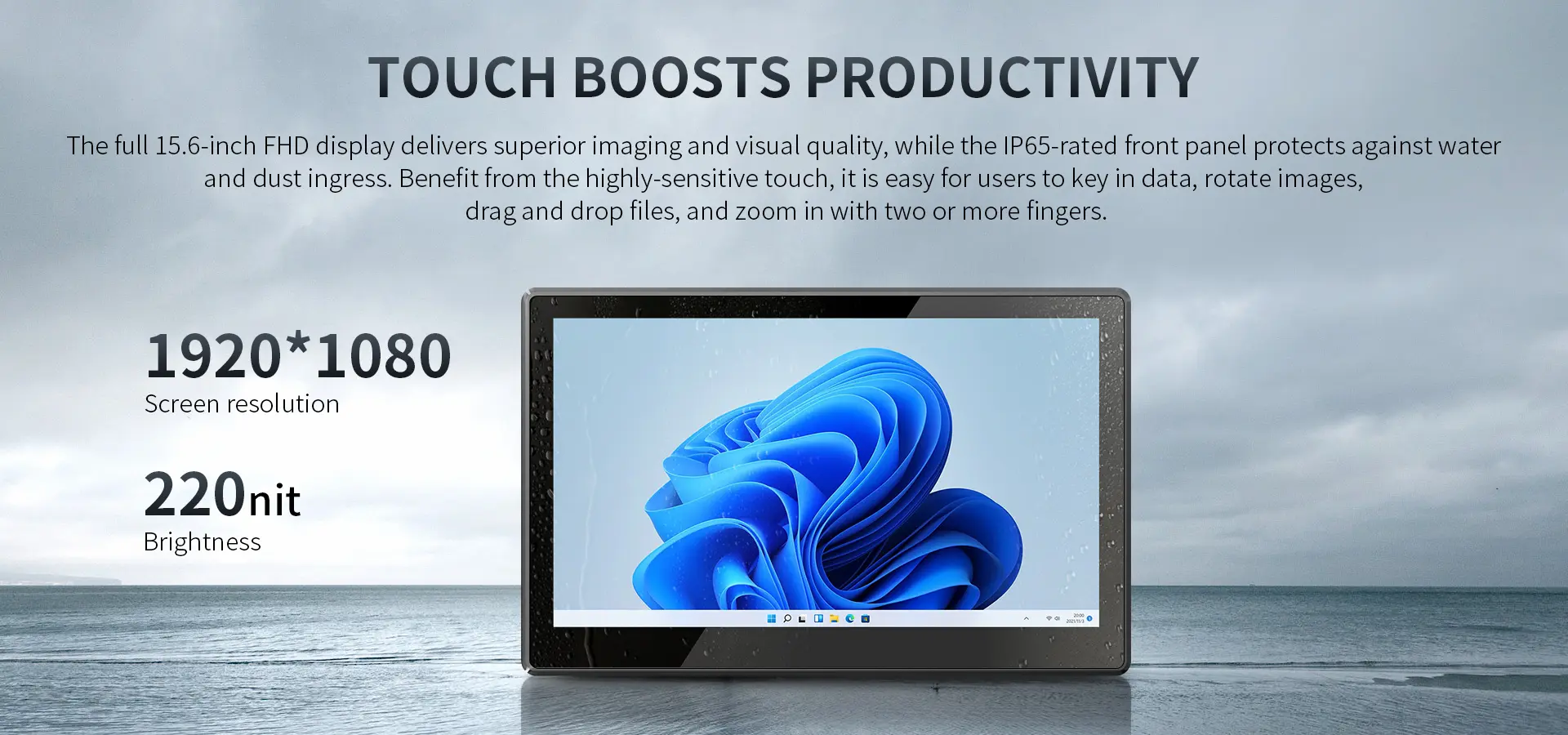

The P15J's expansive 15.6-inch FHD display delivers superior visual imaging for mission-critical industrial monitoring, while the IP65-rated front panel ensures total protection against water and dust ingress. Leveraging a high-sensitivity touch interface, it facilitates seamless data acquisition and advanced HMI interaction through intuitive multi-finger gesture controls.
Powered by an 11th-Gen Intel Celeron with Turbo Boost, the P15J delivers elite multi-tasking performance. Combined with 8GB RAM and 128GB high-speed storage, it ensures deterministic data processing for mission-critical industrial applications.

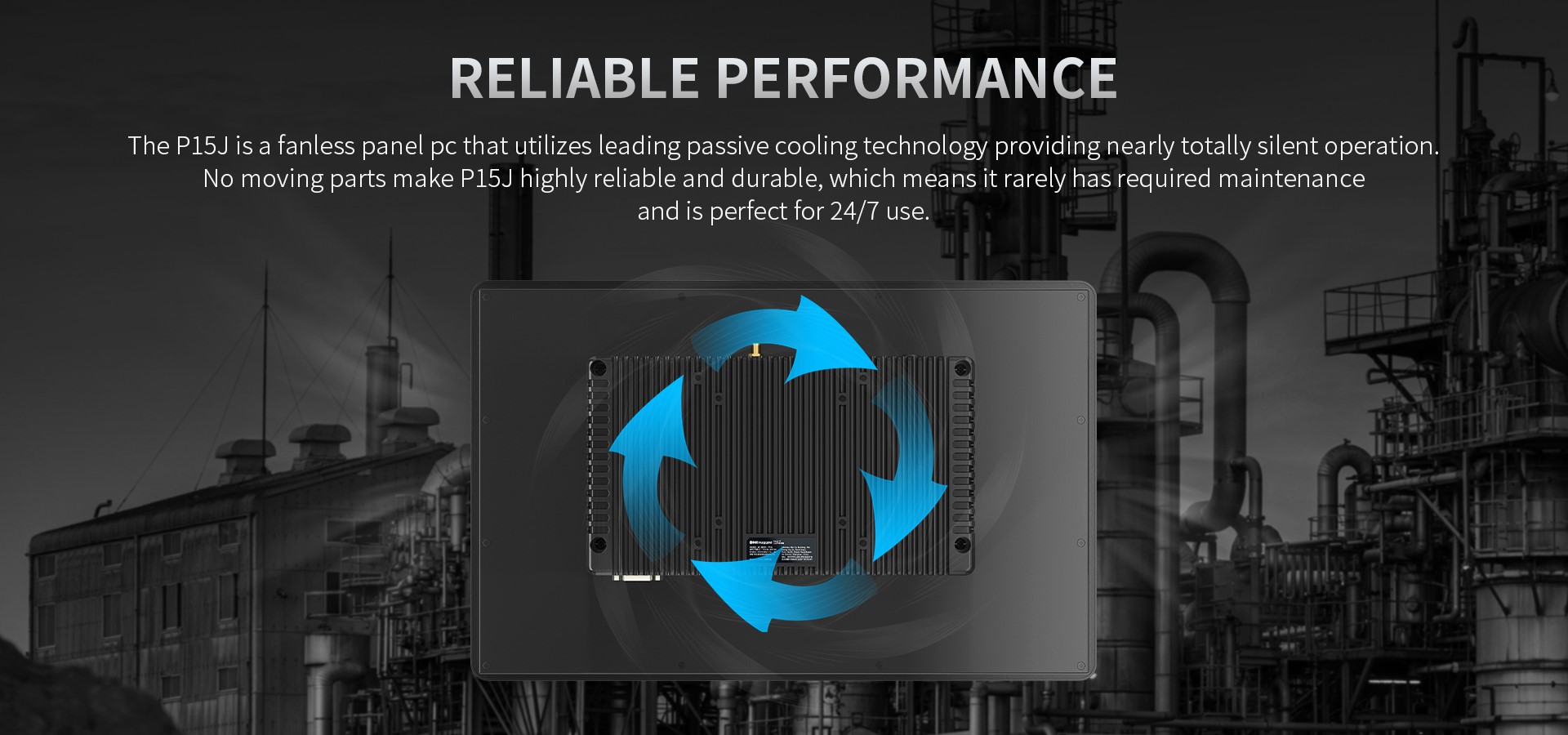

Engineered with advanced passive cooling and zero moving parts, the P15J fanless panel PC delivers totally silent, maintenance-free operation. Its highly durable architecture ensures unwavering reliability for continuous 24/7 deployment in harsh industrial environments.

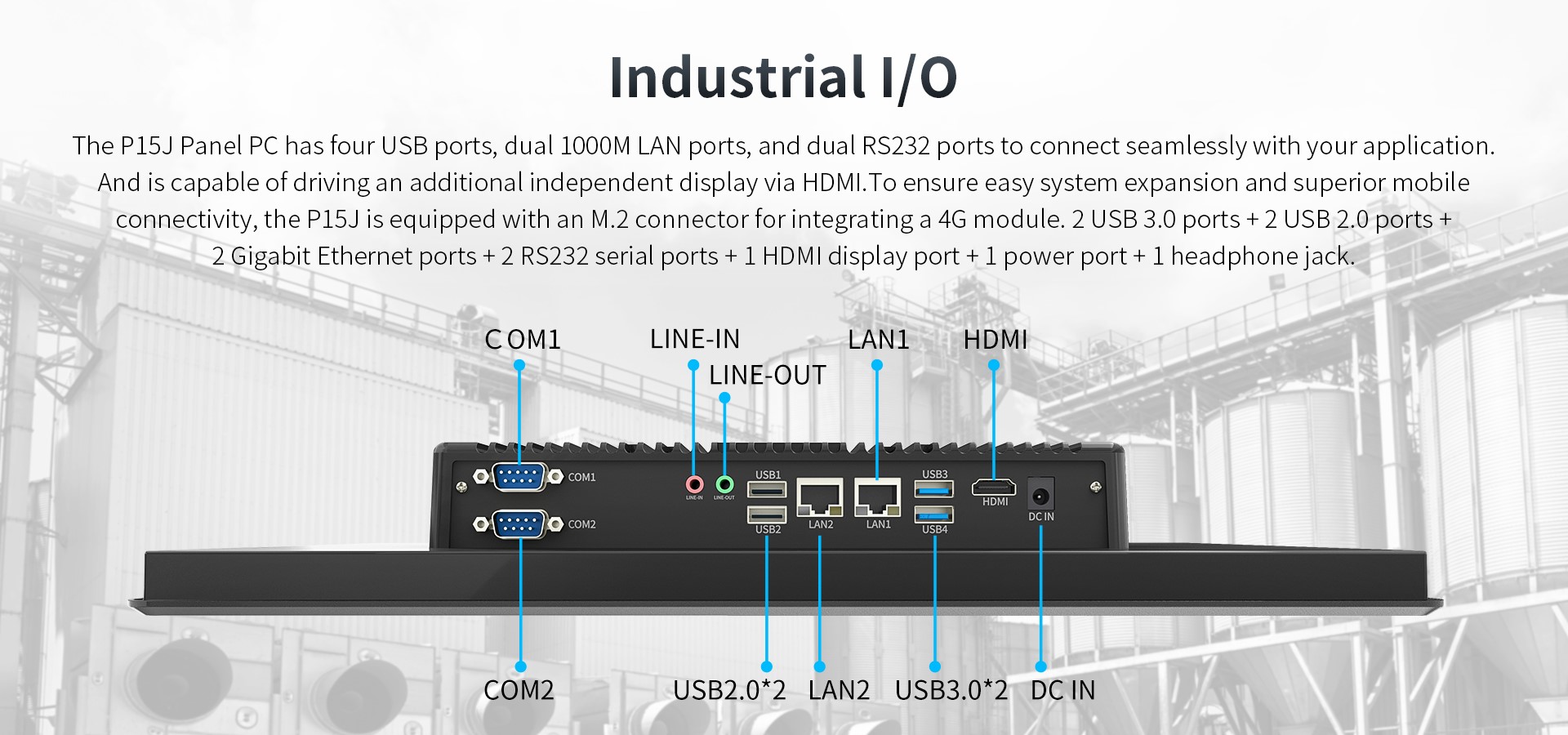

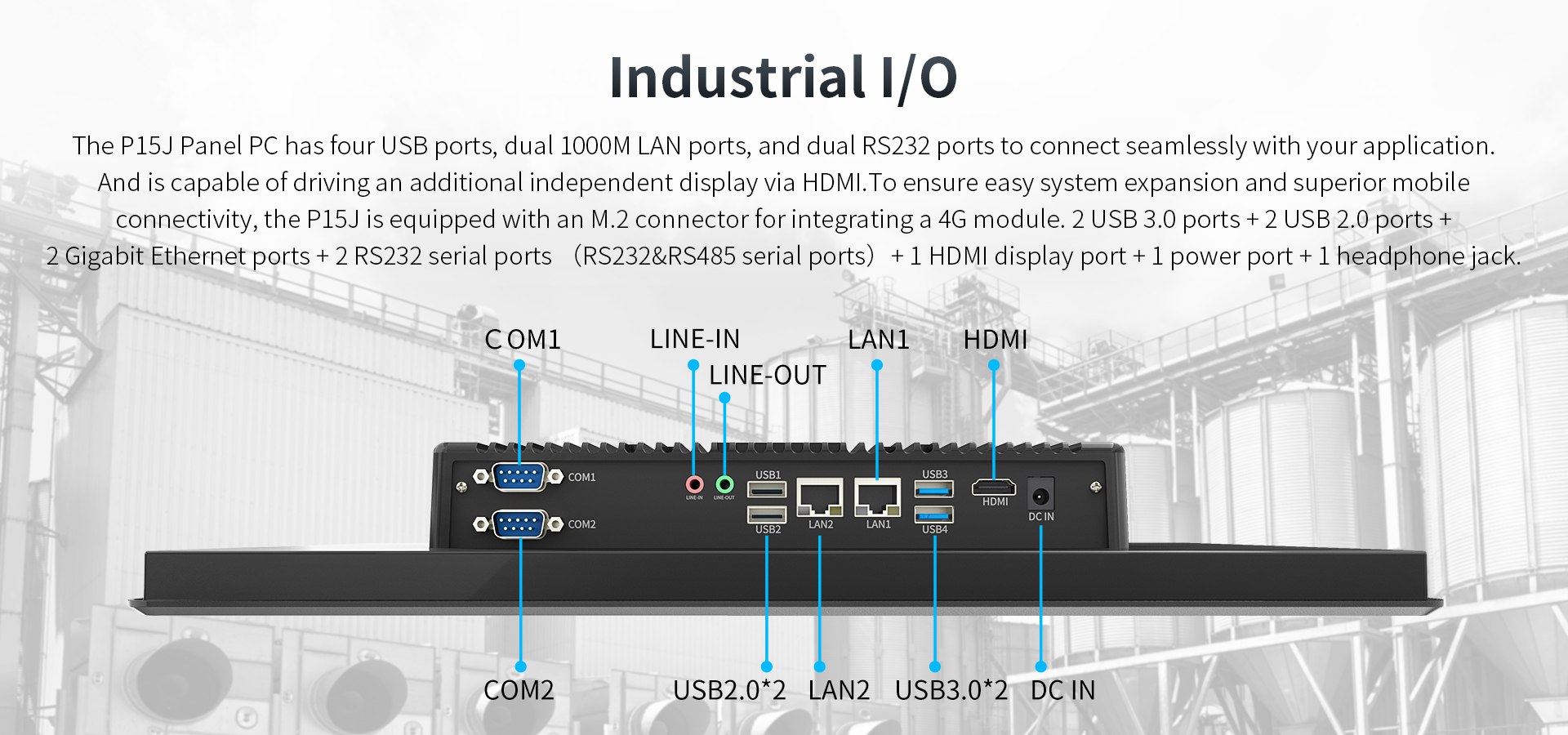

Engineered for seamless integration, the P15J features a high-density I/O matrix including dual Gigabit LAN, quad USB ports, and dual RS232/RS485 serial interfaces. With independent HDMI dual-display support and an M.2 slot for robust 4G cellular expansion, it serves as the ultimate communication hub for complex industrial applications.

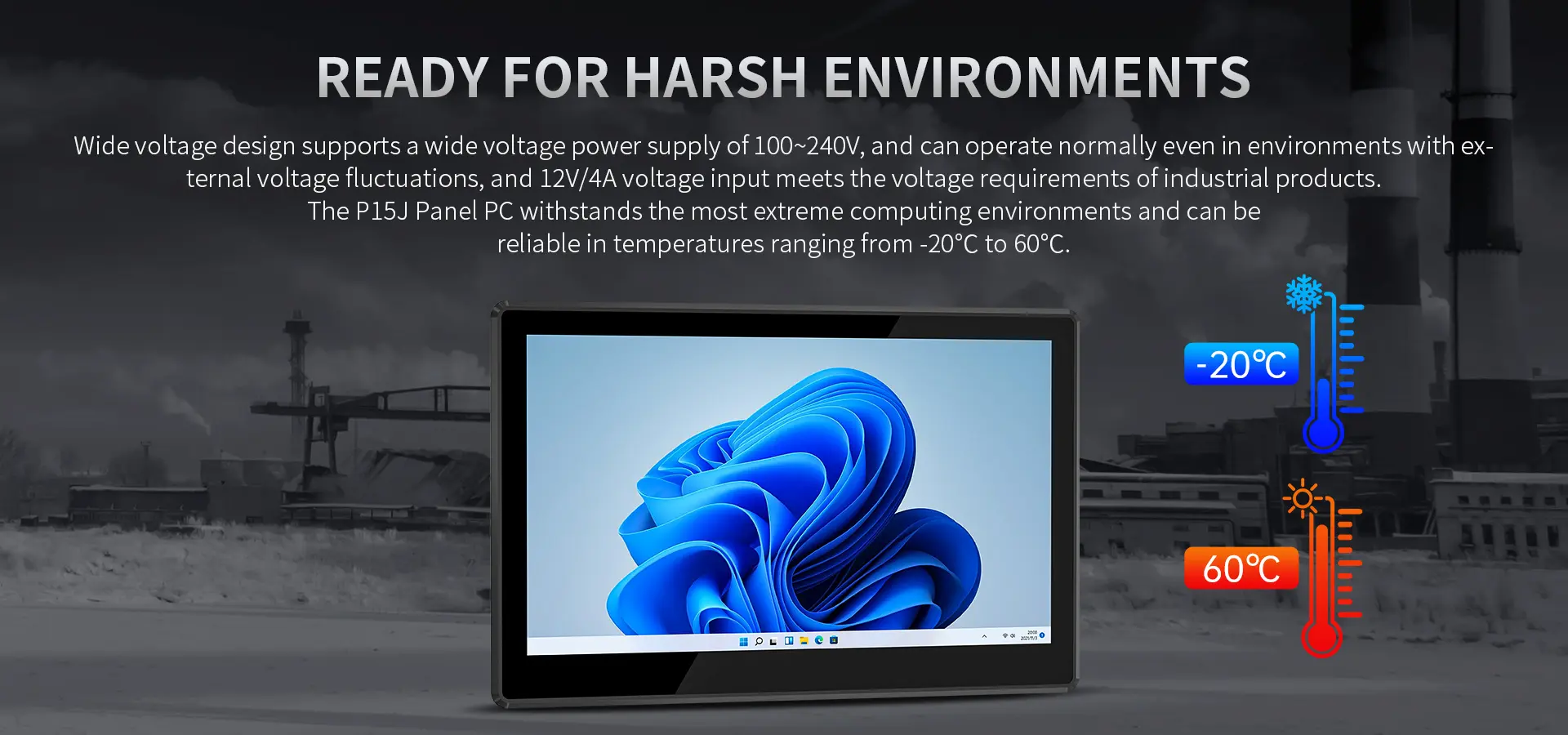

Engineered to neutralize external power fluctuations, the P15J supports 100-240V wide voltage input to meet rigorous industrial power standards. Capable of reliable operation in extreme temperatures from -20°C to 60°C, it withstands the most demanding computing environments without compromise.
Engineered for ultimate spatial flexibility, the P15J seamlessly integrates into any industrial environment via standard PPC hooks or custom embedded configurations.
Intel® Celeron® Processor N5100
Windows 11
RAM: 8GB
ROM: 128GB
Adapter (Input AC100V~240V 50Hz/60Hz, output DC 12V/4A)
