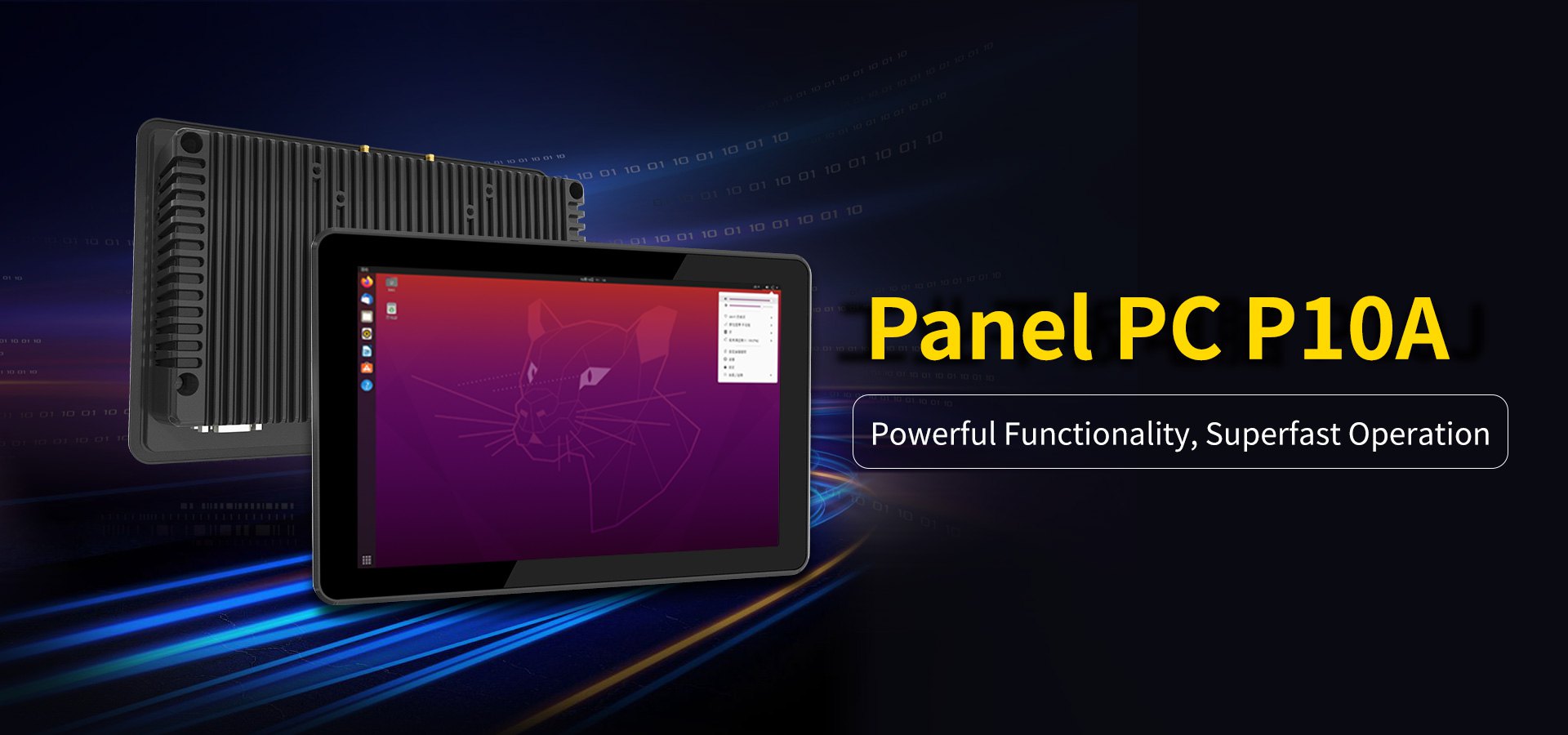

Powered by 12th-gen Intel® Core™ i5-1235U/i7-1255U Processors and Linux Ubuntu22.04.4, P10A features a 10.1" capacitive touch panel with 700 nits high brightness. With Wi-Fi 6, Bluetooth 5.1, and expandable 4G, it offers versatile connectivity. Its fanless design and large-area uniform heating fin ensure 24/7 operation without compromising reliability. P10A boasts excellent environmental adaptability, anti-electromagnetic interference, and anti-static capabilities. With multiple USB/RJ45/DB9/HDMI ports, it easily meets various requirements. Its wide voltage and temperature design, IP65-rated dustproof and waterproof build, and standard PPC mounting hook facilitate easy installation in diverse settings.
Powered by 12th-gen Intel® Core™ i5-1235U/i7-1255U Processors, equipped with Linux Ubuntu22.04.4 operating system
10.1-inch impact-resistant flat capacitive touch panel, 700 nits high brightness screen for clear visibility
Wi-Fi 6, Bluetooth 5.1, and expandable 4G via M.2 interface, supports multiple network connection modes
Utilizes large-area uniform heating fin for fanless operation, runs 24/7 without compromising reliability or service life
Excellent anti-electromagnetic interference and anti-static capabilities, IP65-rated dustproof and waterproof design
Multiple USB, RJ45, DB9, HDMI, and other I/O ports, easily meets various scenario requirements
Standard PPC mounting hook component for easy installation, supports various installation methods like embedded and wall-mounted
The P10A series redefines industrial HMI with a high-performance SoC architecture designed for superfast data processing. Engineered for mission-critical reliability, it combines an IP65-rated front panel with versatile mounting logic.
High-Speed Logic Core.
Optimized Data Throughput.
Front-Panel Dust/Water Seal.
Flexible Deployment Logic.

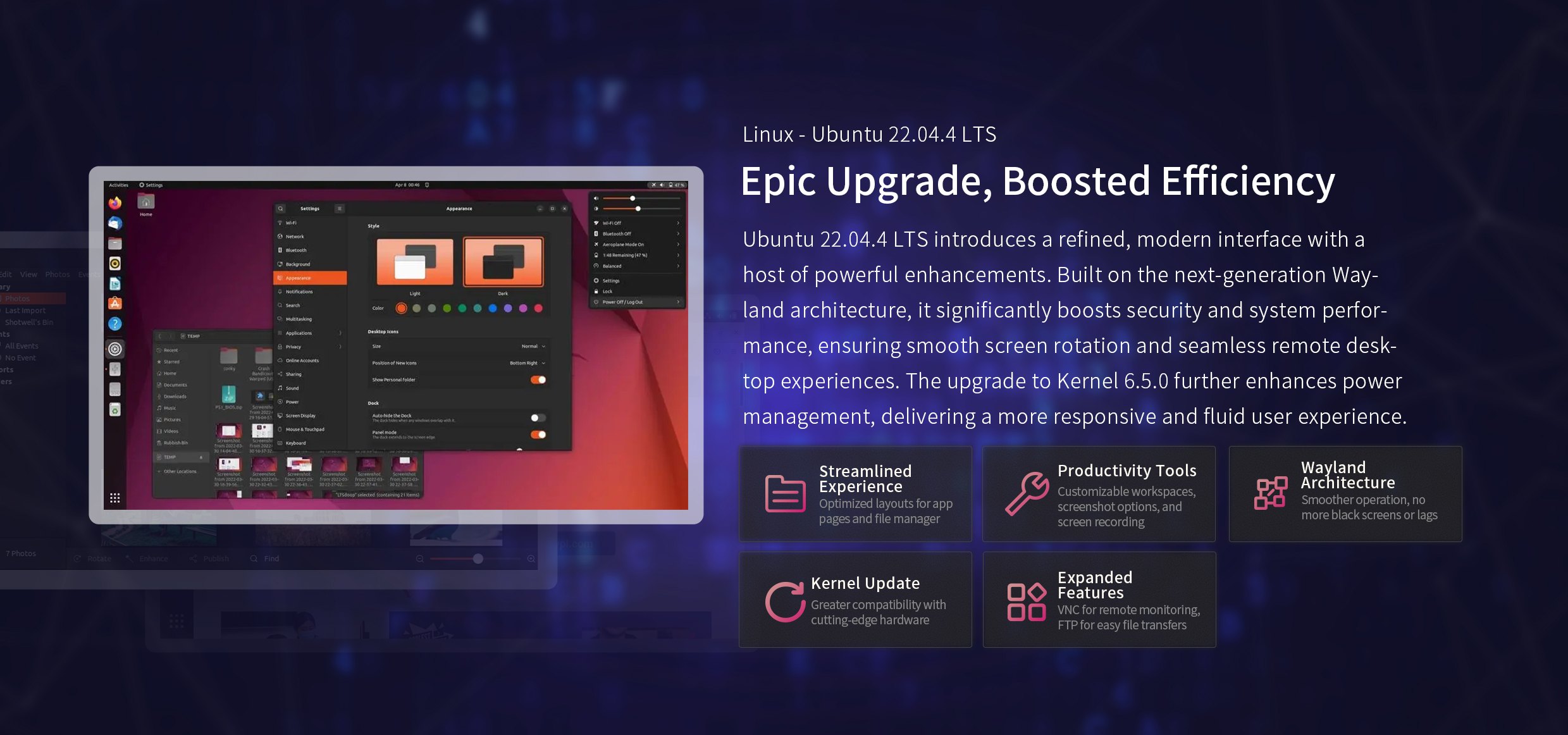

The P10A series integrates Ubuntu 22.04.4 LTS with Kernel 6.5.0, delivering a refined industrial-grade interface for compact deployments. Built on the Wayland architecture, it ensures secure remote monitoring and fluid response for mission-critical automation.
Hardened Core Logic.
Secure UI Architecture.
VNC & FTP Integration.
Optimized HMI Layout.

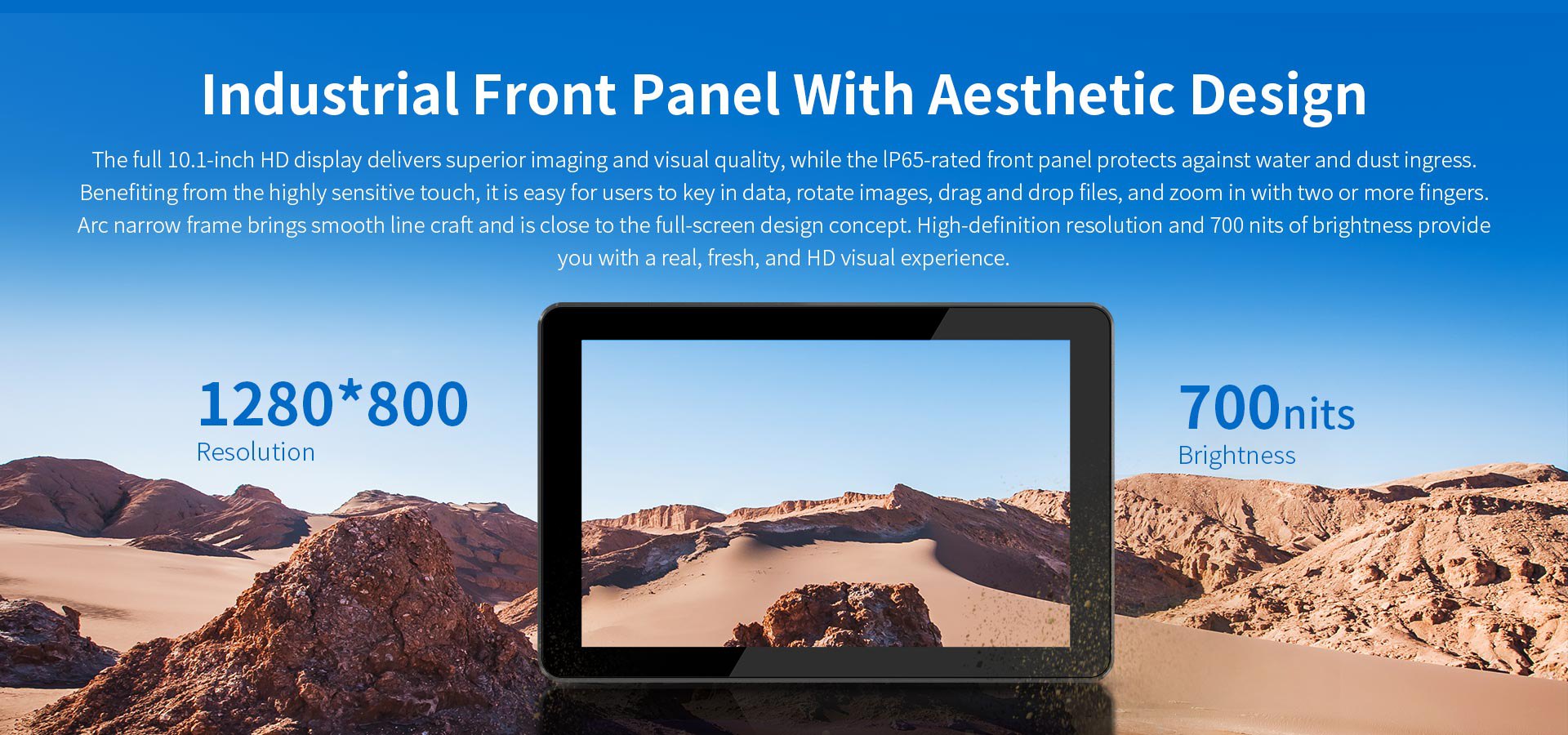

The P10A combines a 10.1-inch sunlight-readable display with an ergonomic arc narrow frame for a modern full-screen aesthetic. Featuring 700 nits of brightness and an IP65-rated front panel, it ensures high-definition clarity and operational resilience.
Sunlight-Readable Optics.
High-Definition Imaging.
Front-Panel Protection Seal.
Modern Full-Screen Concept.
The P10A is built on a specialized industrial motherboard featuring the Intel Core platform. Optimized for 10nm processing density and Iris Xe graphics, it provides robust EMI/EMC resilience for mission-critical industrial tasks.

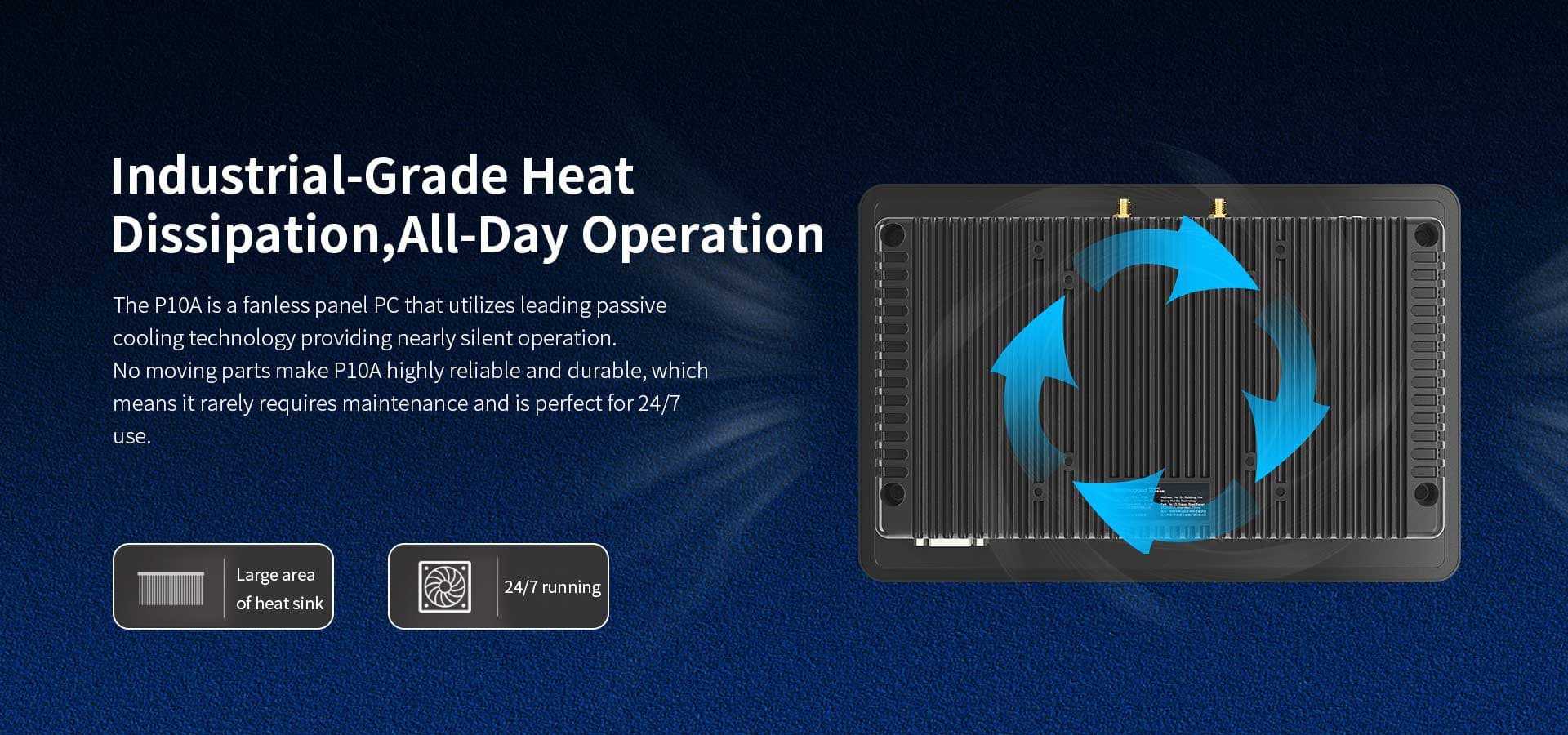

The P10A utilizes advanced passive cooling technology to achieve a fanless, noise-free architecture. By eliminating moving parts, it maximizes MTBF and ensures reliable $24/7$ operation for mission-critical industrial deployments.
High-efficiency conductive thermal management.
Eliminates mechanical wear and tear failure risks.
Drastically reduces long-term operational costs.
Designed for sustained non-stop industrial cycles.

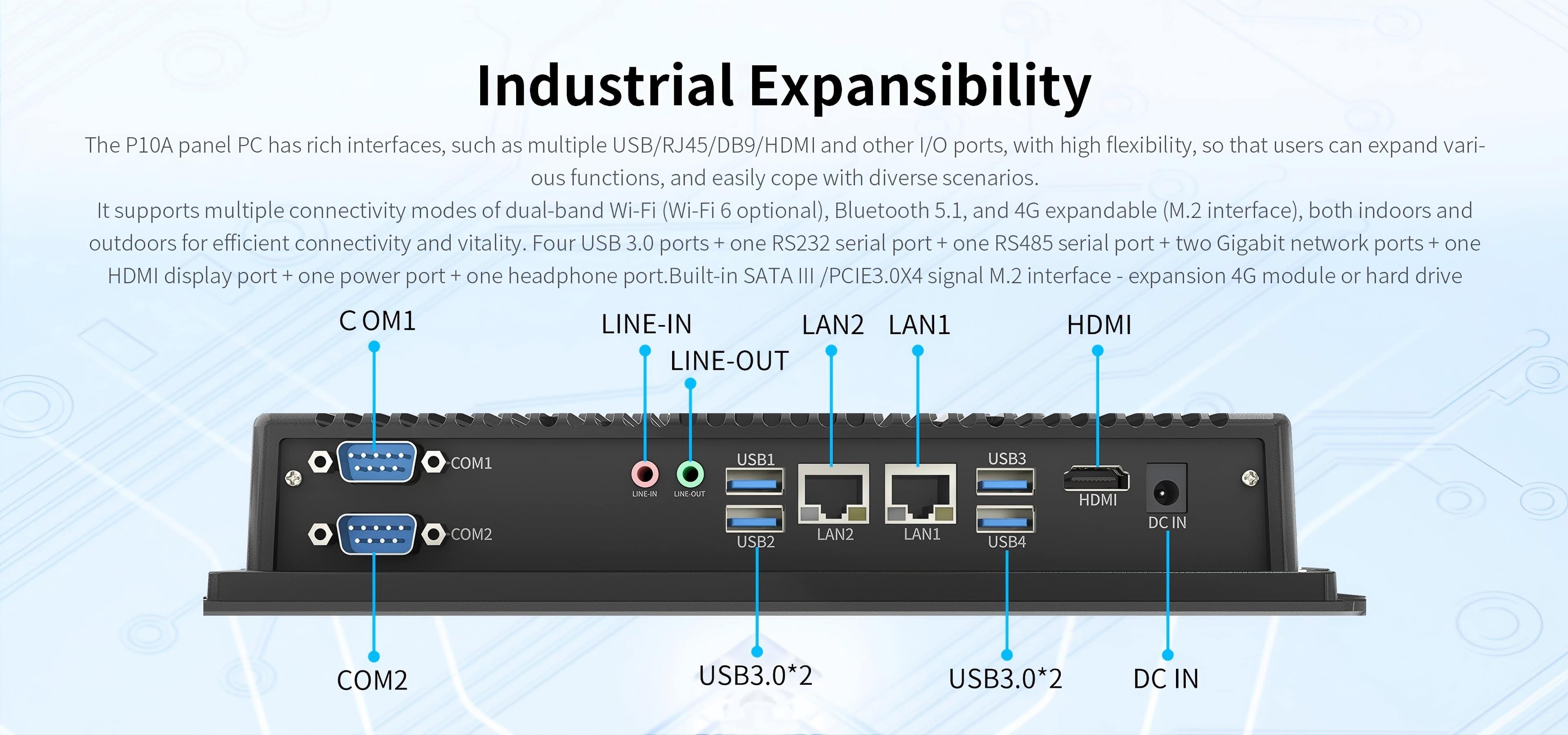

The P10A features a high-density I/O suite including quad USB 3.0, dual Gigabit LAN, and multi-protocol serial ports. Engineered for seamless field integration, its internal M.2 slot supports PCIE 3.0 signals for 4G or SSD expansion.

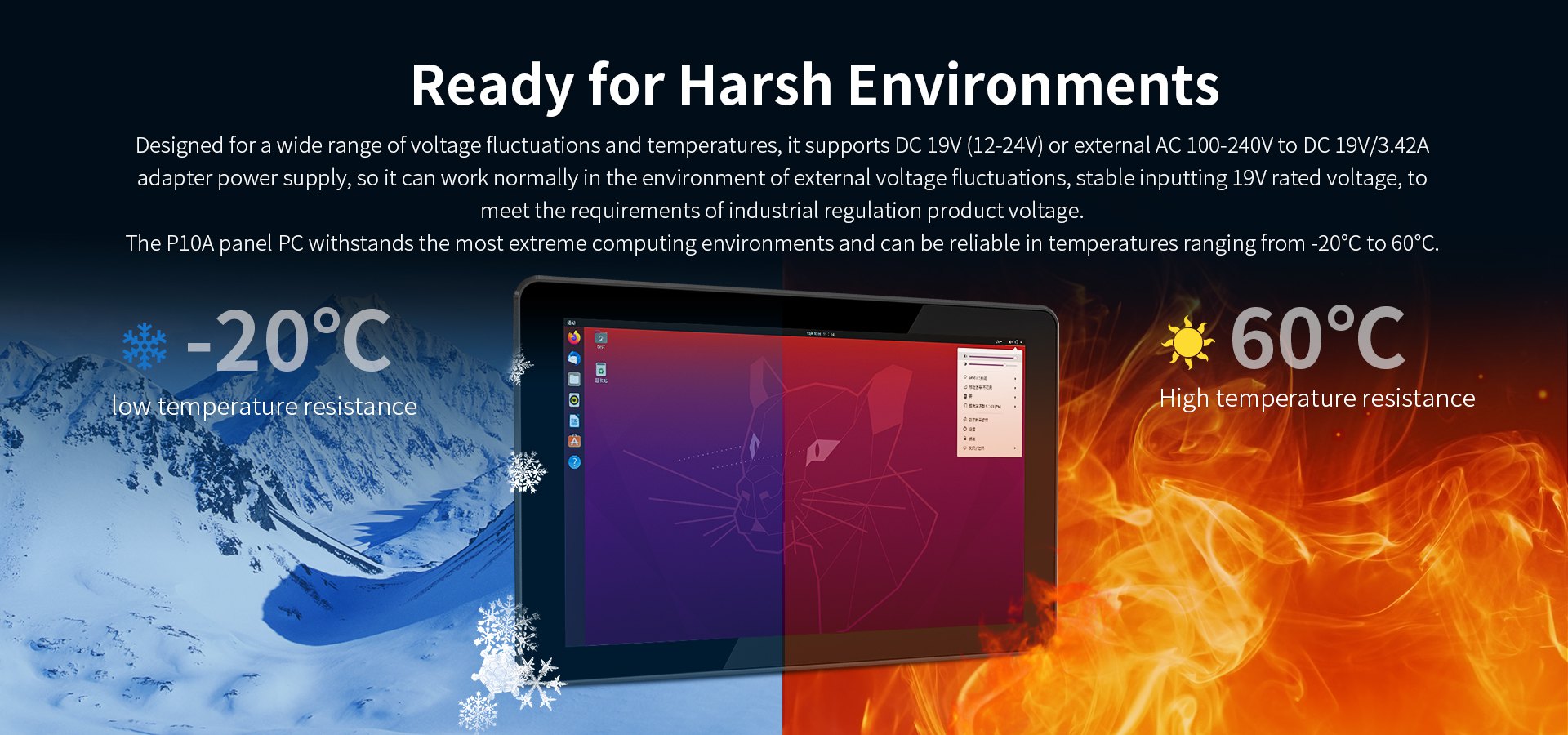

Engineered for uncompromising stability, the P10A features a wide-voltage architecture and thermal resilience, ensuring mission-critical reliability in extreme environments ranging from -20°C to 60°C even during severe voltage fluctuations.
The P10A features a dual-mode mounting architecture, supporting standard PPC hooks and embedded deployment for critical industrial automation nodes.
12th Generation Intel® Core™ i5-1235U Processor（Optional i7-1255U）
Windows 11（HOME PRO IOT)
RAM：8GB
ROM：128GB (Optional 256/512GB)
AC100V ~ 240V, 50Hz/60Hz output DC 19V/3.42A
