Overview
Flexible to use and powerful in functionality

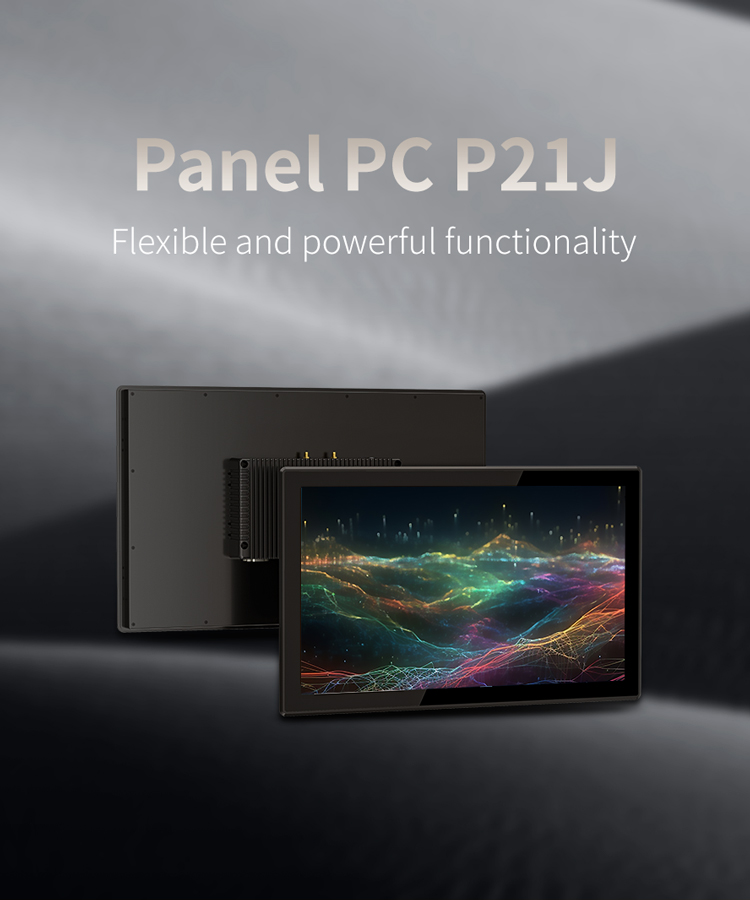

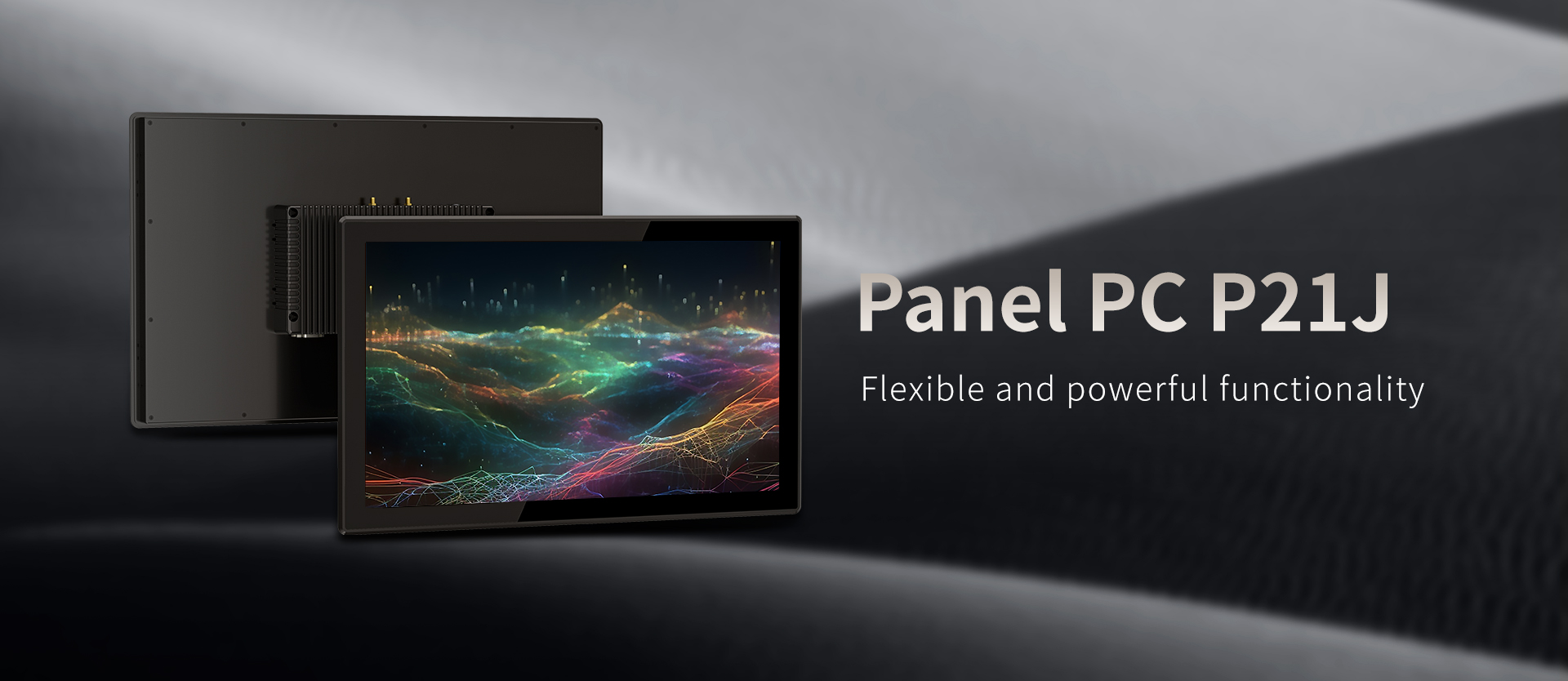

The P21J is a 21.5-inch flat panel pc powered by Intel's 11th generation Celeron processor based on the Jasper Lake platform, and Windows 10/11 operating system for demanding computing, control and visualization tasks. It’s compact and strong structure, fanless design, performance over a wide range of temperatures and voltages, can reliably withstand the rigors of 24/7 operation even in harsh environments. And with various mounting options, it can be widely used in industrial control, communication, network and other automation fields.

Highlights
Full Flat Panel

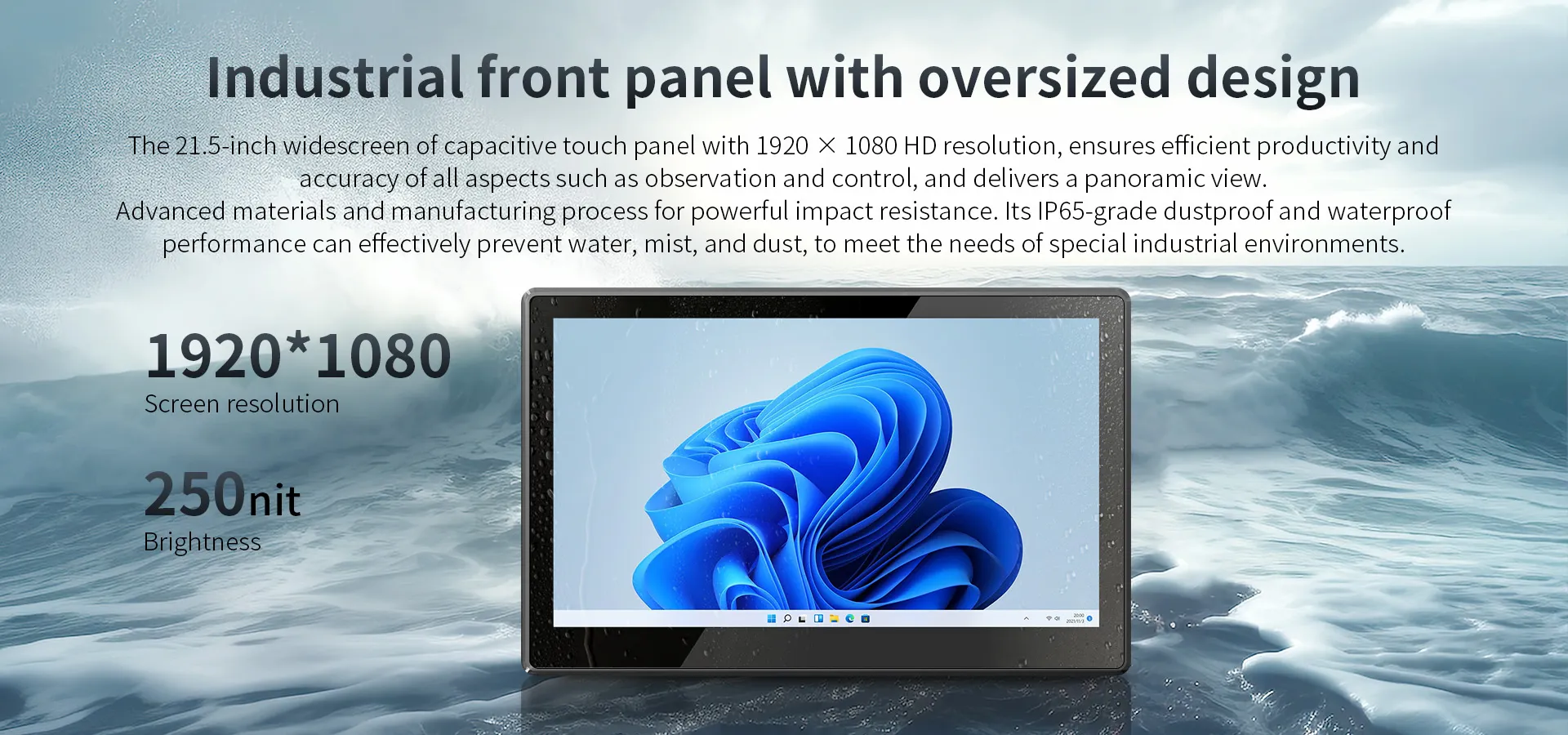

Full 21.5-inch HD display, the IP65-rated front panel protects against water and dust ingress

Excellent Performance

Powered by an 11th generation Intel Celeron processor, equipped with Windows 10 operating system

Industrial Motherboard

Excellent environmental adaptability, anti-electromagnetic interference and anti-static capabilities

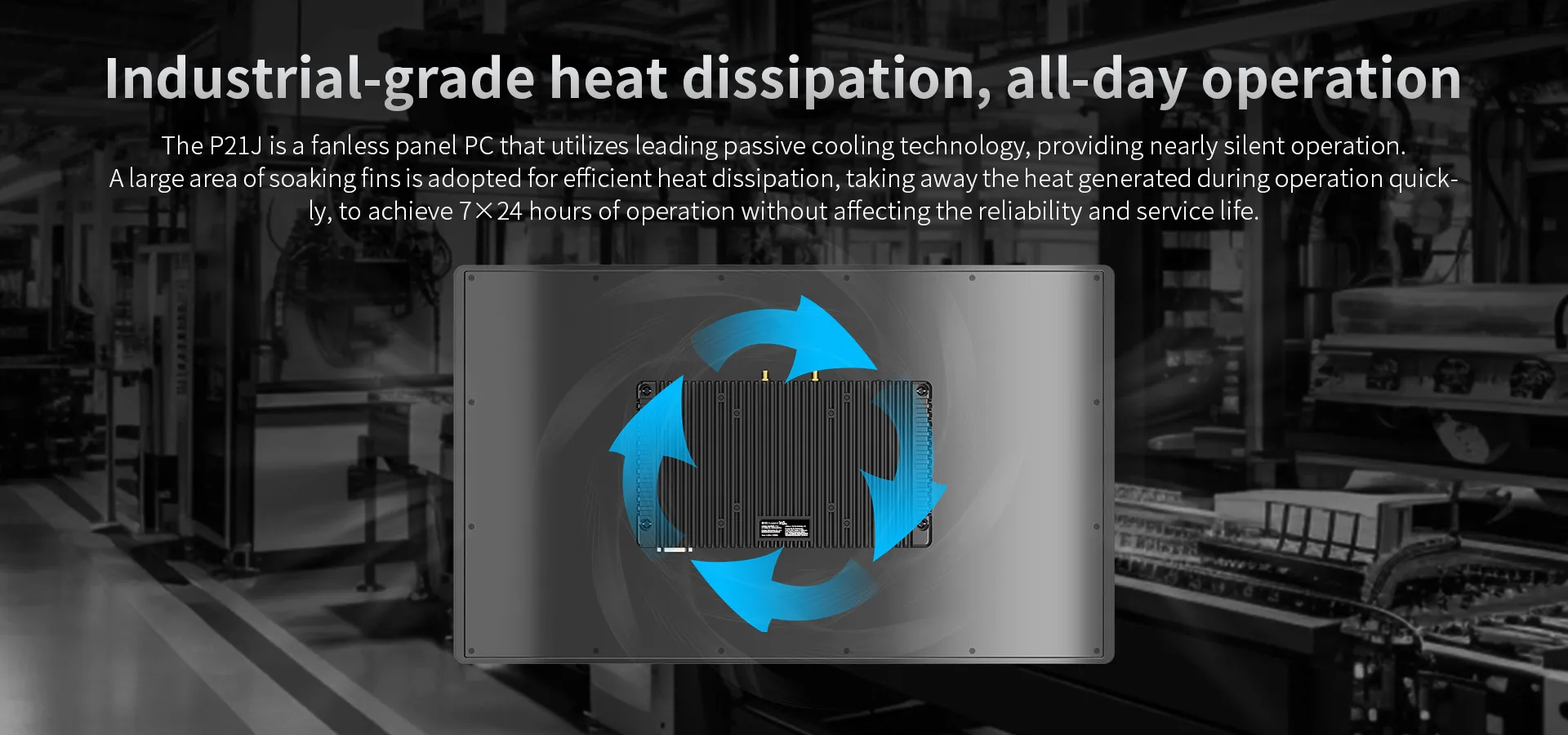

7×24 Operation

Fanless design, using large-area uniform heating fin, running 24/7 without affecting reliability and service life

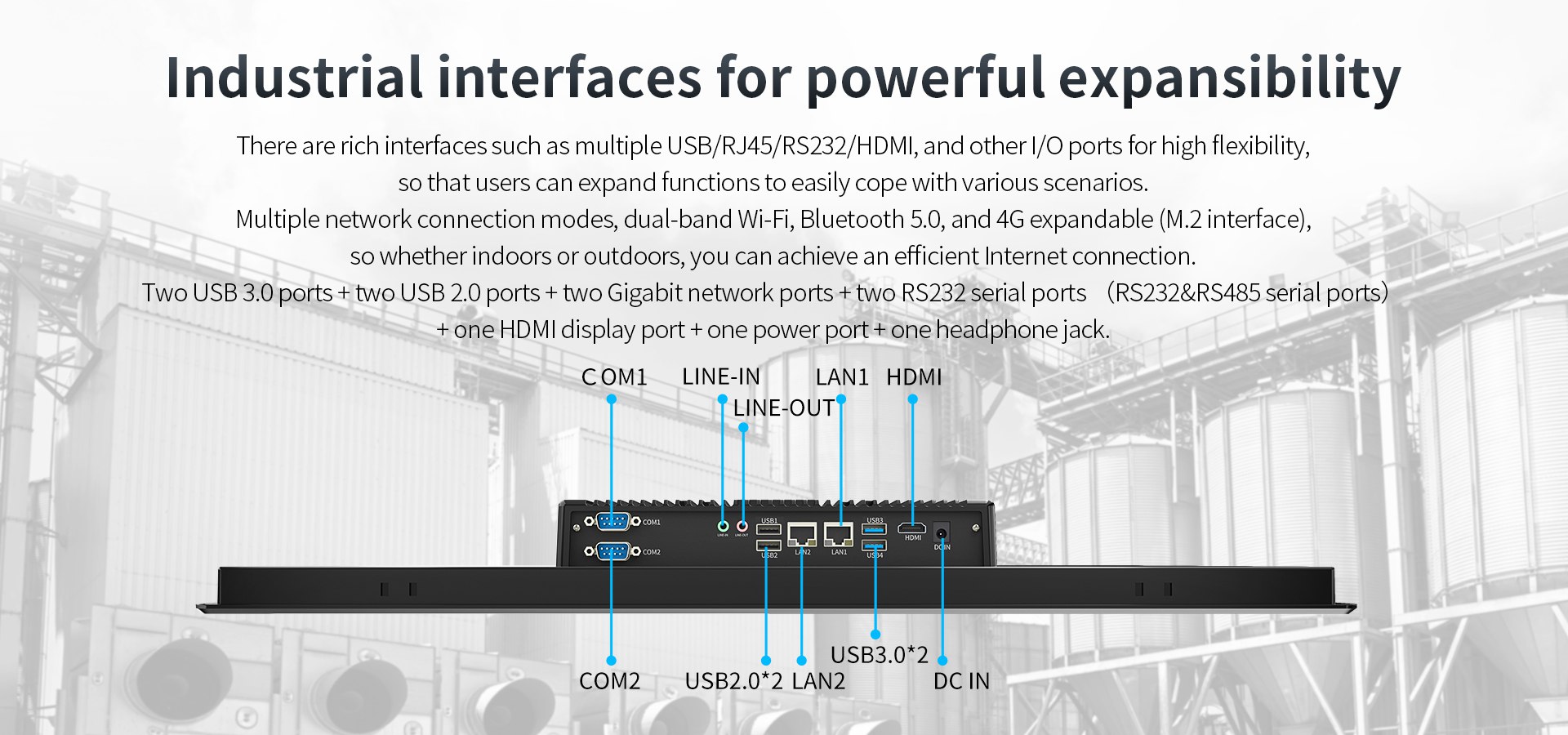

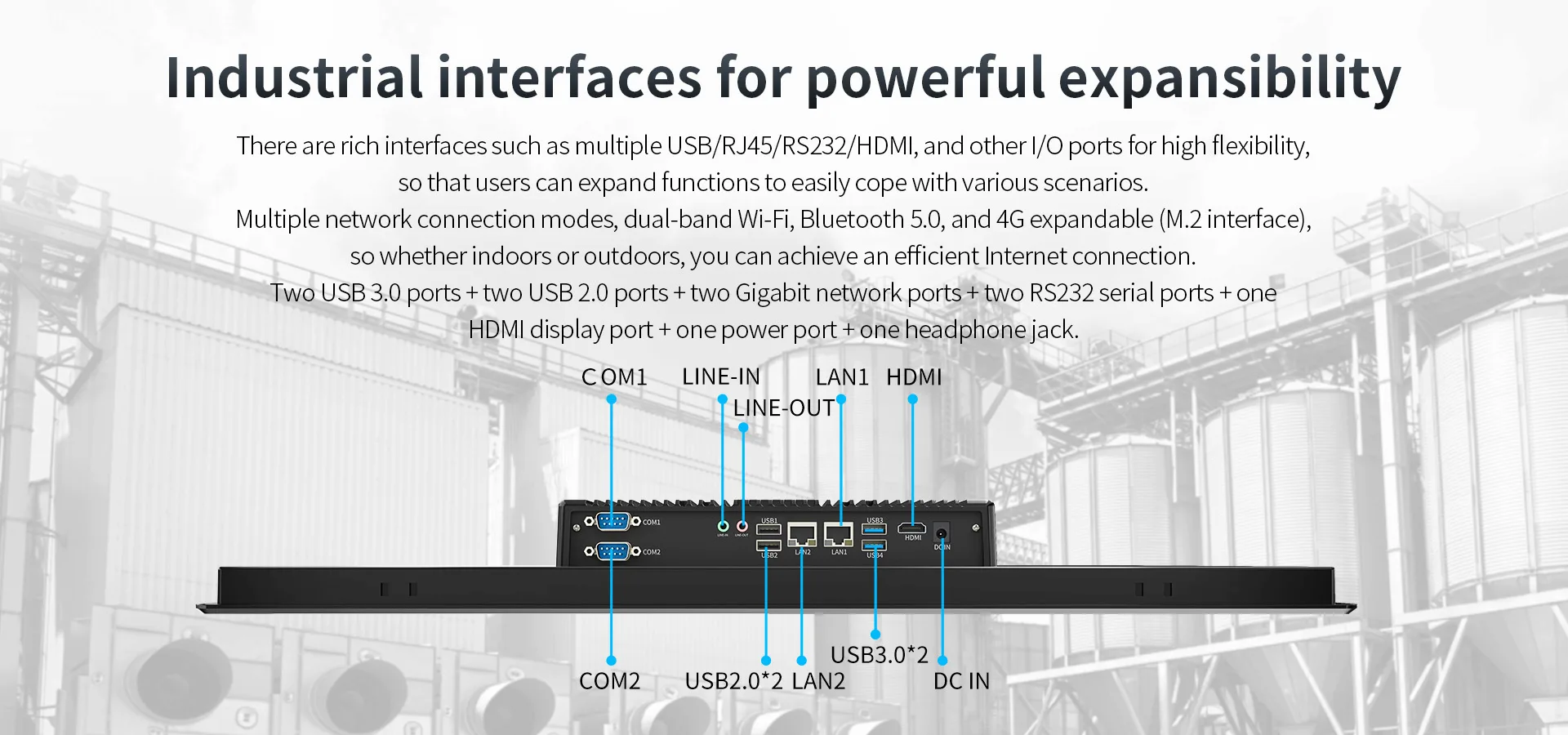

Rich I/O Interfaces

Rich interfaces, including multiple USB/LAN/D89/HDMI and other I/O ports, can easily meet various scenario requirements

Multiple Networking

Dual-band Wi-Fi, Bluetooth 5.0, and expandable 4G (M.2 interface), multiple network connection modes

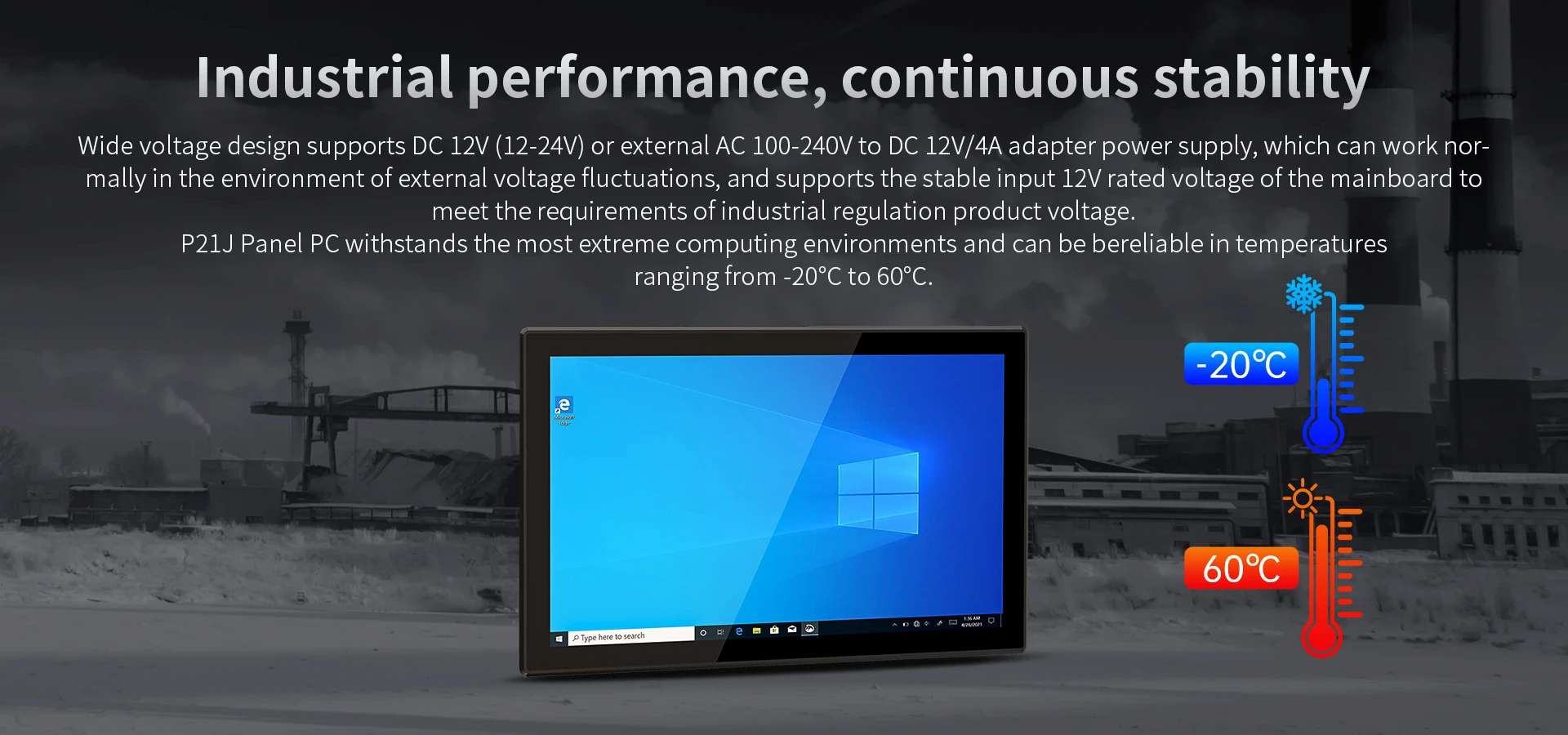

Wide Temperature and Voltage Range

Wide voltage and temperature design, can operate normally even under external voltage fluctuations or in extremely hot or cold conditions

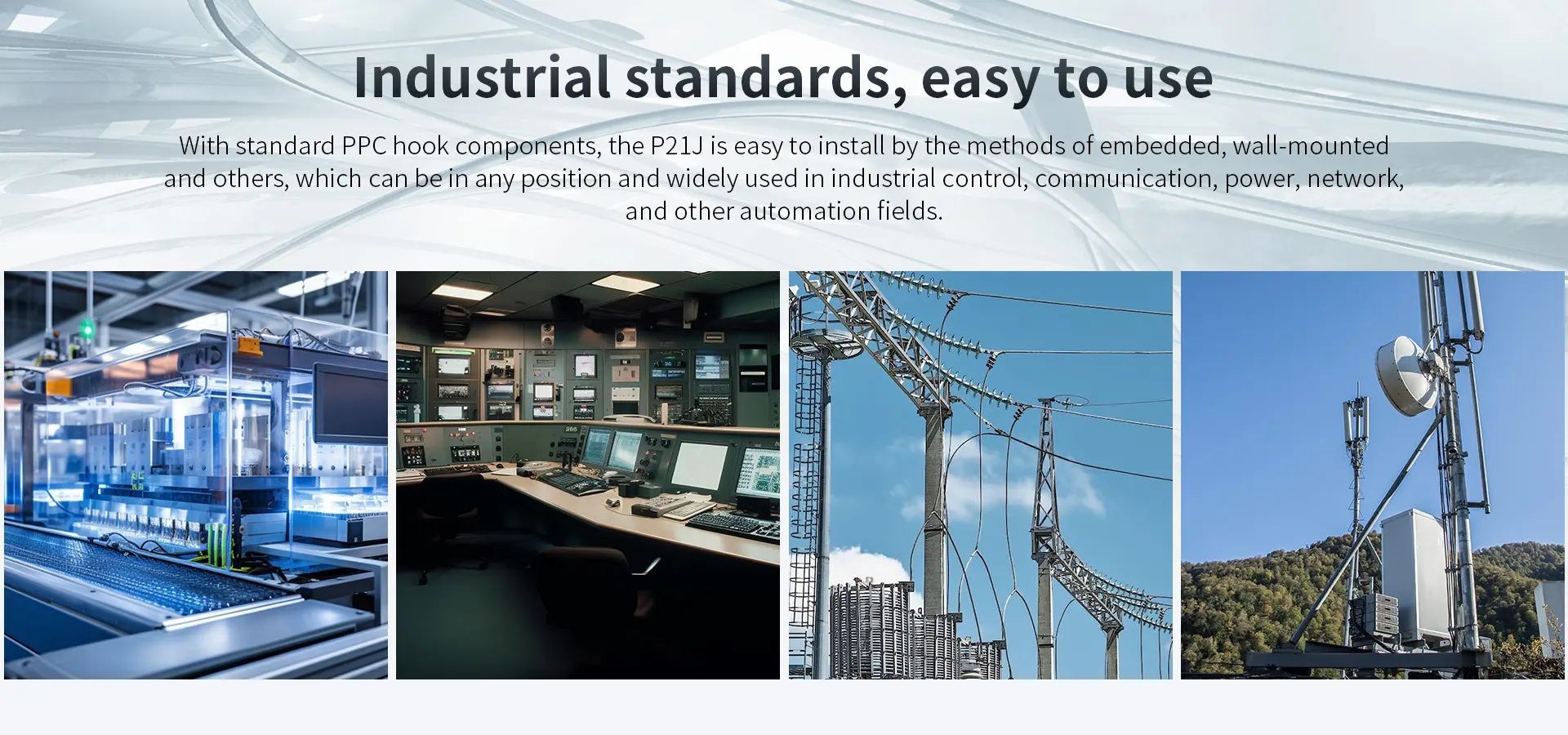

Easy to Install

Standard PPC mounting hook component, easy to install and supports various installation methods such as embedded and wall-mounted

Tech Specs (*Please be aware all technical data, specification and performance figures subject to change without notice.)
Appearance Performance Wireless Ruggedness Accessories
Dimensions

537.02*324.02*57.60 mm

Weight

5.05kg

Product Color

Black

Display

Size: 21.5 inch, resolution: 1920x1080, brightness: 250cd/㎡

Touch Panel

10 PCAP

Ports

Standard USB-A

USB3.0*2 USB2.0*2

Power interface

DC 12V Power connector *1

∮3.5mm Standard Earphone Jack *1

RJ45 *2 (10M/100M/1000M adaptive)

DB9 PORT RS232 *2

HDMI 2.0a *1
