B10J - 10.1" Embedded computer Box PC - ONERugged

B10J Windows 11 Home

Product Introduction Technical Specifications Downloads

Home/Products/Industrial PC/B10J Windows 11 Home

B10J Windows 11 Home

Product Introduction

B10J Windows 11 Home

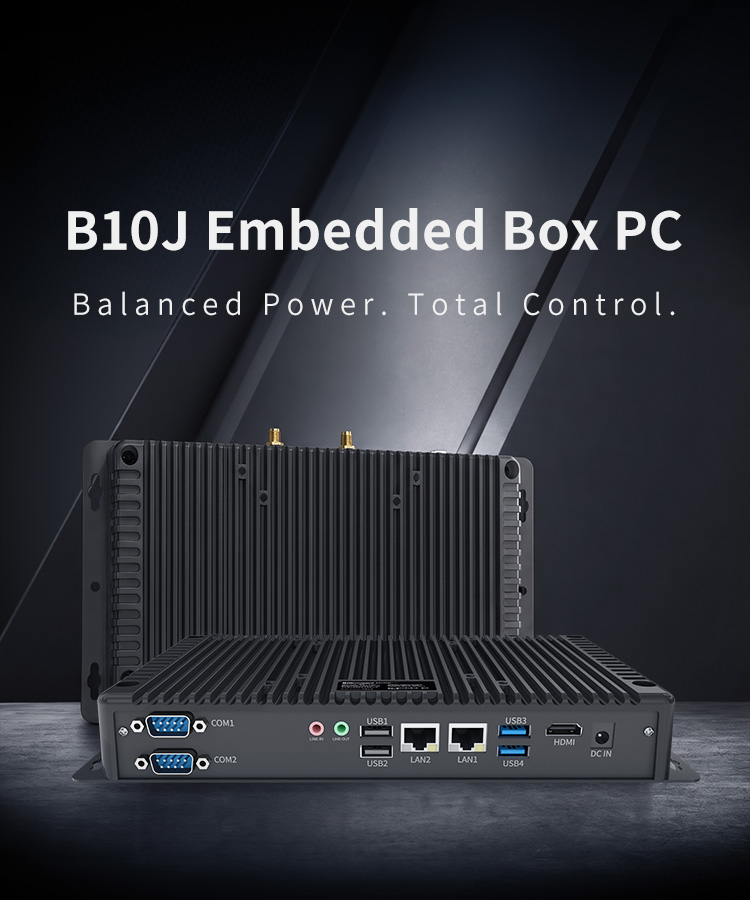

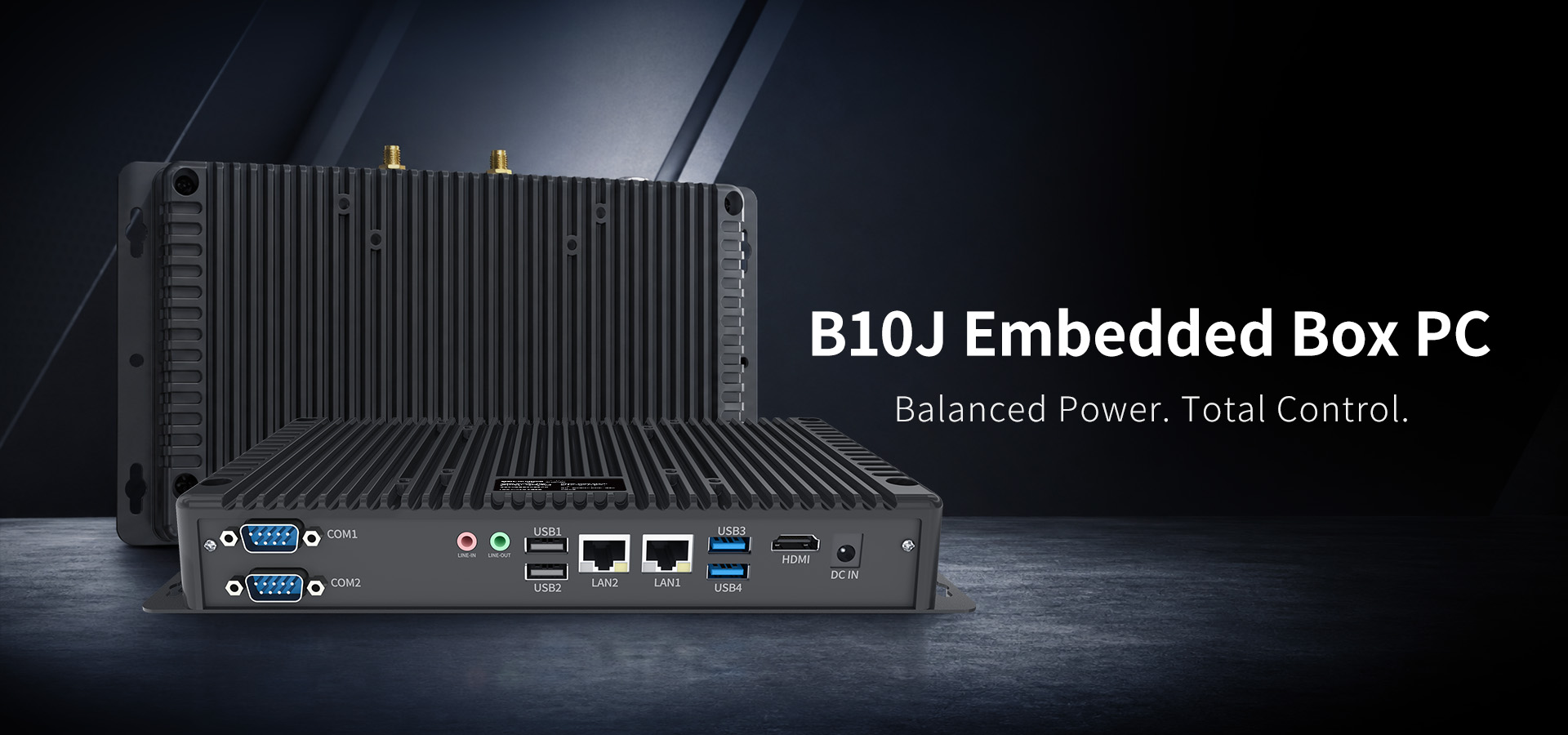

Discover the B10J Embedded Box PC by ONERugged. Powered by Intel® Processor N5100, it features 8GB RAM, 128GB SSD, wide-temperature operation, and a fanless rugged chassis for dependable 24/7 industrial performance.

Jasper Lake N5100 processor Embedded Box PC
Windows 11 Home
Intel® Processor N5100 (4 cores, 4 threads, up to 2.8GHz)

Get A Quote Technical Specifications

Highlights

Excellent Performance

Intel N5100 processor, Windows 11 Home/Pro

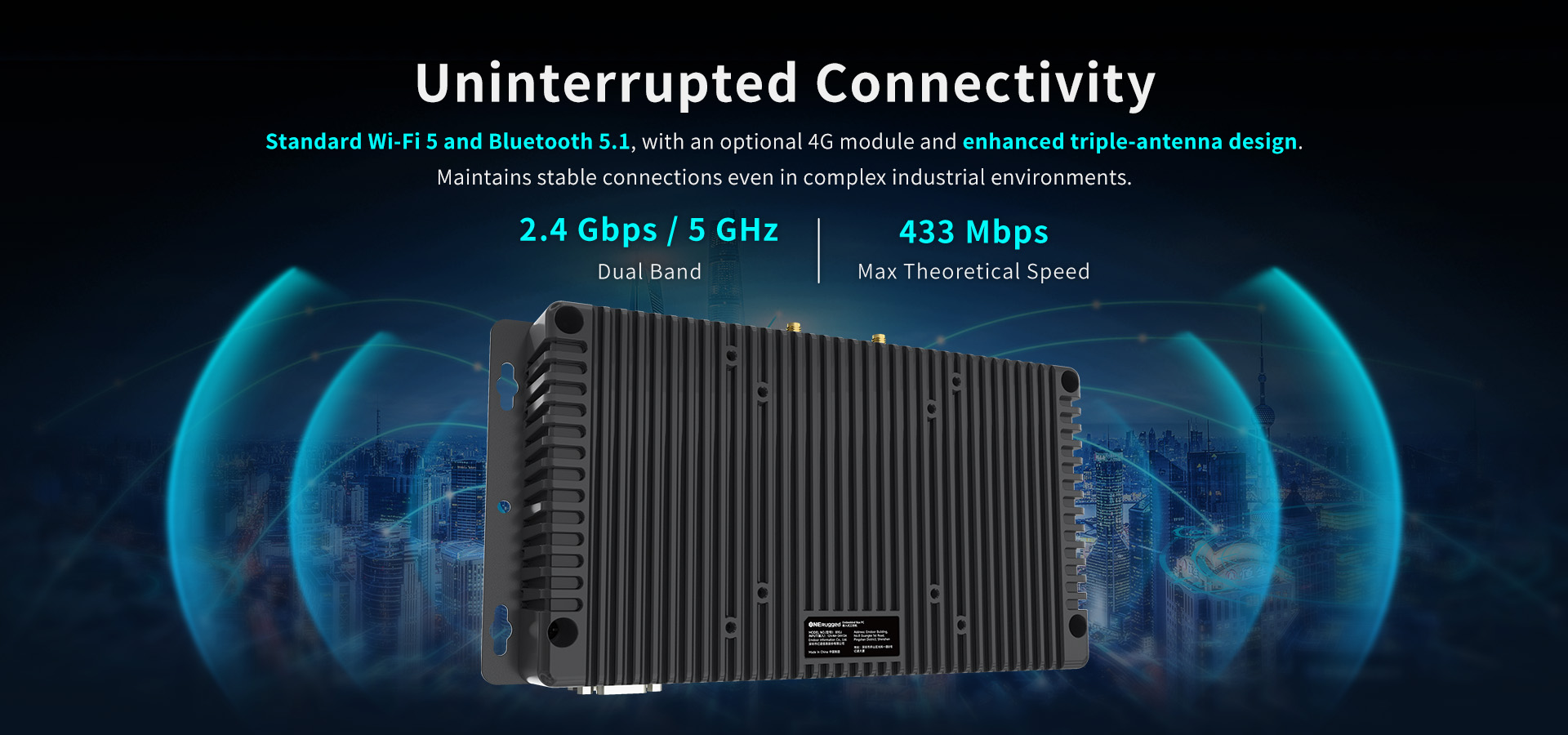

Versatile Connectivity

Wi-Fi 5, Bluetooth 5.1, optional 4G LTE

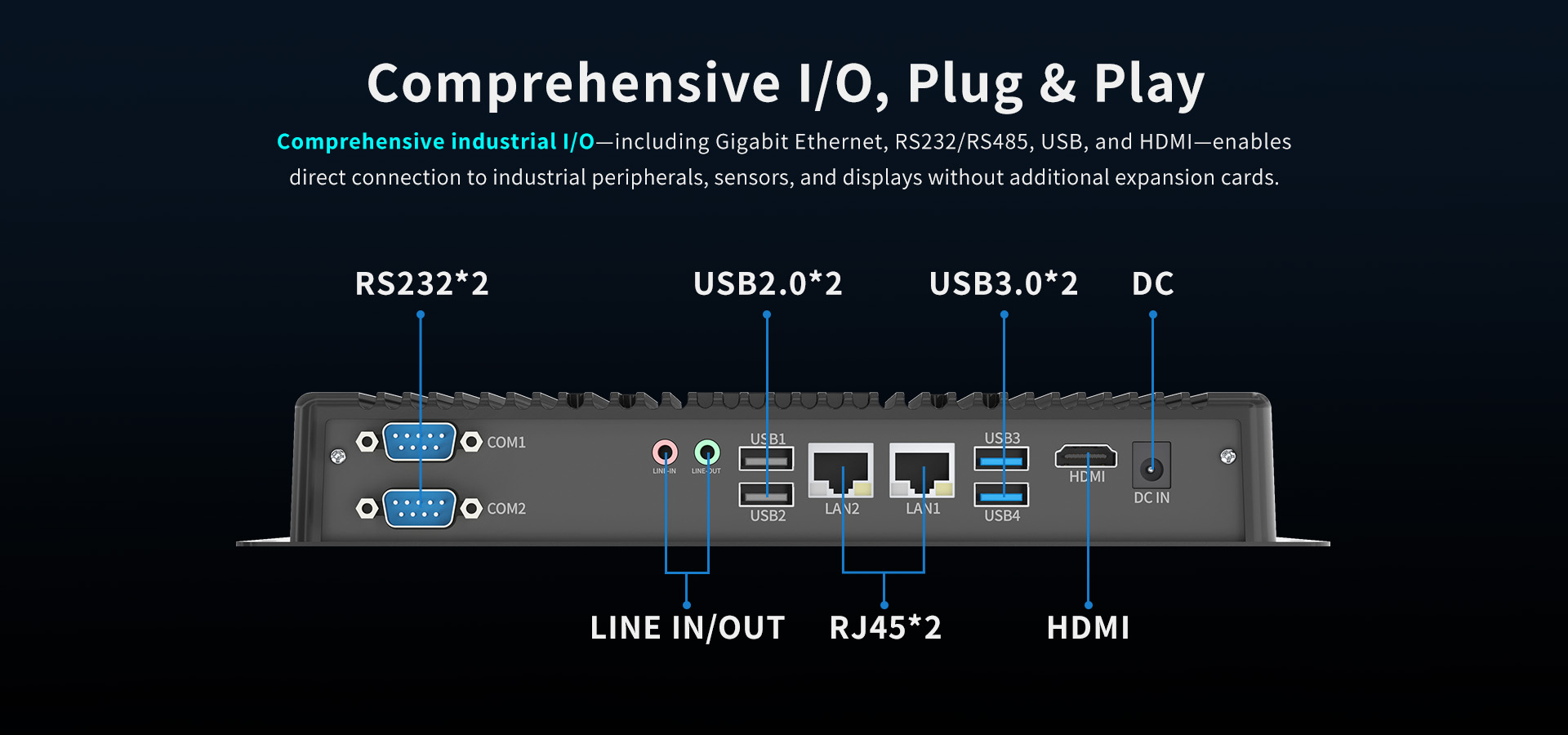

Rich Interface Options

USB, RJ45, RS232, HDMI; supports SSD expansion

Reliable Fanless Design

Fanless design, -20°C to 60°C operating temperature

Wide Voltage

12-24V DC input, OVP protection

Harsh Test

IP65 front panel, ±8kV/±15kV ESD, MIL-STD-810H certified

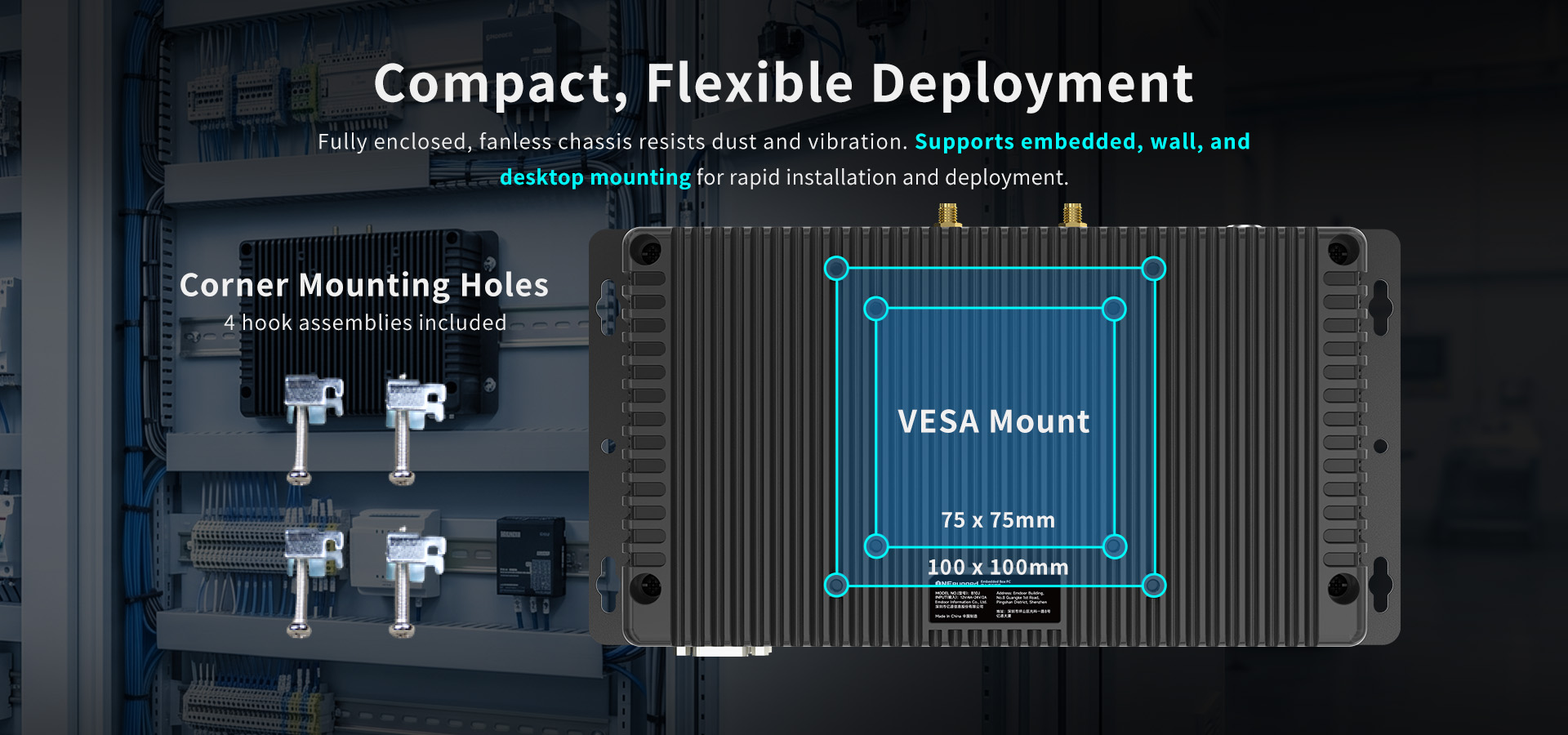

Easy Installation

264 × 135.2 × 37.2 mm; panel, wall, and desktop mounting

embedded box pc

embedded box pc windows 11

embedded computer

control machine

embedded industrial box pc

embedded box pc manufacturer

embedded box pc manufacturer

Tech Specs (*Please be aware all technical data, specification and performance figures subject to change without notice.)

DB9 RS232 *2 Performance Wireless Ruggedness Accessories

Dimensions

264*135.2*37.2 mm

Weight

1.0kg

Product Color

Black

I/O Ports

SIM *1

USB3.0*2 USB2.0*2

DC 12V-24V *1

M.2 *1

∮3.5mm Standard earjack*1

HDMI *1

RJ45 *2

DB9 RS232 *2

Processor

Intel 11th-Gen Jasper Lake N5100 processor

Operating System

Windows 11

Memory+Storage

RAM：8GB

ROM：128GB

Adapter

AC100V ~ 240V, 50Hz/60Hz output DC 12V/4A

WiFi

WIFI 5

WAN

Expandable: 4G

Bluetooth

BT5.0

Rugged Features

Working temperature: -20 °C to 60 °C

Storage temperature: -30 °C to 70 °C

Humidity: 95% Non-Condensing

Standard

Adapter, PPC hook assembly, Antenna

选配配件

内容

Downloads

Download manuals, software, images and videos and get access to online technical support resources and troubleshooting.

Accessories

12V4A adapter

Antenna(wifi)

Hook Assembly
