B10R - 10.1 inch Fanless Embedded Box PC-ONERugged

B10R Android 12

Product Introduction Technical Specifications Downloads

Home/Products/Industrial PC/B10R Android 12

B10R Android 12

Product Introduction

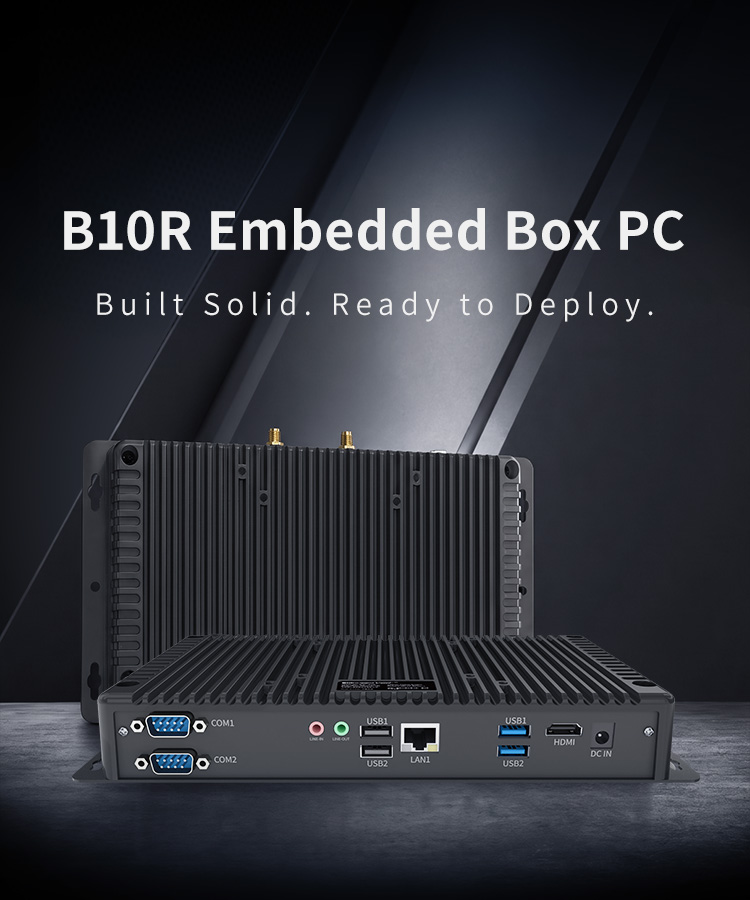

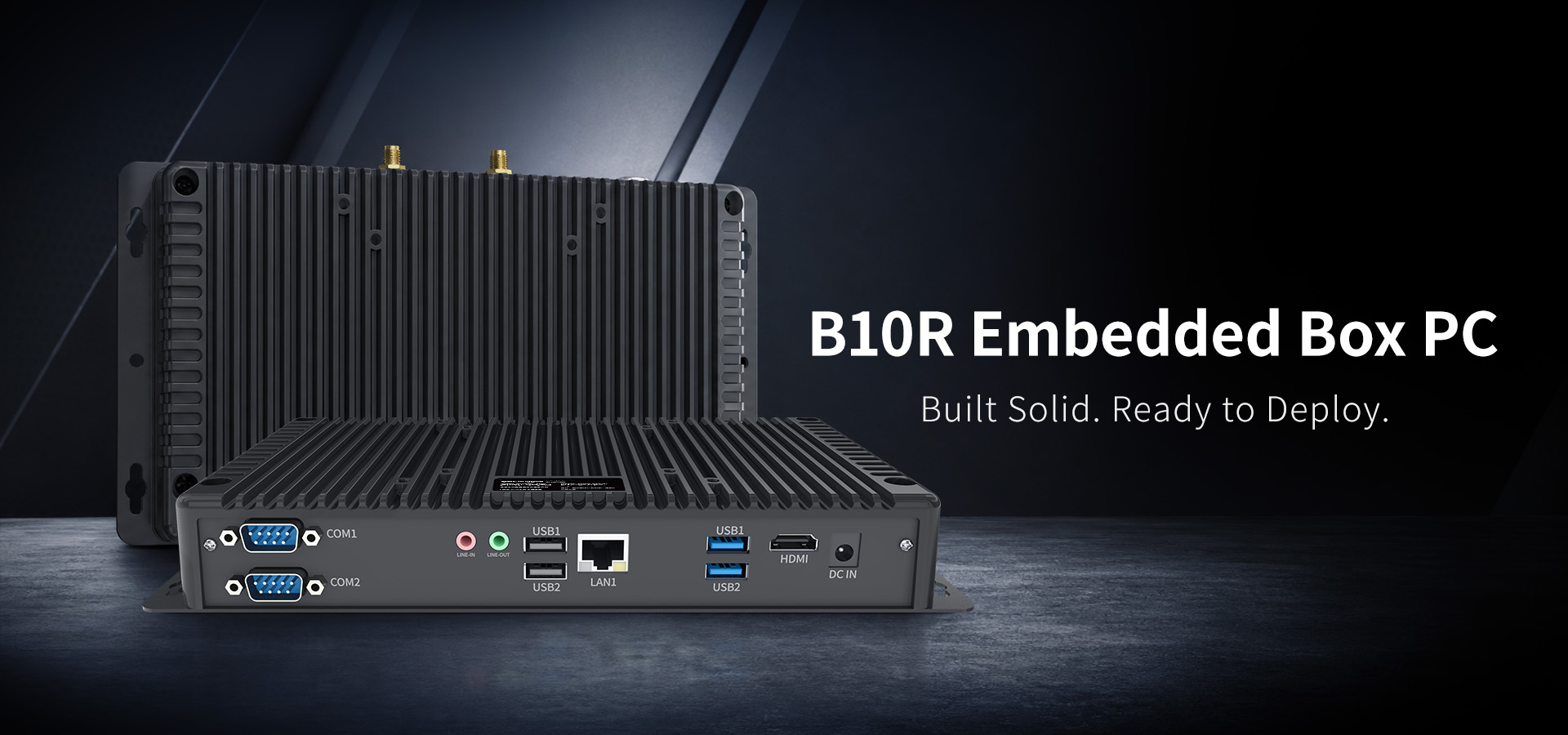

B10R Android 12

Powered by the quad-core Rockchip RK3568 processor and Android 12, the B10R delivers reliable 24/7 performance for industrial edge gateways, self-service kiosks, and digital signage.

Embedded Box PC
Android 12
RK3568 quad-core processor

Get A Quote Technical Specifications

Highlights

Excellent Performance

Excellent Performance

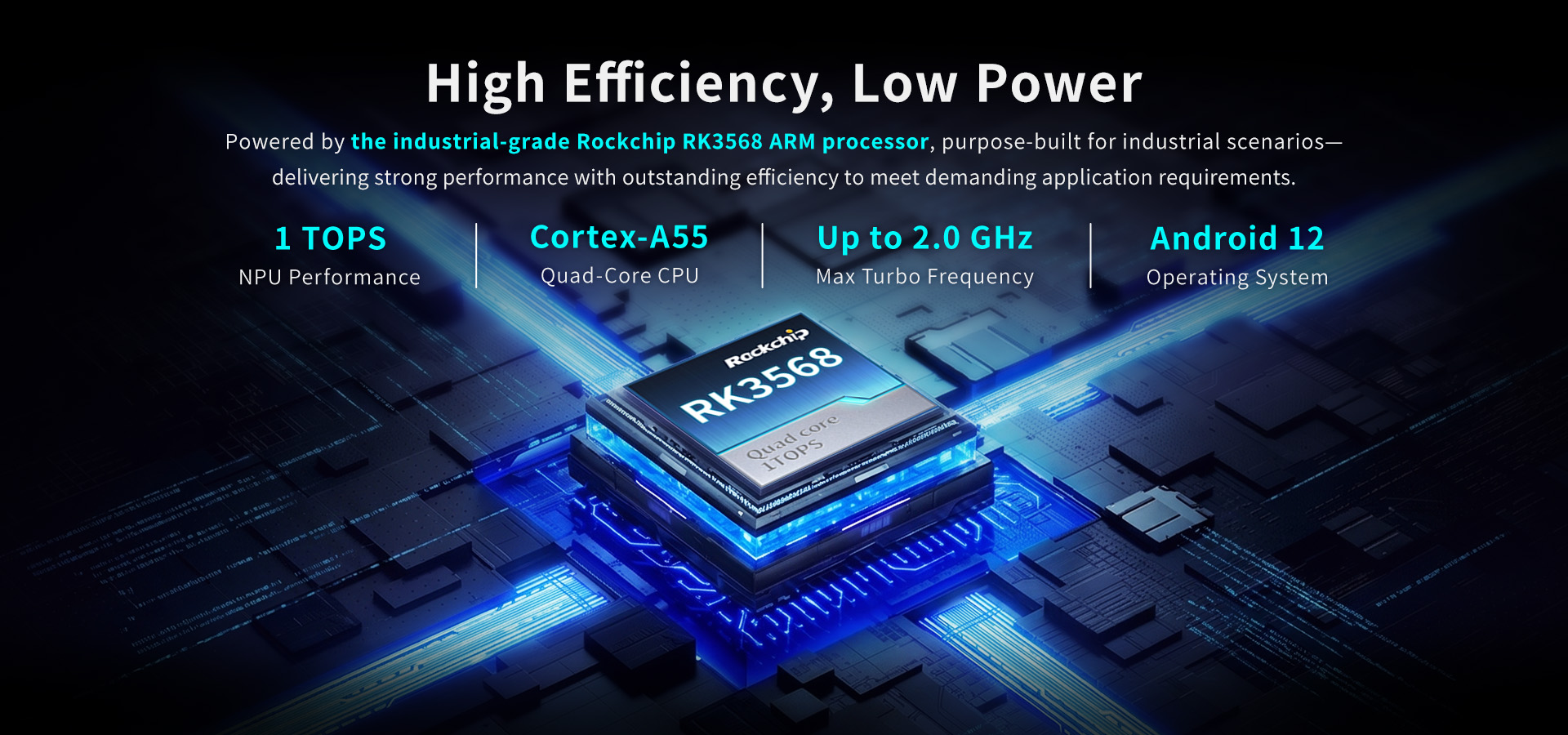

Rockchip RK3568 quad-core processor, Android 12

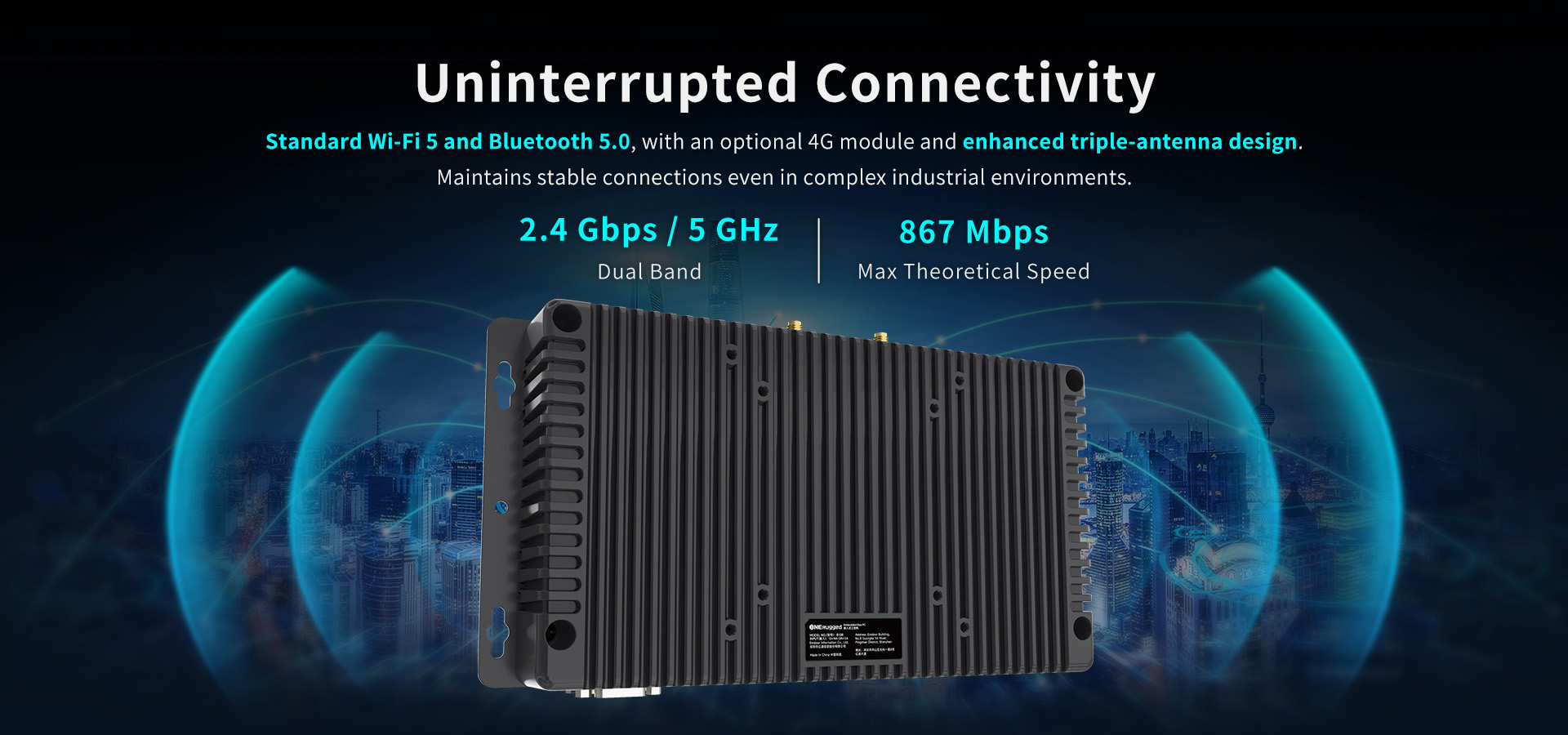

Versatile Connectivity

Versatile Connectivity

Wi-Fi 5, Bluetooth 5.0, optional 4G LTE

Rich Interface Options

Rich Interface Options

USB, RJ45, RS232, HDMI; standard 4GB RAM + 64GB storage

Reliable Fanless Design

Reliable Fanless Design

Fanless chassis, -20°C to 60°C operating temperature

Wide Voltage

12-24V DC input, anti-interference, OVP protection

Harsh Test

IP65 front panel, ±8kV/±15kV ESD

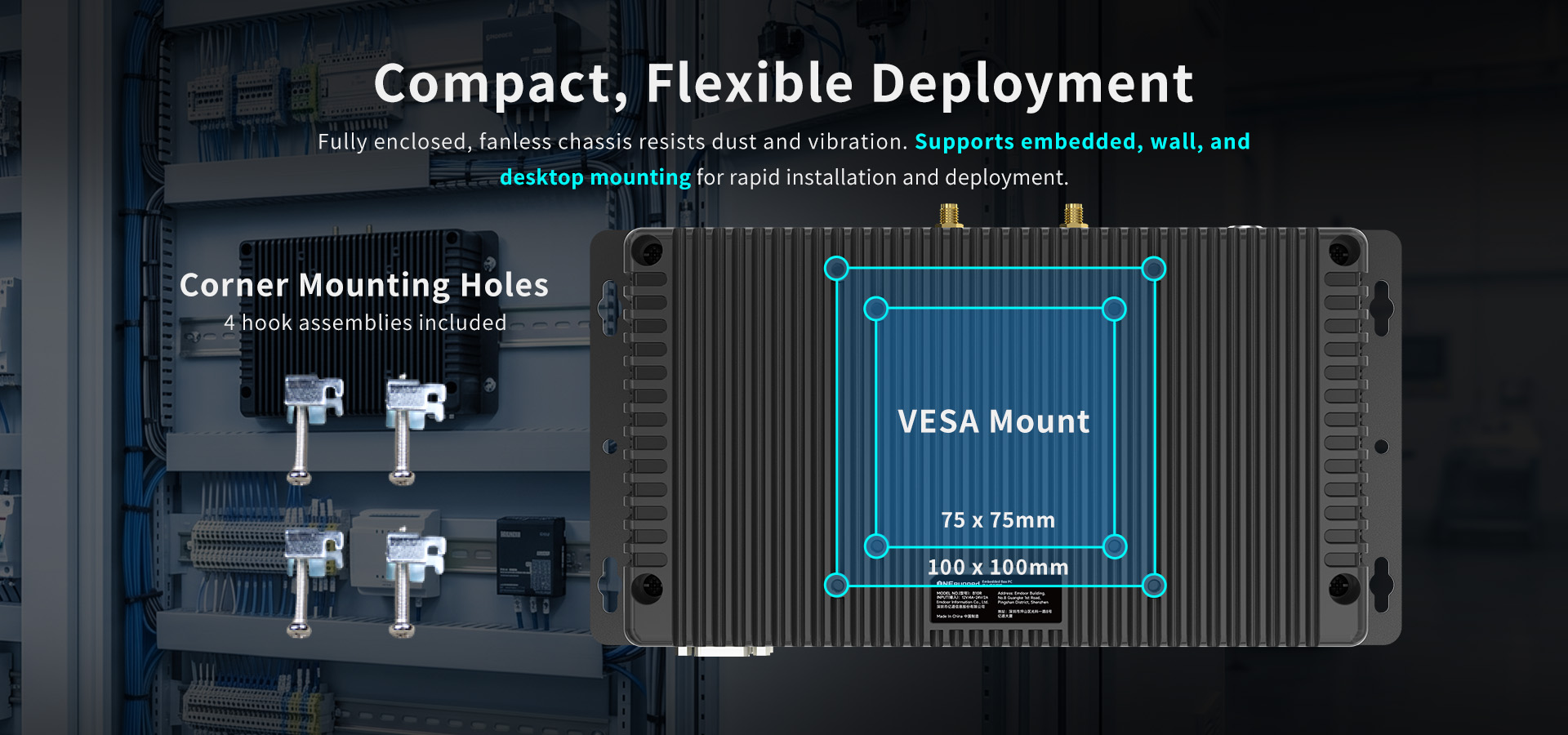

Easy Installation

Easy Installation

264 × 135.2 × 37.2 mm; panel, wall, and desktop mounting

embedded box pc

embedded box pc with RK3568

control machine

fanless industrial pc

embedded industrial box pc

embedded box pc with wi-fi 5

embedded industrial box pc

Tech Specs (*Please be aware all technical data, specification and performance figures subject to change without notice.)

Appearance Performance Wireless Ruggedness Accessories

Dimensions

264*135.2*37.2 mm

Weight

1.0kg

Product Color

Black

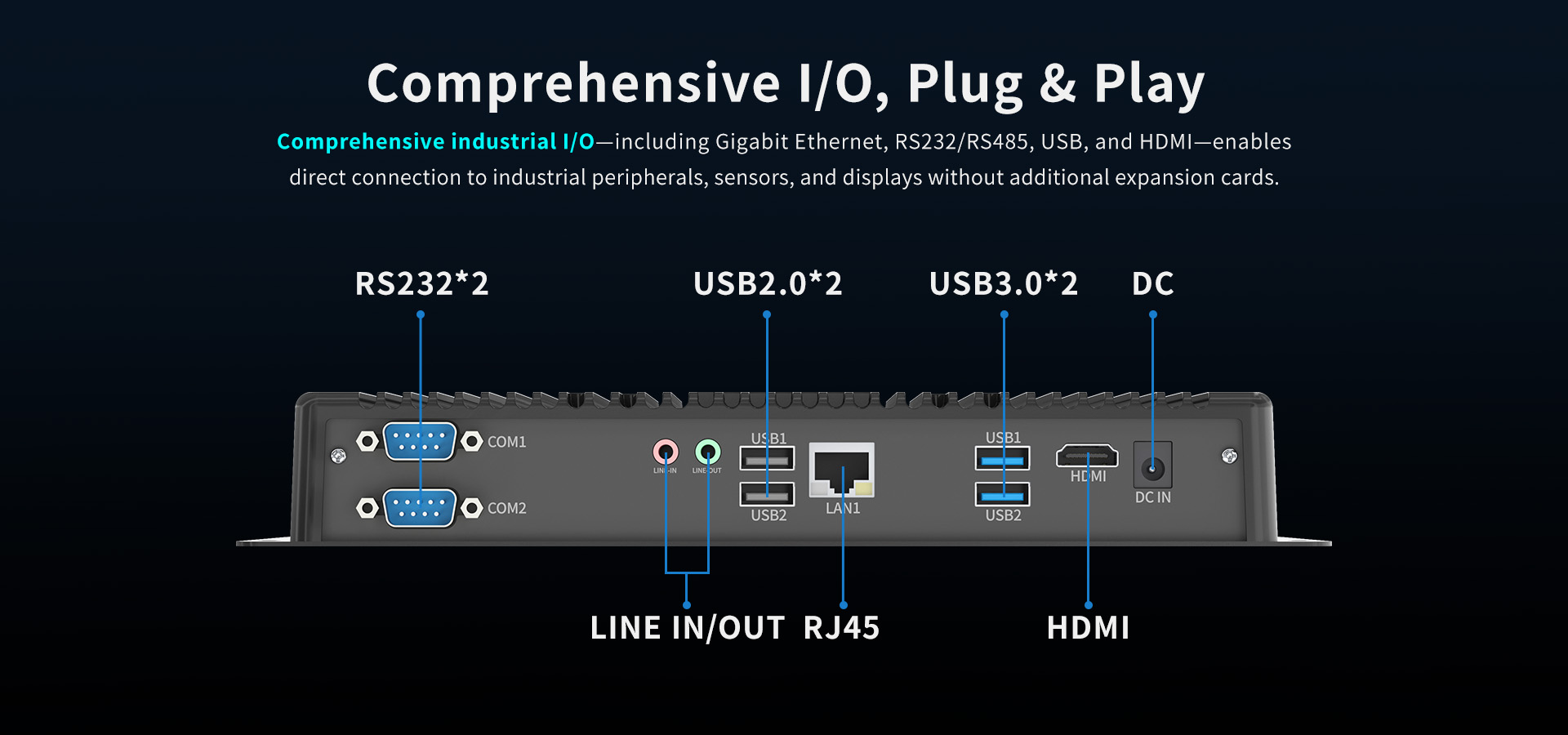

I/O Ports

SIM*1 TF*1

USB3.0*1 + USB3.0*1 OTG + USB2.0*2

DC IN 12-24V *1

DB9 RS232 *2

∮3.5mm Standard earjack*1

RJ45 *1

HDMI *1

M.2 *1

Processor

RK3568 Processor

Operating System

Android 12

Memory+Storage

RAM：4GB

ROM：64GB

Adapter

AC100V ~ 240V, 50Hz/60Hz output DC 12V/4A

WiFi

802.11a/b/g/n/ac

Bluetooth

BT5.0

Rugged Features

Working temperature: -20 °C to 60 °C

Storage temperature: -30 °C to 70 °C

Humidity: 95% Non-Condensing

Standard

Adapter, PPC hook assembly, Antenna

选配配件

内容

Downloads

Download manuals, software, images and videos and get access to online technical support resources and troubleshooting.

Accessories

12V4A adapter

Antenna(wifi)

Hook Assembly
