Product Introduction

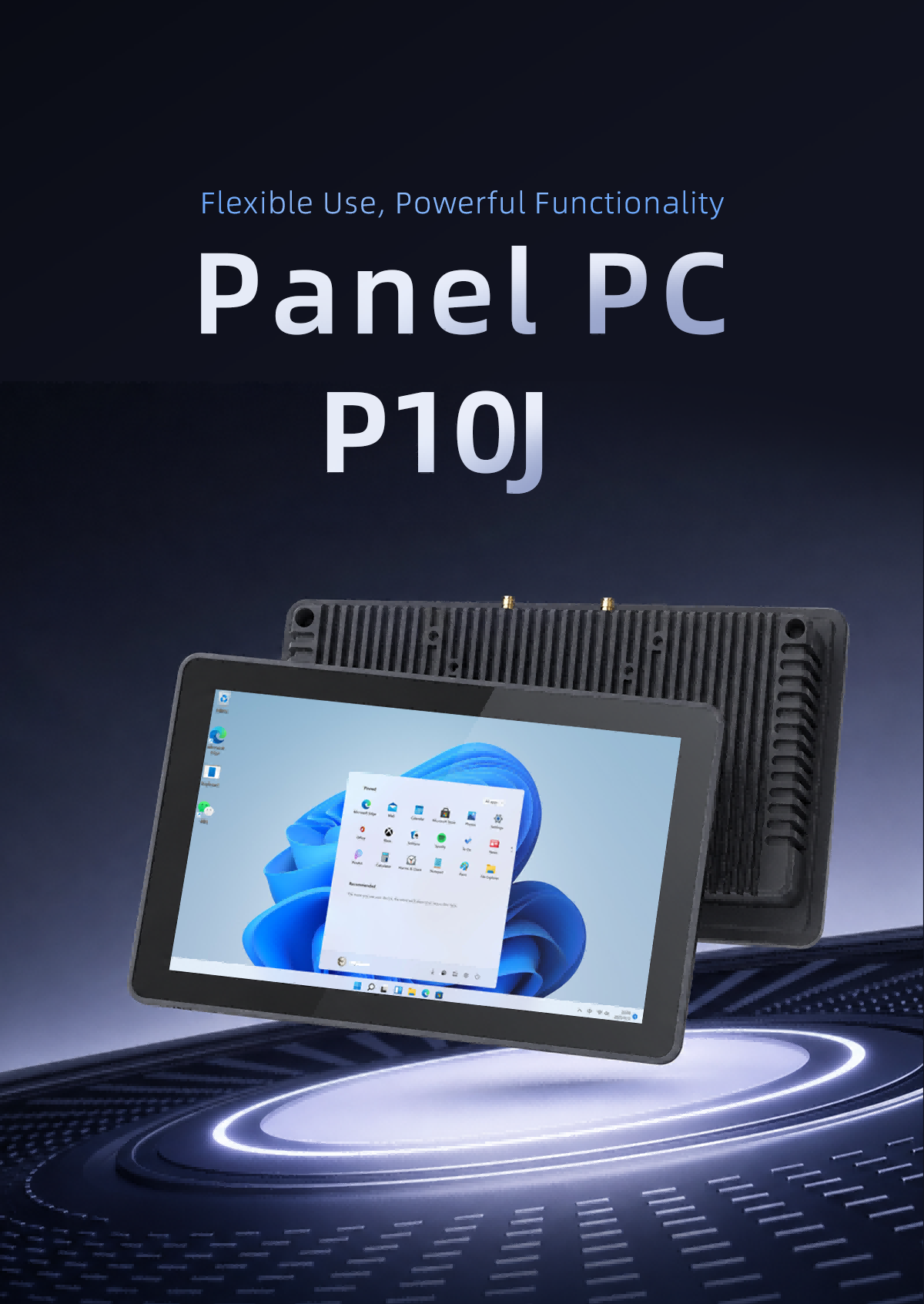

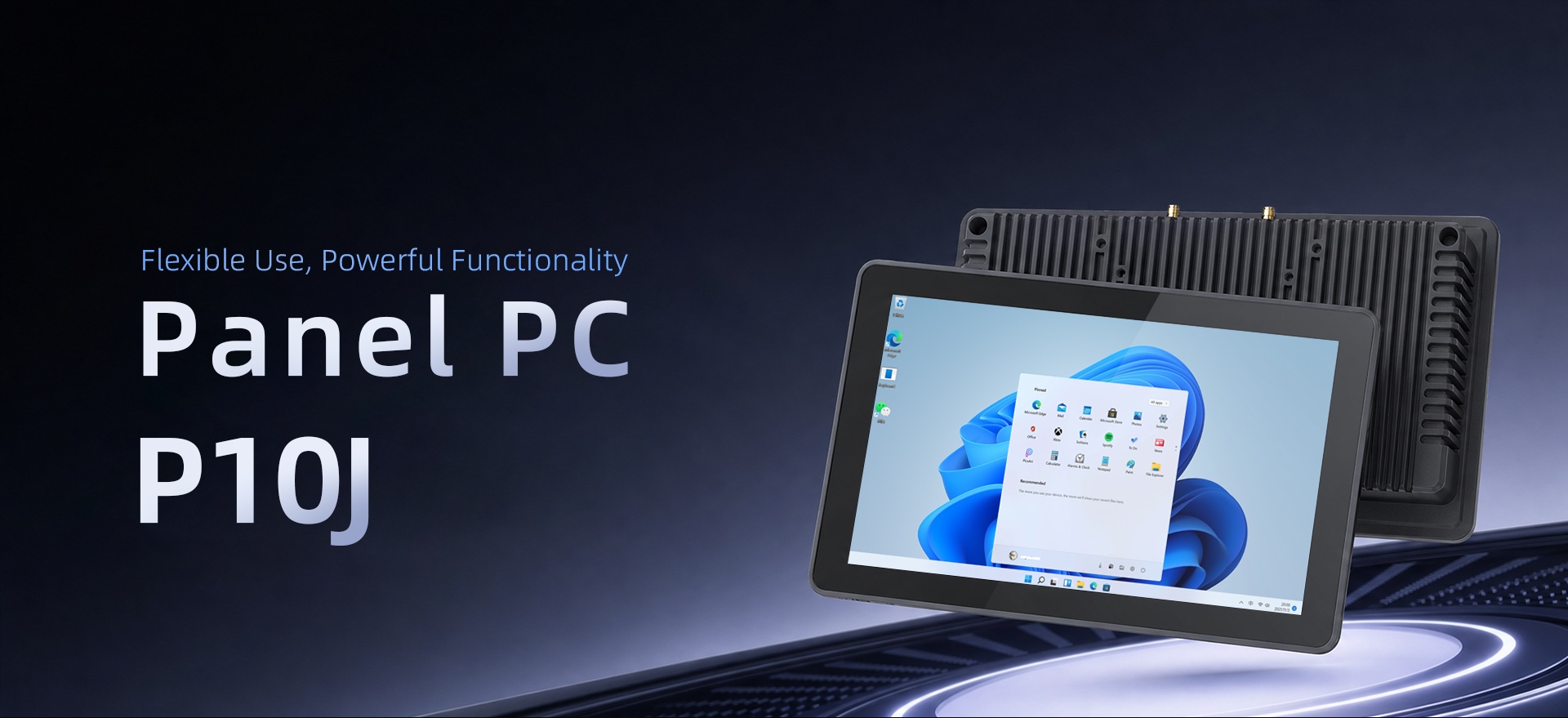

The P10J is a 10.1-inch flat panel pc powered by Intel's 11th generation Celeron processor based on the Jasper Lake platform, and Windows 11 operating system for demanding computing, control and visualization tasks. It’s compact and strong structure, fanless design, performance over a wide range of temperatures and voltages, can reliably withstand the rigors of 24/7 operation even in harsh environments. And with various mounting options, it can be widely used in industrial control, communication, network and other automation fields.
10.1-inch HD display, 700 nits, front panel IP65 compliant
Intel N5100 processor, Windows 11 Home
Integrated TPM 2.0, +8kV contact discharge, ±15kV air discharge
Fanless rugged design
USB 3.0 x2, USB 2.0 x2, 10/100/1000 Ethernet x2, HDMI 2.0 x1, RS232 x2
Wi-Fi 5, Bluetooth 5.1, optional 4G LTE
Operating temperature: -20°C to 60°C, DC in 12-24V
Standard hook assembly, supports embedded and wall installation
10.1-inch industrial panel PC powered by Intel N5100 processor. Features a fanless rugged design, IP65 front panel, and Windows 11 Home. Engineered for industrial HMI and automation.

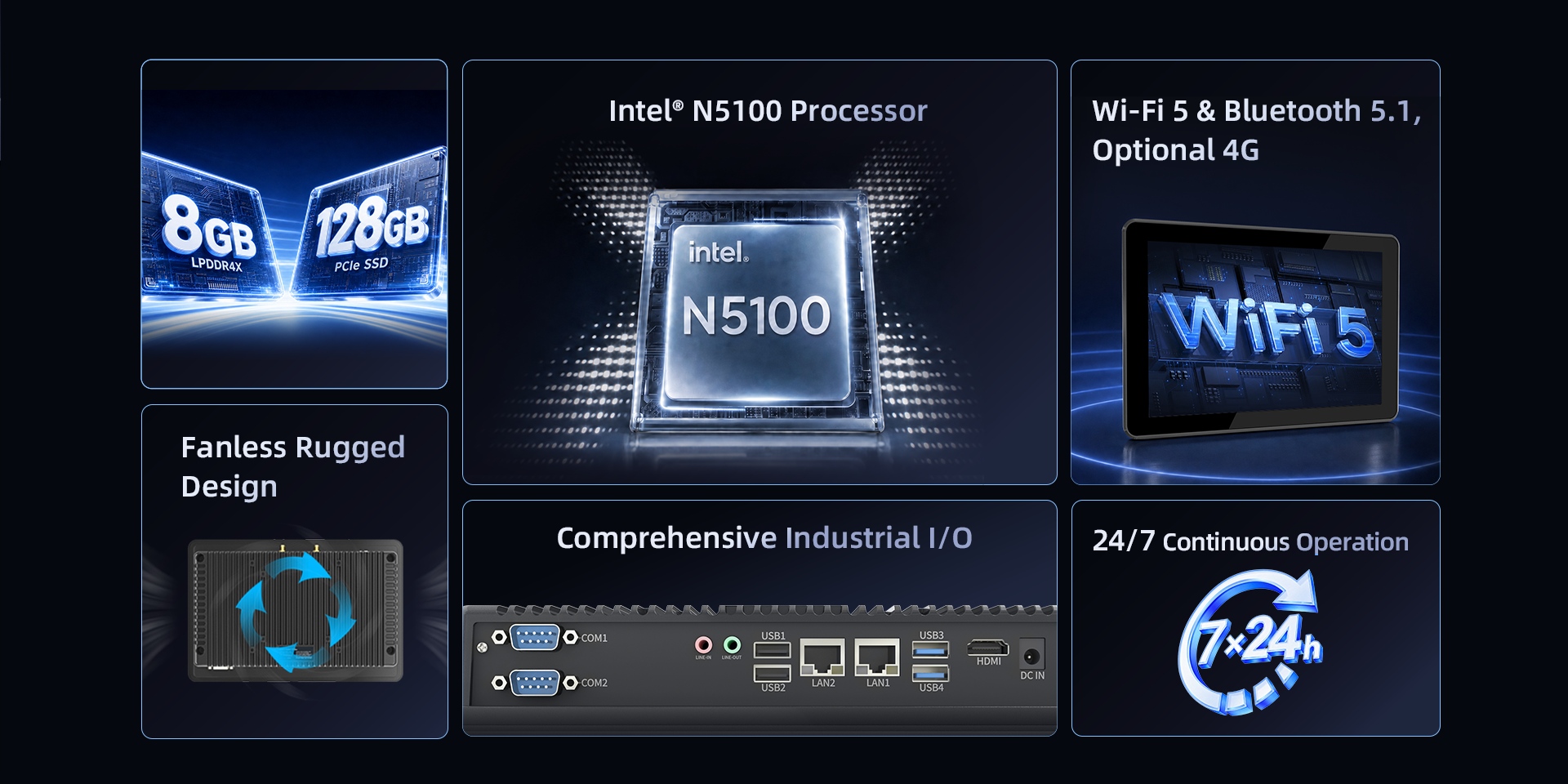

Powered by the Intel N5100 processor, the P10J industrial panel PC is engineered for 24/7 continuous operation. Featuring a fanless rugged design, 8GB LPDDR4X memory, and a 128GB PCIe SSD, it delivers stable data processing alongside comprehensive industrial I/O and versatile wireless connectivity.
Powered by the Intel N5100 processor and integrated TPM 2.0 hardware security, the P10J balances efficient compute performance with hardware-level data security for light industrial applications.

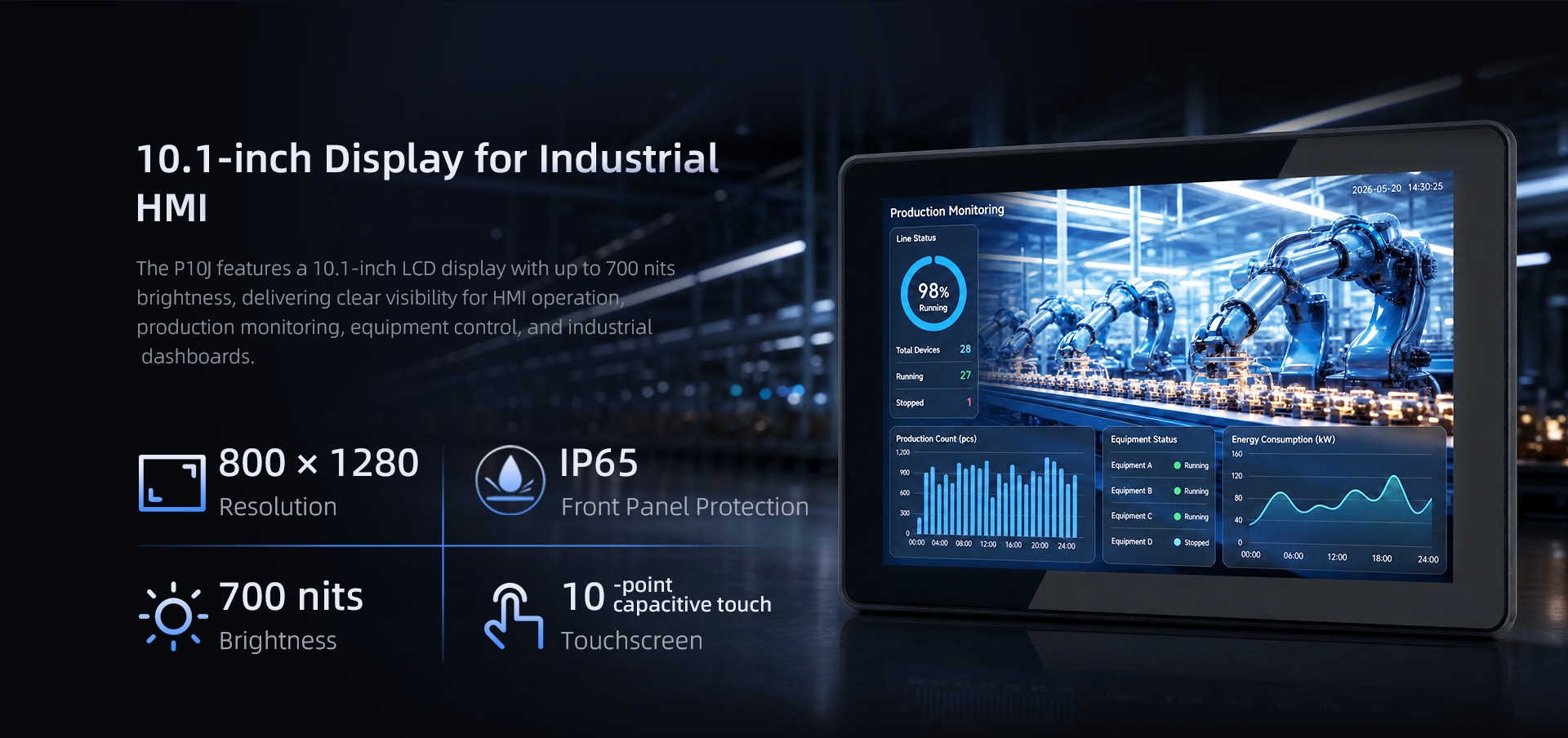

The P10J features a 10.1-inch LCD display with up to 700 nits brightness, delivering clear visibility for HMI operation, production monitoring, equipment control, and industrial dashboards.

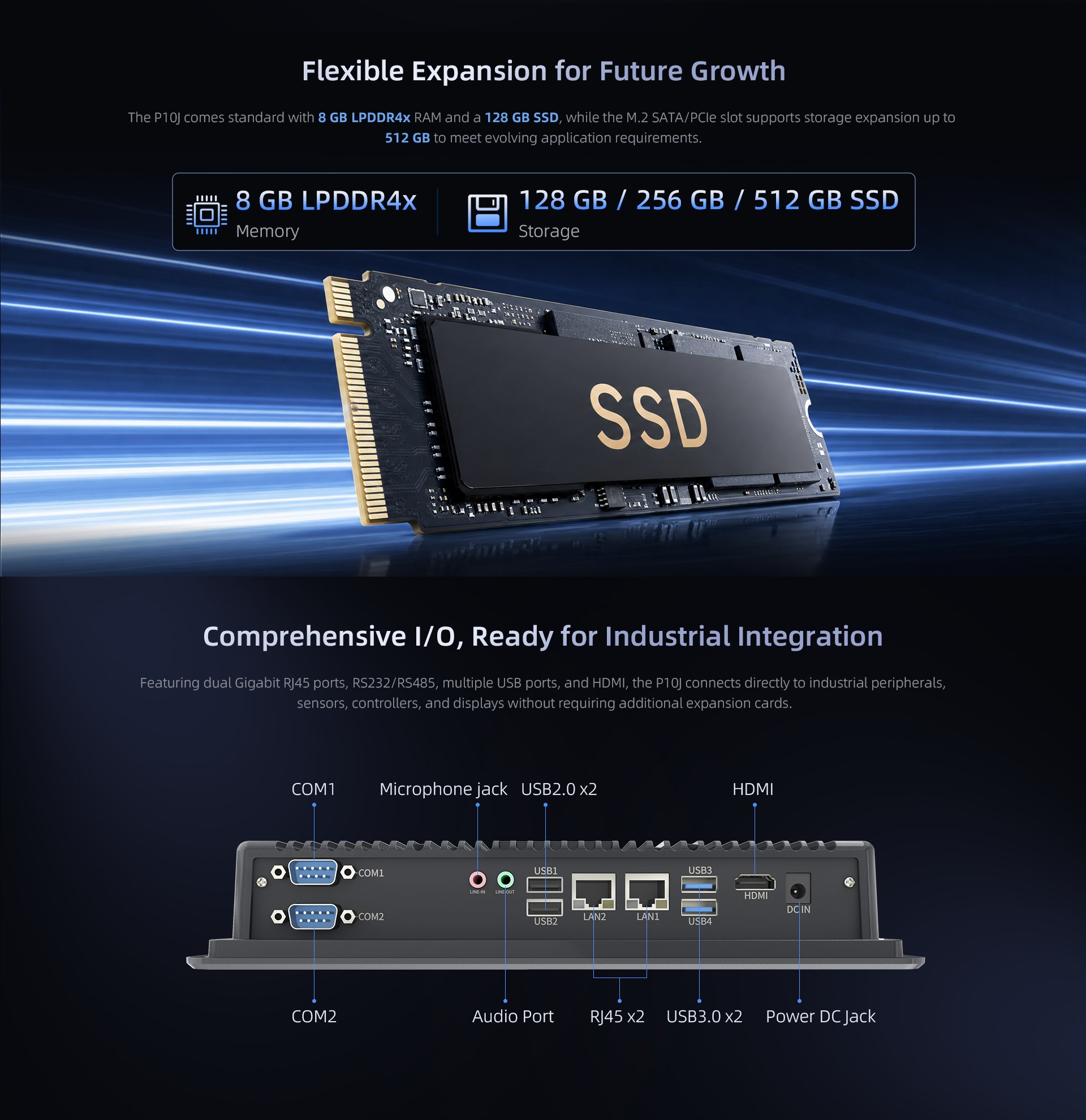

The P10J comes standard with 8GB LPDDR4x RAM and a 128GB SSD, while the M.2 SATA/PCIe slot supports storage expansion up to 512GB to meet evolving application requirements.

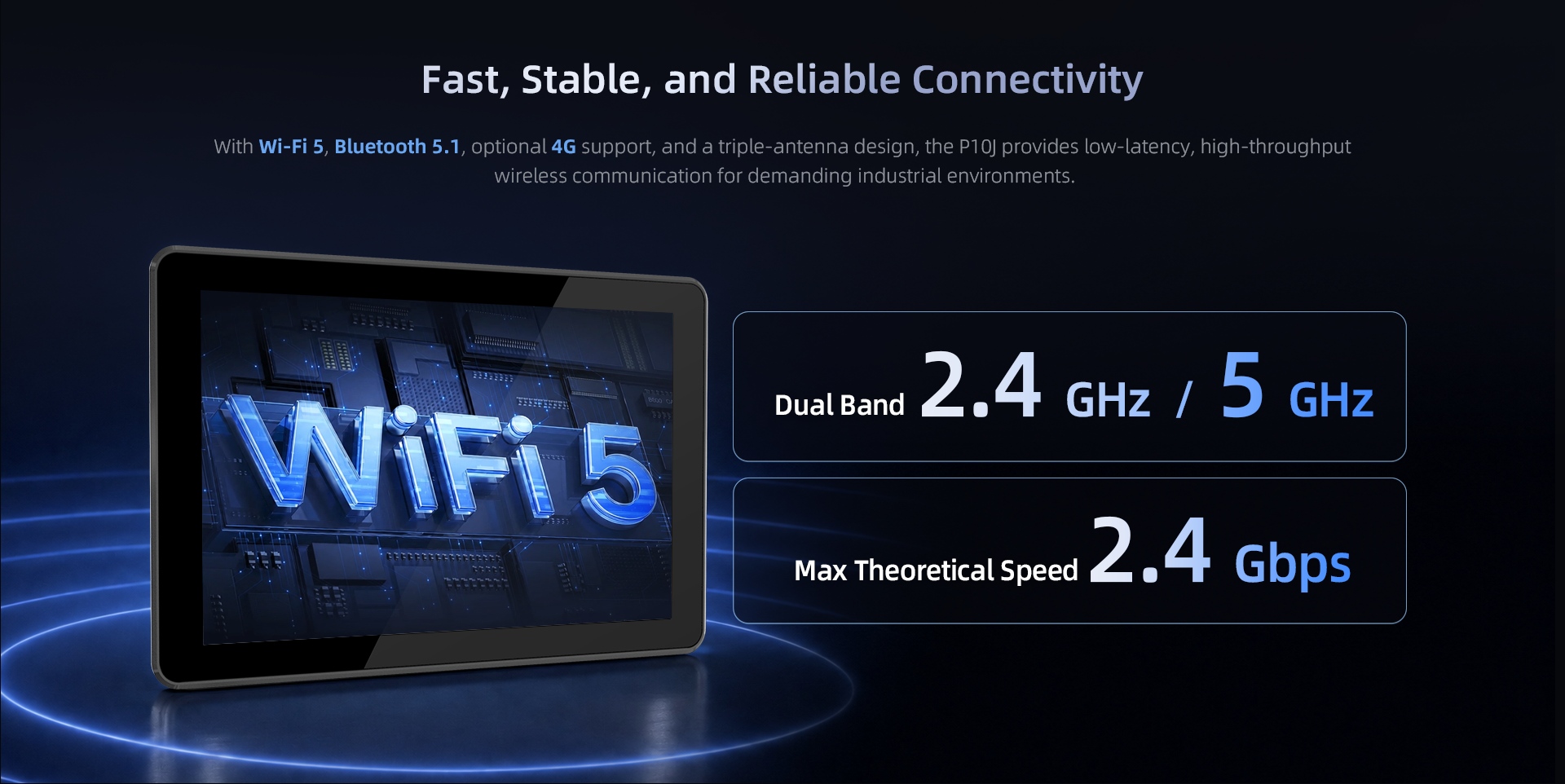

With Wi-Fi 5, Bluetooth 5.1, optional 4G support, and a triple-antenna design, the P10J provides low-latency, high-throughput wireless communication for demanding industrial environments.

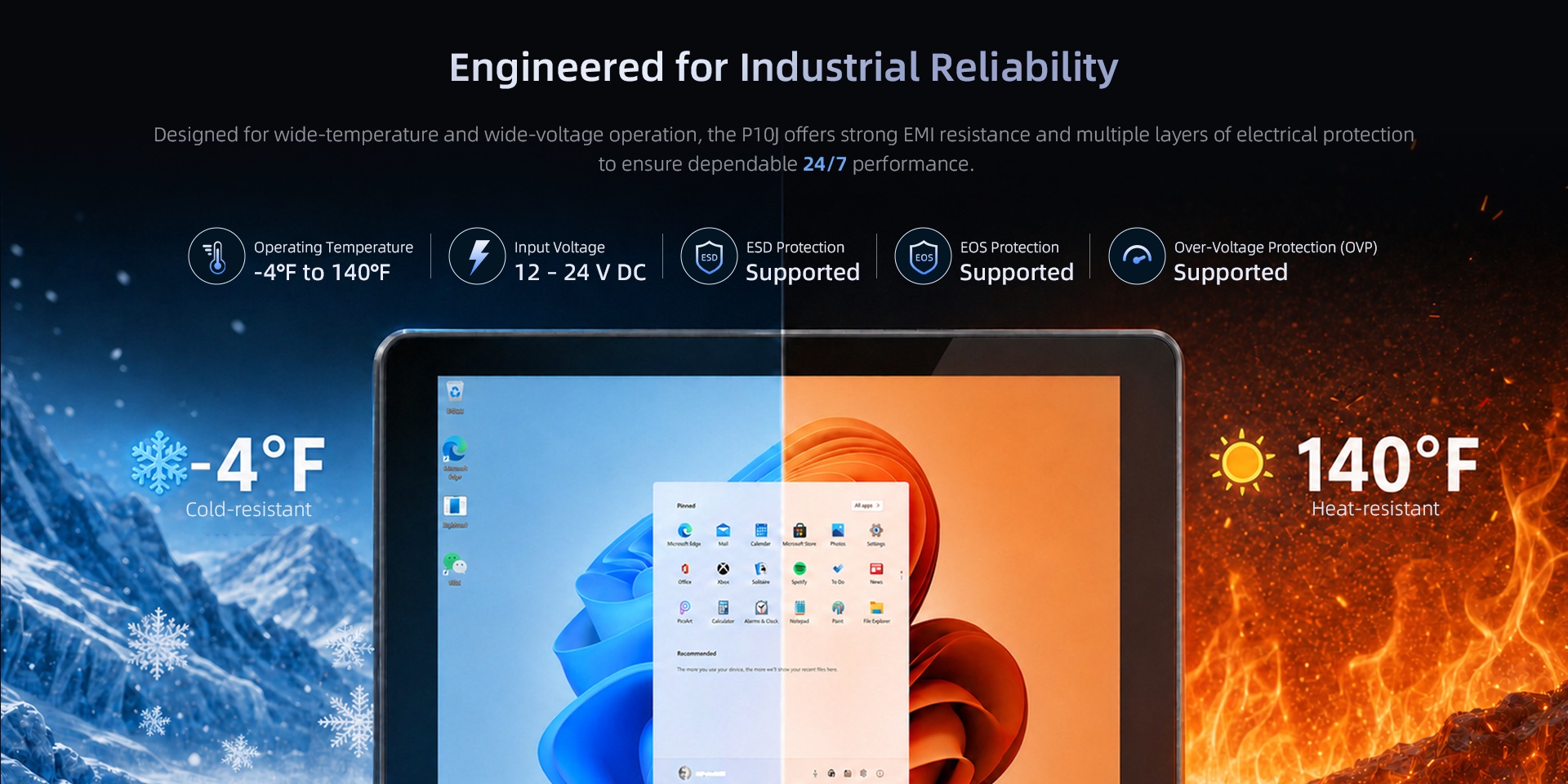

Designed for wide-temperature and wide-voltage operation, the P10J offers strong EMI resistance and multiple layers of electrical protection to ensure dependable 24/7 performance.

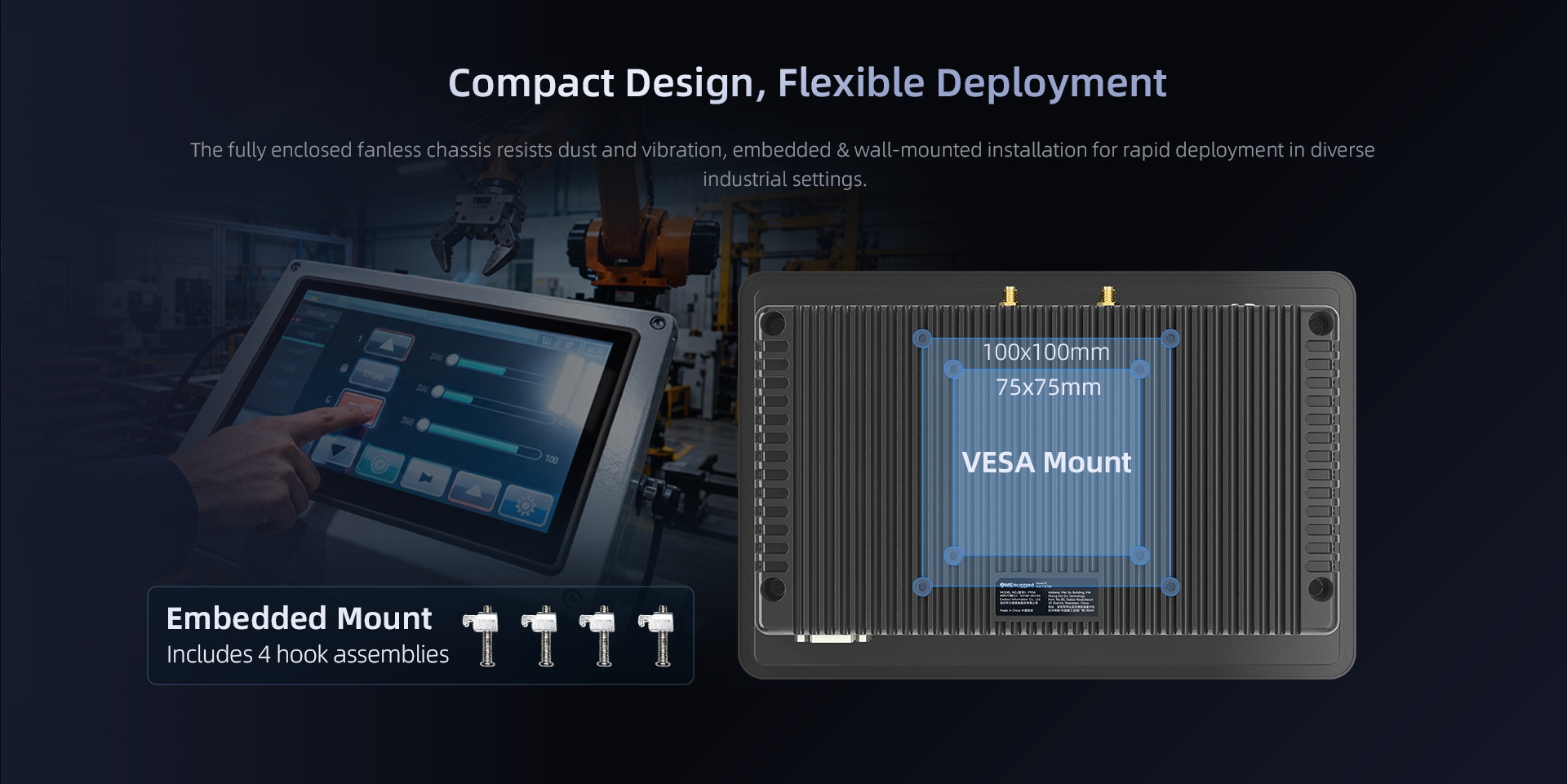

The fully enclosed fanless chassis resists dust and vibration, supporting embedded, wall-mounted, and VESA installations for rapid deployment in diverse industrial settings.

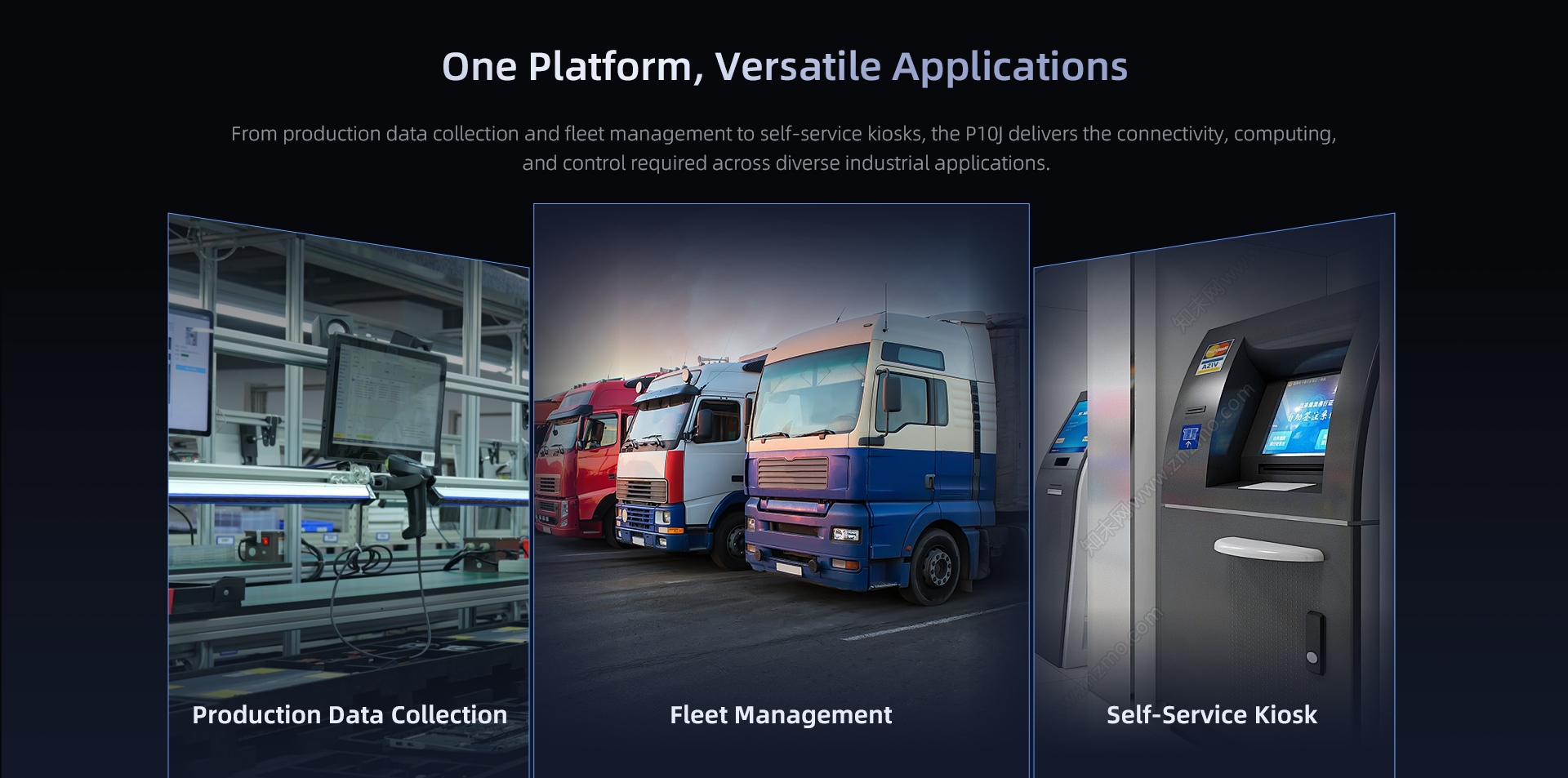

From production data collection and fleet management to self-service kiosks, the P10J delivers the connectivity, computing, and control required across diverse industrial applications.
Adapter, Hook assembly, Wi-Fi antenna
